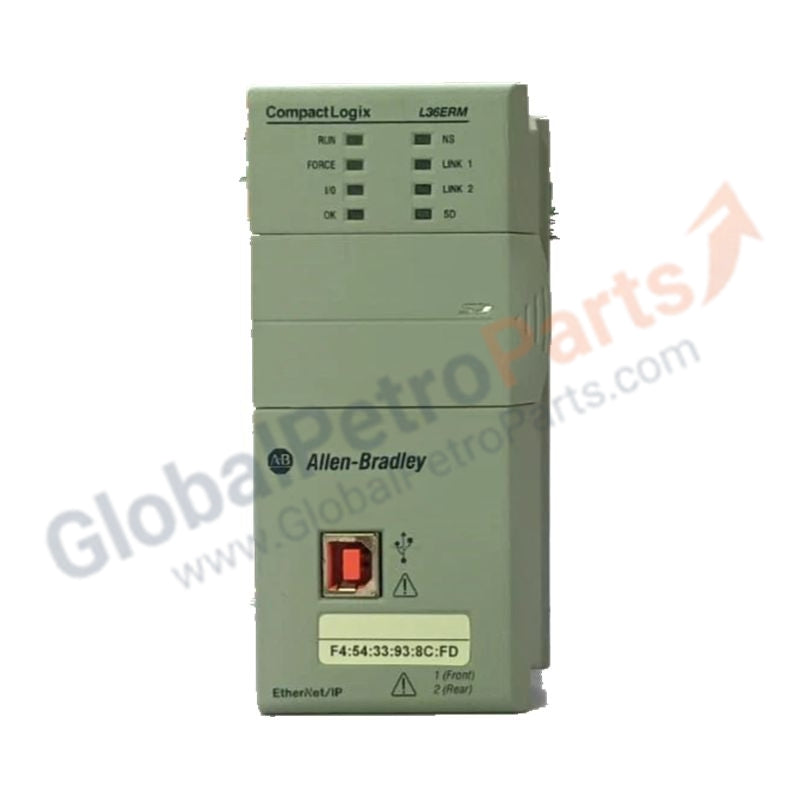

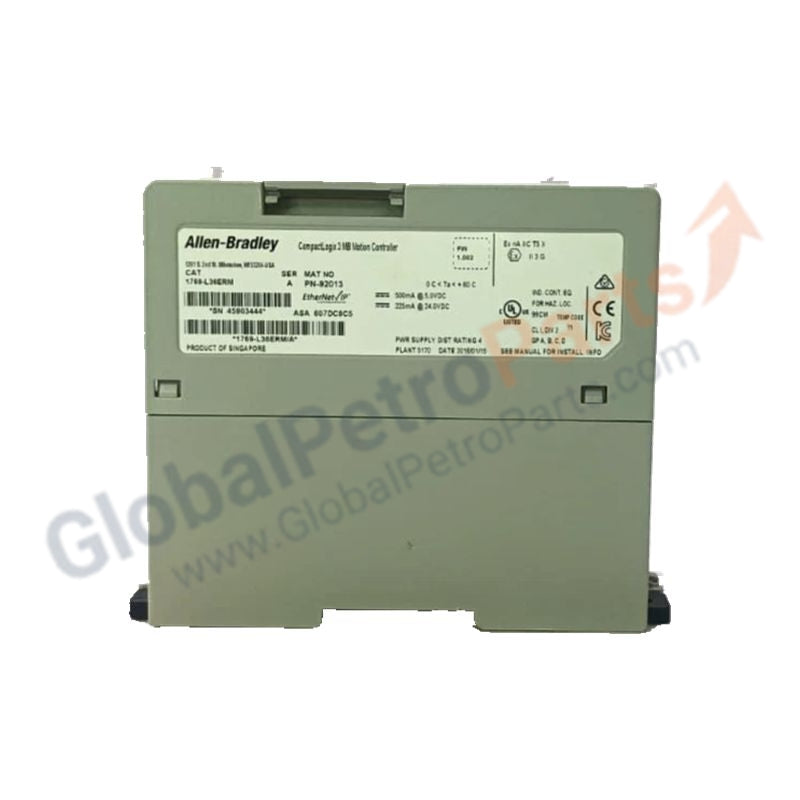

Allen Bradley 1769-L36ERM CompactLogix Ethernet Controller

Product Description

The 1769-L36ERM is a high-performance CompactLogix 5370 L3 controller with integrated motion control over EtherNet/IP. Designed for multi-axis motion applications, this CPU supports up to 8 axes of Integrated Motion and provides dual Ethernet ports for flexible network topologies, including Device Level Ring (DLR) for enhanced system resiliency. With 3 MB of user memory and a battery-less energy storage design, the 1769-L36ERM delivers reliable, maintenance-free operation for demanding industrial automation environments.

Technical Specifications

Key Features

• High-Performance CPU: Handles complex logic and high-density I/O effortlessly.

• Integrated Motion: Supports synchronized control of up to 8 axes without additional motion modules.

• Battery-Free Design: Energy storage module automatically saves volatile memory to SD card, eliminating battery maintenance.

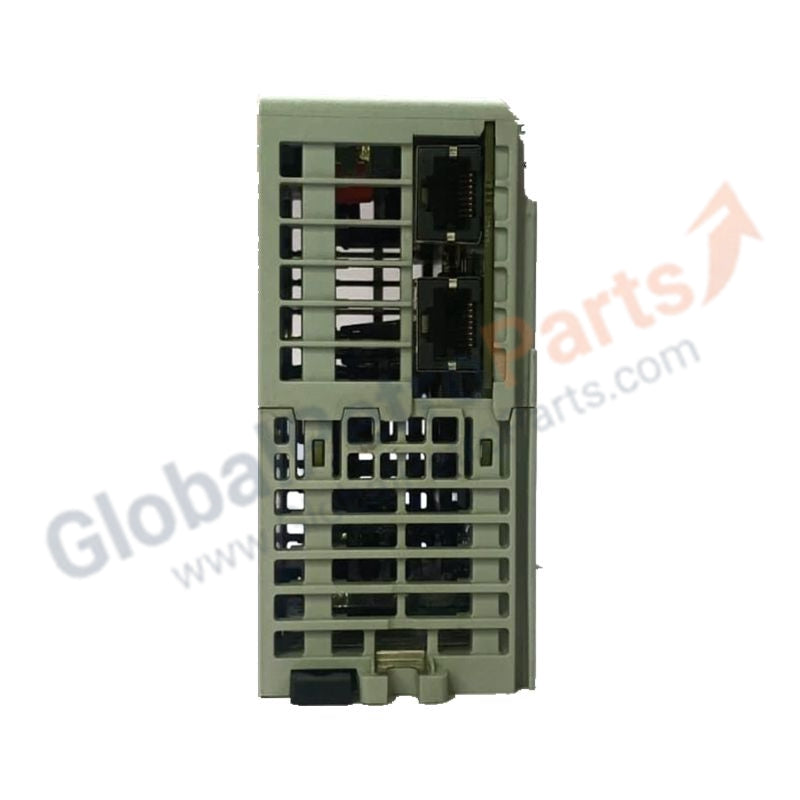

• Dual Ethernet Ports: Enables flexible DLR, linear, or star network topologies for system redundancy.

• Scalable I/O: Manage up to 30 CompactLogix 1769 I/O modules locally for small-to-mid-size control systems.

Industrial Applications

• High-speed pick-and-place robotics

• Complex packaging and bottling lines

• Synchronized conveyor systems

• Multi-axis CNC machines

• Critical processes requiring network resiliency

Frequently Asked Questions

Q: What’s the difference between the L36ERM and L33ERM?
A: The 1769-L36ERM offers 3 MB memory versus 2 MB on the L33ERM and supports up to 48 EtherNet/IP nodes, compared to 32 for the L33ERM, making it suitable for larger, more node-intensive systems.

Q: Does this controller require a battery?
A: No. The L36ERM uses an internal energy storage module to retain program data and SD card contents during power loss.

Q: How many motion axes can it control?
A: It supports up to 8 axes of Integrated Motion on EtherNet/IP without additional motion modules.
