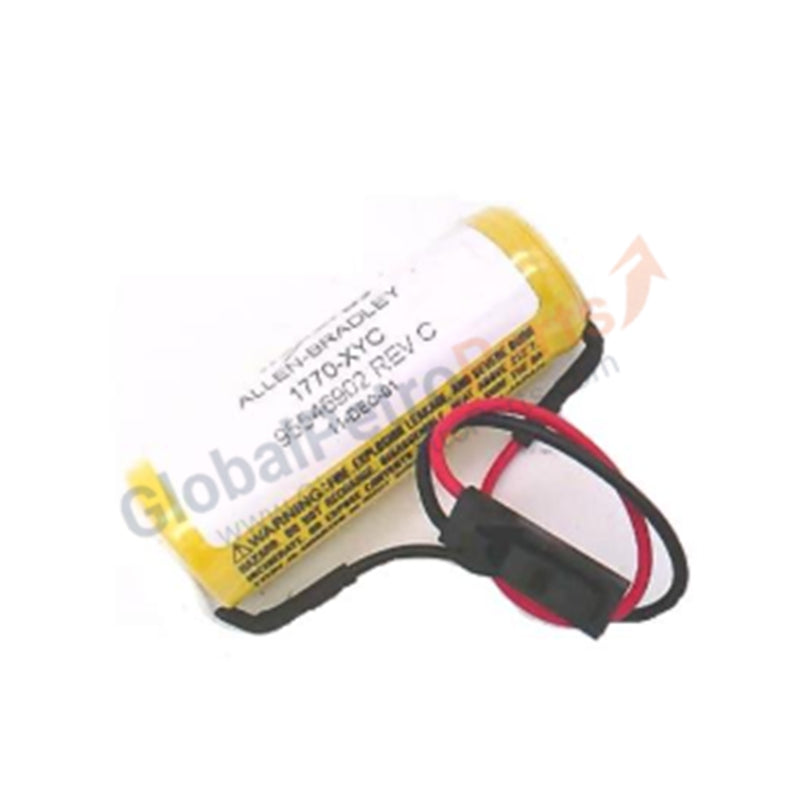

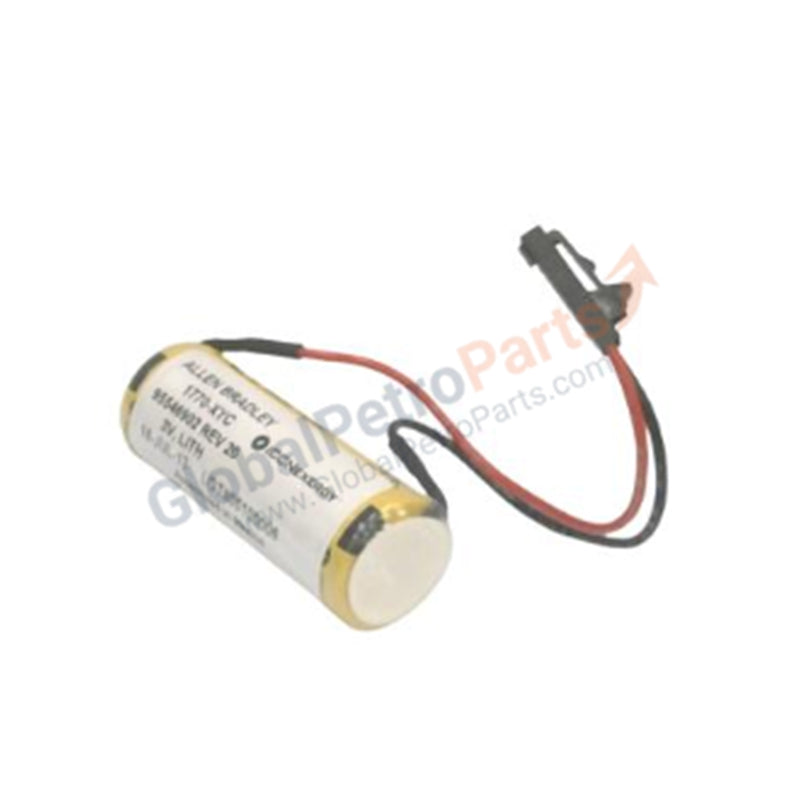

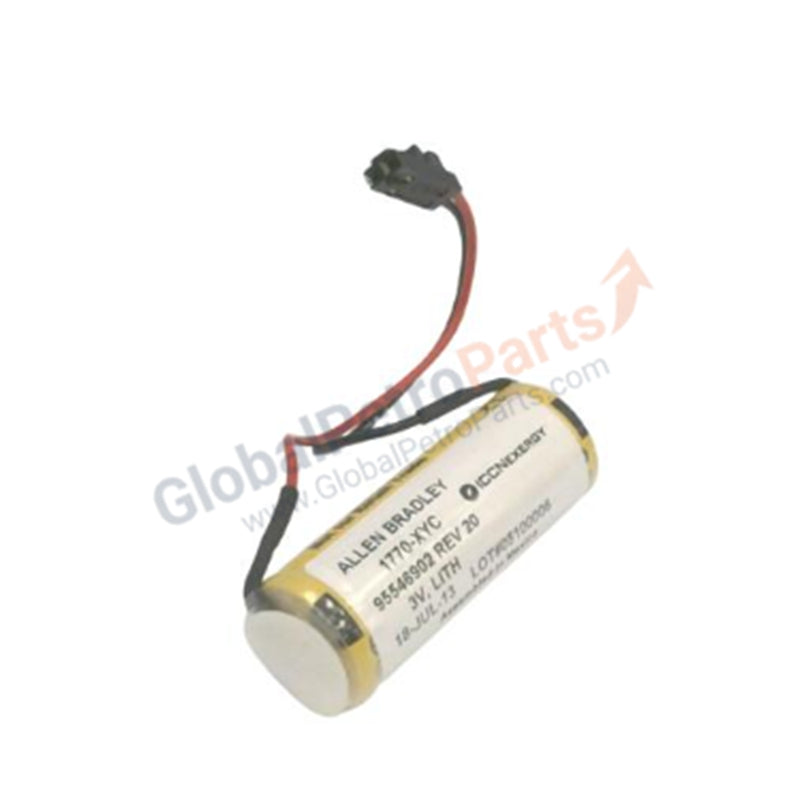

Allen Bradley 1770-XYC PLC-5 | Lithium Backup Battery Module

Product Description

The Allen Bradley 1770-XYC is a lithium battery module designed for PLC-5 processors, providing reliable backup power and memory retention for critical automation systems. Compact and lightweight, this battery ensures stable operation in demanding industrial environments.

Technical Specifications

• Manufacturer: Allen Bradley (Rockwell Automation)

• Product Line: PLC-5

• Part Number: 1770-XYC

• Module Type: Lithium battery for PLC-5 processors

• Weight: 0.13 lbs (0.06 kg)

• Nominal Input Voltage: 120 V AC or 220/240 V AC

• Input Voltage Range: 105–225 V AC or 205–250 V AC

• Maximum Real Input Power: 20 W

• Maximum Apparent Input Power: 37 VA

• Maximum Transformer Load: 50 VA

• User Output Current:

• 300 mA at 5 V DC

• 150 mA at ±15 V DC

• Backplane Output Current: Not applicable

• Frequency Range: 50–440 Hz

• Fuse Requirement: Not applicable

• Cabling: Not applicable

• Parallel Operation: Not supported

• Location: Stand-alone installation

Application Scenarios

• PLC-5 Processor Backup: Ensures memory retention and stable operation during power interruptions

• Industrial Automation Systems: Provides reliable support for legacy Allen Bradley PLC-5 controllers

• Maintenance and Retrofit Projects: Ideal for replacing or upgrading existing PLC-5 battery modules

FAQ

Q: What systems is the 1770-XYC compatible with?  A: It is specifically designed for Allen Bradley PLC-5 processors.

Q: Does this module require external cabling or fuses?  A: No, it is a stand-alone battery module without additional cabling or fuse requirements.

Q: What is the typical output current capacity?  A: 300 mA at 5 V DC and 150 mA at ±15 V DC.
