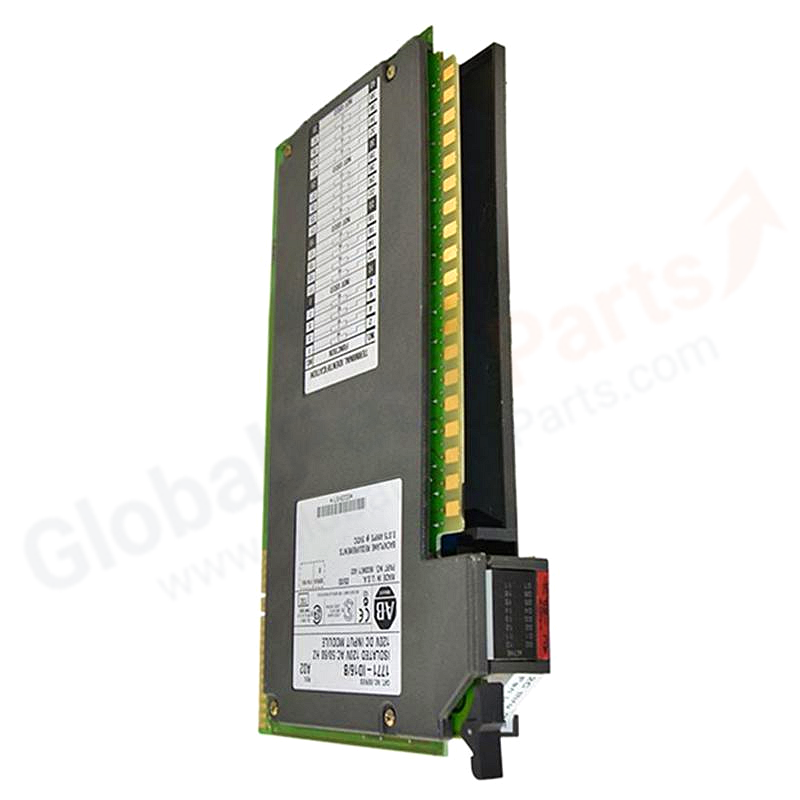

Allen-Bradley 1771-ID16 16-point Isolated Digital Input Module

Product Overview

The Allen-Bradley 1771-ID16 is a 16-point isolated digital input module from the PLC-5 1771 Universal I/O family. It accepts 120V AC/DC signals with individual channel isolation for enhanced safety and noise immunity in industrial automation environments. Each input features built-in filtering to suppress contact bounce and transient spikes, making it ideal for machine control, safety systems, and process monitoring applications.

Key Specifications

• Input Channels: 16 individually isolated digital inputs
• Voltage Category: 120V AC/DC
• AC Operating Range: 77–138 VAC
• DC Operating Range: 105–138 VDC
• Input ON Current (min): 6.0 mA @ 74V AC
• Input OFF Voltage (max): 45V AC / 66V DC
• Signal Delay (ON): Typical 1 ms
• Signal Delay (OFF): 9 ms (DC) / 9–18 ms (AC)
• Input Filtering: Factory-set 9 ms
• Backplane Current: 75 mA
• Wiring Arm: 1771-WN
• Operating Temperature: 0–60 °C (32–140 °F)
• Dimensions: 3.5 × 6.5 × 2.0 in (89 × 165 × 51 mm)
• Weight: 2.3 lb
• Certifications: UL, CE, CSA, Marine, C-TICK

Features & Benefits

• Individual Channel Isolation: Each of the 16 inputs is electrically separated, preventing ground loops and enhancing safety in multi-phase installations
• Dual AC/DC Compatibility: Handles both AC and DC field signals within the same module, reducing inventory requirements
• Built-in Noise Filtering: Factory-set 9 ms filter suppresses contact bounce and transient disturbances for reliable signal detection
• RIUP Support: Supports Removal and Insertion Under Power for maintenance without system shutdown
• Status Indicators: LED indicators provide at-a-glance input status for quick diagnostics
• Conformal Coating: Protects internal electronics from moisture, dust, and chemical contaminants

Applications

• Machine control and safety interlocks
• Limit switch and proximity sensor monitoring
• Annunciator panels and pilot device interfaces
• Process control discrete signal acquisition
• Multi-phase power system monitoring

Installation Guide

1. Chassis Preparation: Install the 1771-ID16 into any compatible 1771-series I/O chassis (e.g., 1771-A1B, 1771-A4B). Ensure the chassis power supply has adequate capacity.

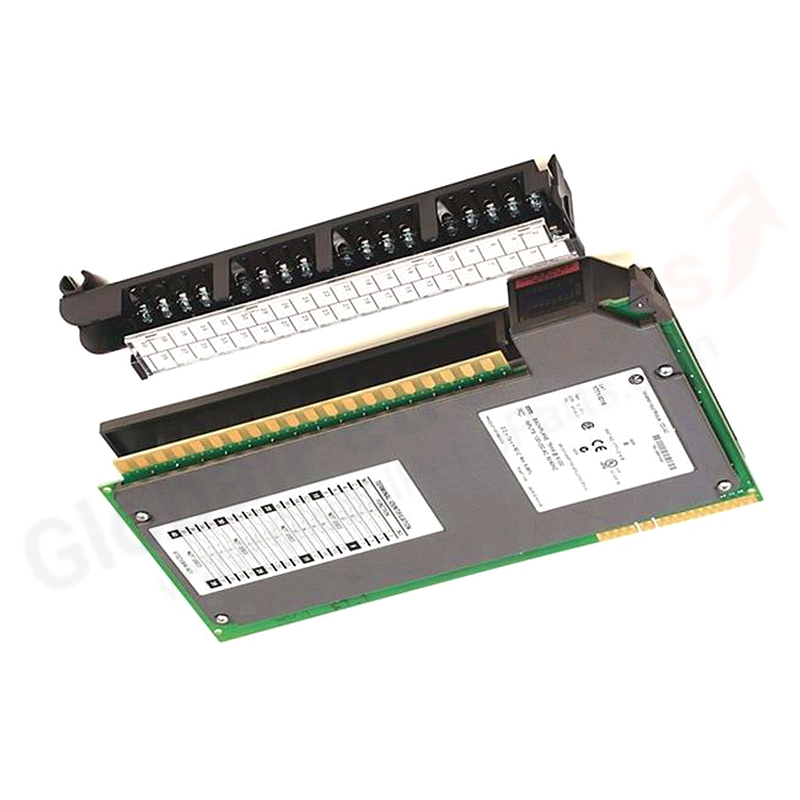

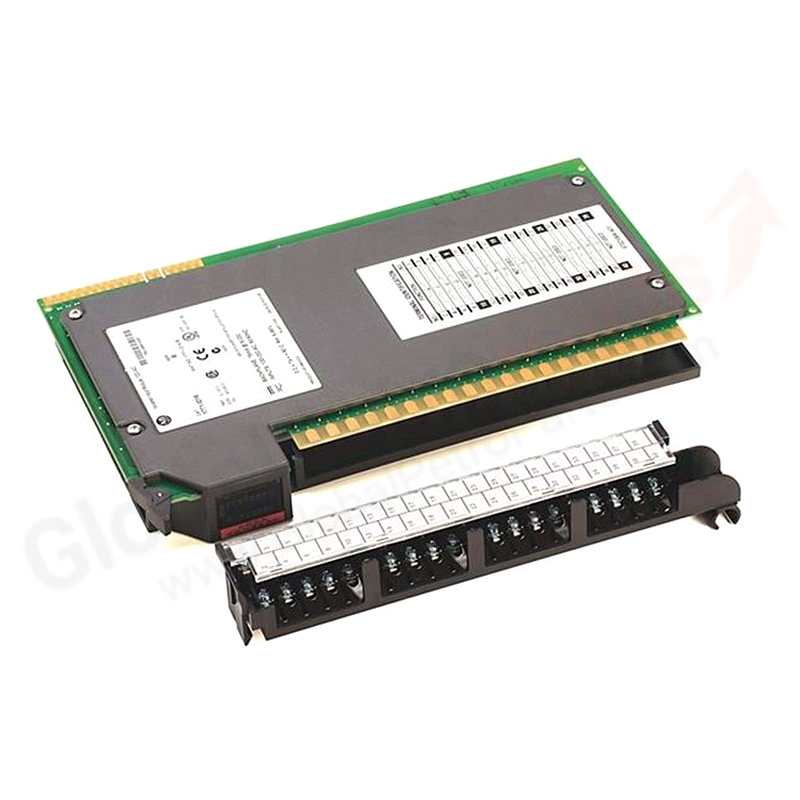

2. Wiring Arm Connection: Attach the 1771-WN wiring arm to the module before inserting it into the chassis. The wiring arm provides screw-terminal connections for field wiring.
3. Field Wiring: Connect AC or DC field devices to the appropriate input terminals. Verify voltage compatibility (77–138V AC or 105–138V DC) before energizing.
4. Grounding: Ensure proper cabinet grounding per NEC and local electrical codes. Use shielded cables for long wire runs in high-noise environments.
5. Power-up Sequence: Apply chassis power and verify input status LEDs illuminate correctly when field devices are activated.

FAQ

Q: Can the 1771-ID16 accept 24V DC signals?
A: No. The 1771-ID16 is designed for 120V AC/DC signals (105–138V DC range). For 24V DC applications, use the 1771-IQ16 or 1771-IBD module.

Q: Is the 1771-ID16 compatible with ControlLogix systems?
A: No. The 1771-ID16 is designed specifically for PLC-5 systems and 1771 I/O chassis. It is not natively compatible with ControlLogix or CompactLogix without specialized migration hardware.

Q: What is the recommended replacement for new installations?
A: Rockwell Automation recommends migrating to ControlLogix (1756-IB16I for isolated DC inputs) or CompactLogix platforms for new designs.

Q: Can I mix AC and DC inputs on the same module?
A: Yes. The 1771-ID16 accepts both AC and DC signals simultaneously across its 16 isolated channels, provided each input stays within the specified voltage ranges.

Selection Tips

• Verify your field device voltage (AC vs. DC) and ensure it falls within the 77–138V AC or 105–138V DC range
• Calculate total backplane current draw including all modules to ensure power supply adequacy
• For high-noise environments, specify the 1771-ID16 over non-isolated alternatives for superior noise immunity
• Always order the 1771-WN wiring arm as it is required for field connections
• Consider future migration path to ControlLogix if system expansion is planned
