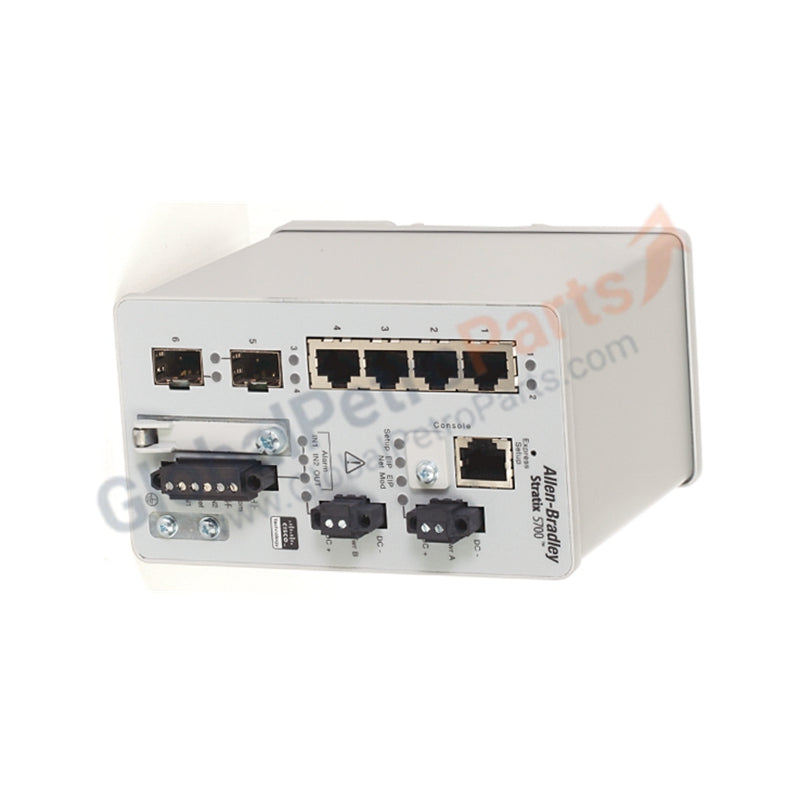

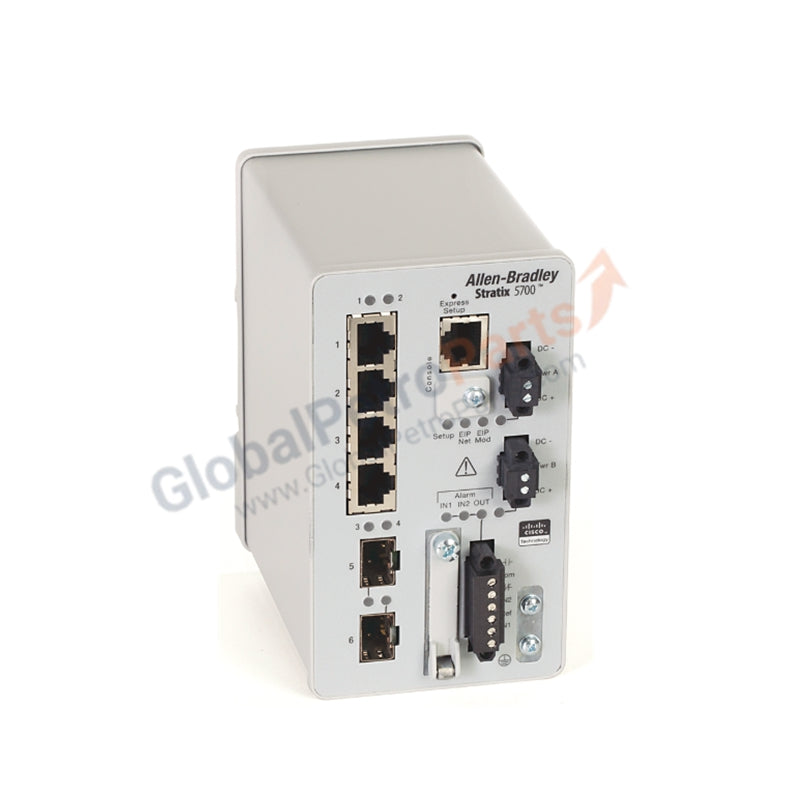

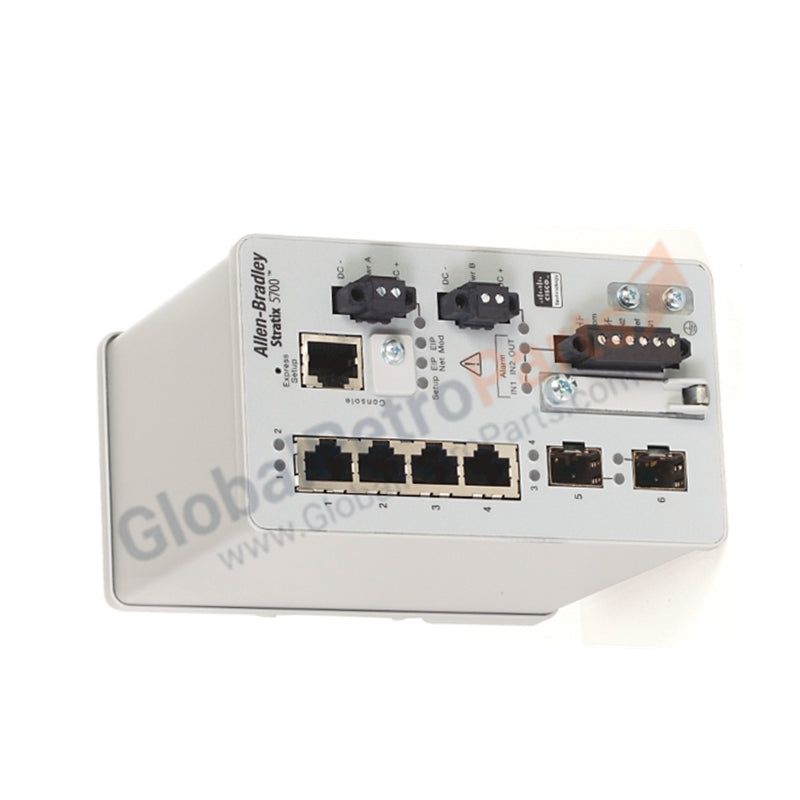

Allen Bradley 1783-BMS06SL Stratix 5700 Managed Industrial Ethernet Switch

Product Overview

The Allen Bradley 1783-BMS06SL functions as a high-performance, managed industrial Ethernet switch within the Stratix 5700 ecosystem. This 6-port base module bridges the gap between field-level device data and enterprise-level information systems. It utilizes Cisco technology to provide robust switching capabilities while maintaining the ease of integration expected in a Rockwell Automation environment. We supply this hardware as a 100% Brand New, original factory unit to ensure your network infrastructure operates with maximum security and zero latency.

Technical Specifications

The 1783-BMS06SL combines copper and fiber connectivity to handle diverse industrial networking topologies.

Engineering Advantages

• Fiber-Optic Versatility: The two SFP (Small Form-factor Pluggable) slots allow for long-distance communication over fiber optics. This solves the challenge of electrical noise and signal degradation over long distances that standard copper cables cannot handle.

• Premier Integration via Studio 5000: This switch provides Add-On Profiles (AOPs) that allow engineers to configure and monitor the switch directly within the Studio 5000 environment. This integration eliminates the need for separate IT tools for PLC programmers.

• Simplified Device Replacement: The module supports the use of an SD card (optional) to store configuration data. If a unit fails, a technician simply inserts the SD card into a new 1783-BMS06SL, restoring the network settings instantly without manual reprogramming.

• Compact DIN Rail Footprint: The vertical design optimizes rail space in crowded control cabinets. The ruggedized metal housing dissipates heat efficiently, ensuring stable performance even when mounted alongside high-heat components like VFDs or power supplies.

• Network Security Protocols: The managed software layer provides port security and VLAN segmentation. This prevents unauthorized access to the control network and ensures that high-bandwidth traffic does not interfere with critical real-time I/O communication.

FAQs

• Is the 1783-BMS06SL provided in its original packaging?

  Yes. We only ship 100% Brand New units in the original Allen Bradley factory box. All seals remain intact to guarantee product authenticity and warranty status.

• Does this switch support Power over Ethernet (PoE)?

  No. The 1783-BMS06SL is a standard managed switch focusing on data transmission. If your application requires powering IP cameras or wireless access points, you would require a Stratix model with "P" in the suffix (e.g., 1783-BMS10CGP).

• What are the benefits of the 2 SFP ports?

  The SFP ports allow you to customize your uplink media. Depending on the SFP transceiver you install, you can connect this switch to your backbone via multi-mode or single-mode fiber, effectively isolating the switch from EMI/RFI interference.

• What is the "Lite" software feature set?

  The "SL" in the part number indicates a "Lite" managed software version. It provides essential managed features like VLANs, IGMP snooping, and port mirroring, making it an economical choice for cell-level networking without the complexity of full Cisco IOS command-line requirements.
