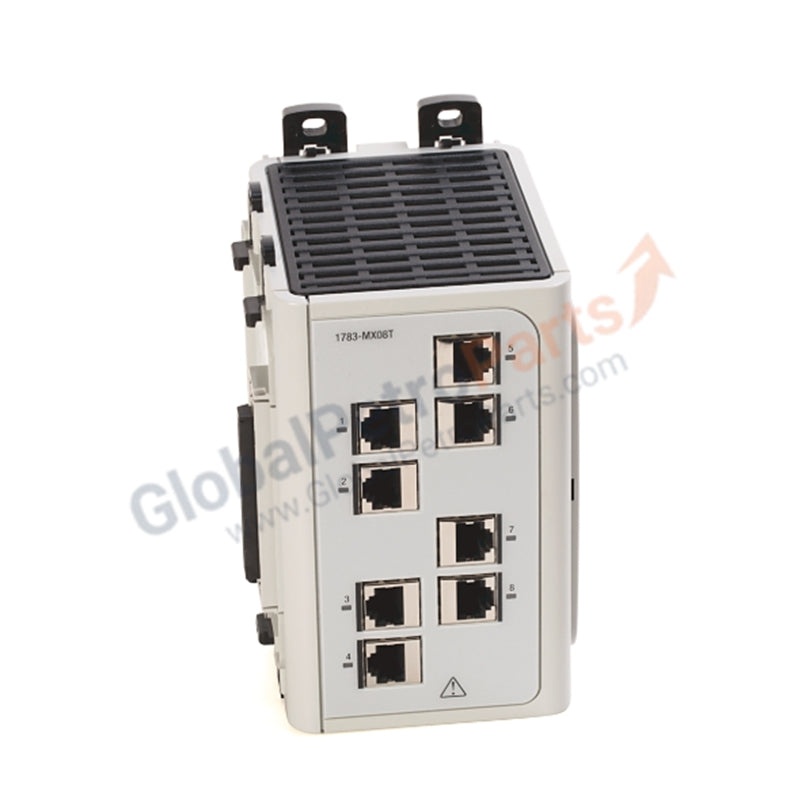

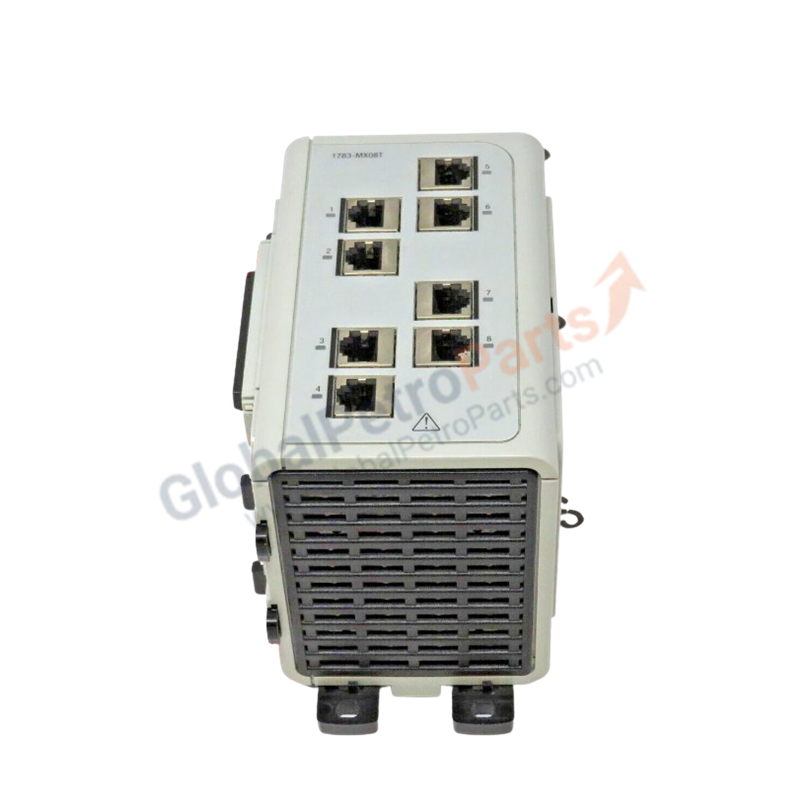

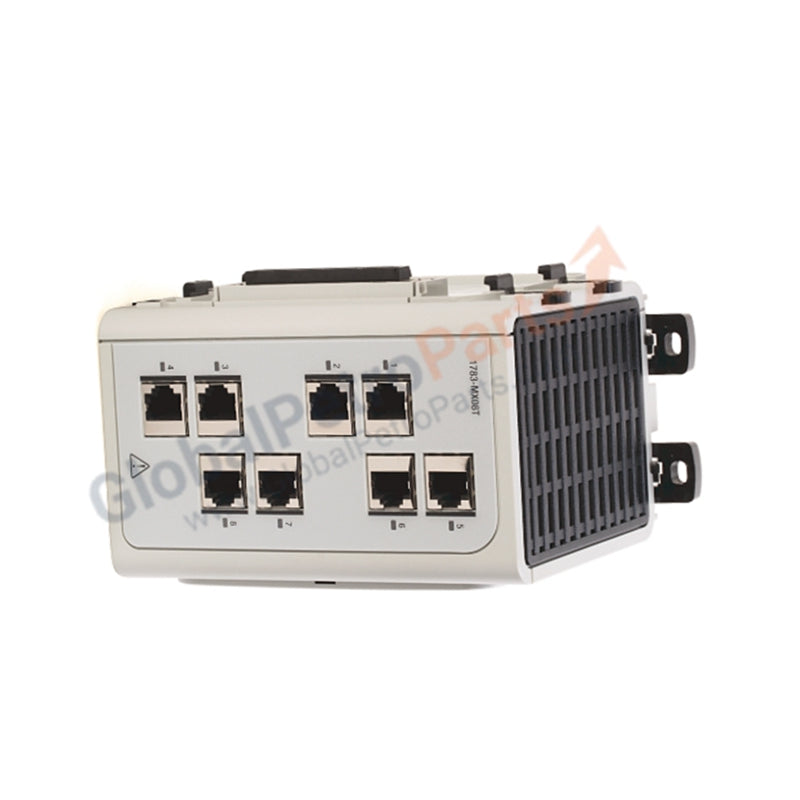

Allen-Bradley 1783-MX08T Stratix Managed Ethernet Switch

Configured for high-performance data packet switching in industrial control networks, the Allen-Bradley 1783-MX08T (1783-MX08T Managed Ethernet Switch) provides direct physical/electrical execution of managed Ethernet traffic management.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 1783-MX08T is designed to integrate into industrial EtherNet/IP architectures, supporting features that optimize deterministic network communication. The switch supports managed protocols which allow for prioritized traffic handling (QoS), essential for maintaining low latency in control loops. The backplane bus communication velocity is maintained through the switch logic, ensuring that time-critical control data takes precedence over standard TCP/IP traffic. Firmware flash compatibility is supported for feature updates and security patching, which should be managed through the native configuration interface to prevent network configuration drift.

Frequently Asked Questions (FAQ)

Q: What is the purpose of the CompactFlash memory support?

A: The CompactFlash slot is utilized for storing switch configurations, firmware images, and diagnostic logs. It enables rapid replacement of the switch by allowing the configuration file to be transferred from the card to a new unit without requiring manual re-programming.

Q: Is the 1783-MX08T suitable for direct mounting in harsh environments?

A: The switch features an open-style enclosure with an operating range of -40 to 60 deg C and is rated for 20 G shock and 2 G vibration. It must be installed inside an appropriately rated control cabinet to protect against moisture and contaminants, as the unit is not IP-rated for direct exposure.

Field Installation Guidelines

• Mounting: The switch is designed for mounting on standard 35 mm DIN rails. Ensure the rail is securely attached to the enclosure backplane. The orientation must allow for adequate airflow around the unit to ensure passive heat dissipation.

• Grounding: A dedicated chassis ground connection must be established from the switch to the cabinet common ground point using low-impedance cabling. This is mandatory to maintain the 75 V isolation rating and to prevent electromagnetic noise from affecting the data signal integrity.

• Cabling: Use Category 5e or higher shielded twisted pair (STP) cabling for all RJ45 connections to mitigate EMI/RFI in high-noise industrial environments. Ensure that the cable bend radius is maintained to prevent physical damage to the conductors.

• Power: Ensure the 3.3 V DC input source is regulated and filtered. The 2.0 A inrush current must be considered when sizing the power supply circuit to prevent voltage dips during switch startup.
