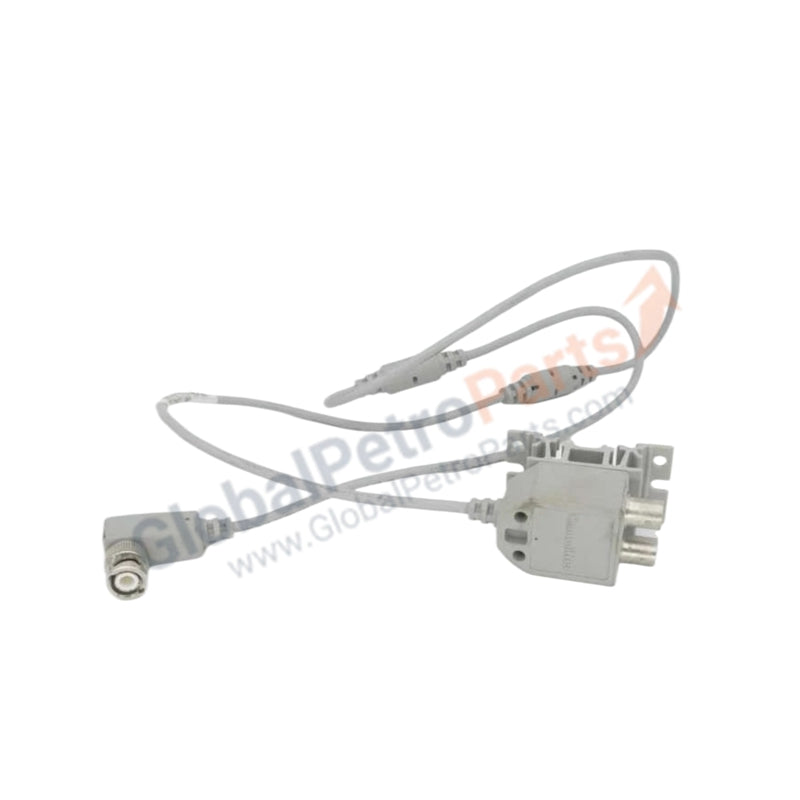

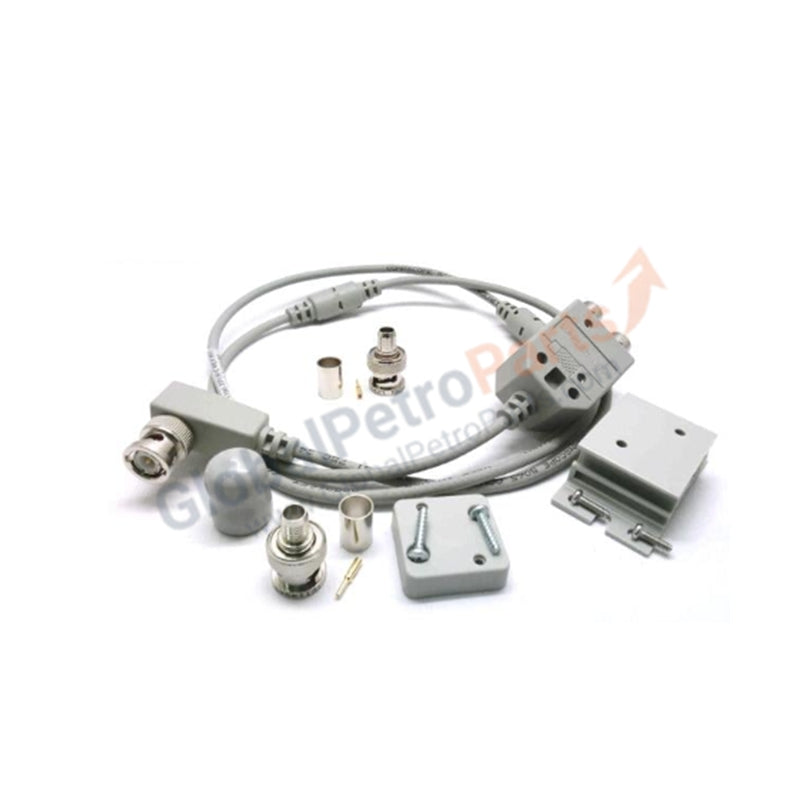

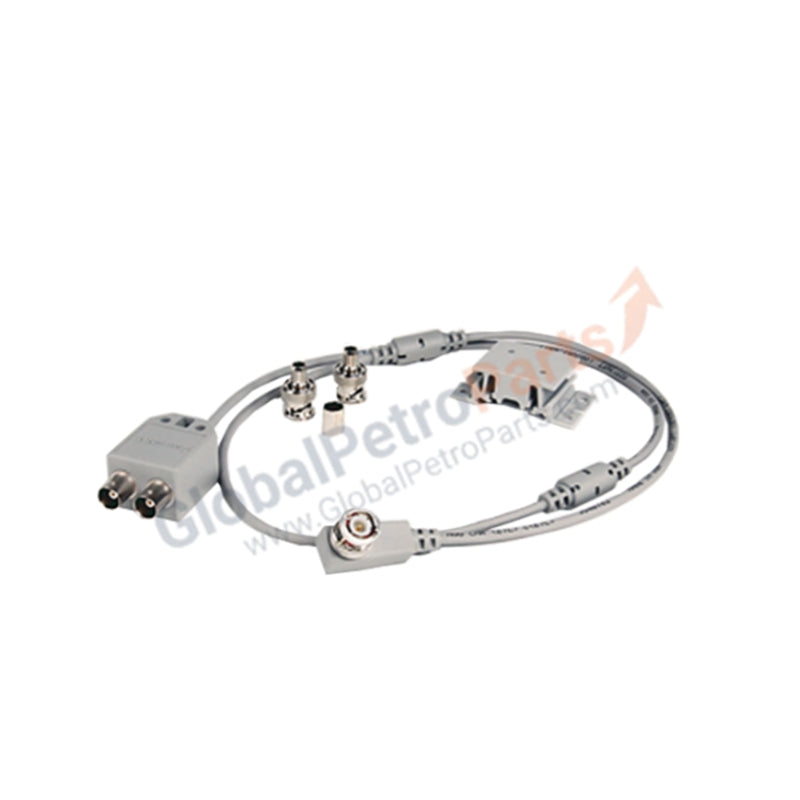

Allen Bradley 1786-TPYR ControlNet Right-Angle Y-Tap Connector

Product Description

The Allen Bradley 1786-TPYR is a ControlNet coaxial tap cable designed with a right-angle Y‑tap configuration and BNC connector. With a 1‑meter cable length, IP20 enclosure rating, and robust environmental tolerance, it provides secure and reliable connections for ControlNet networks. This component is engineered for distributed control systems requiring dependable coaxial connectivity.

Technical Specifications

• Manufacturer: Allen Bradley

• Product Line: ControlNet Accessories

• Part Number: 1786-TPYR

• Product Type: Right‑Angle Y‑Tap Connector

• Network Compatibility: ControlNet

• Cable Length: 1 meter

• Connector Type: BNC

• Enclosure Rating: IP20

• Operating Temperature: −20 to +70 °C

• Humidity Range: 5–95% RH, non‑condensing

• Mounting Style: Inline coaxial connection

Application Scenarios

• Designed for ControlNet networks requiring secure coaxial connections

• Suitable for distributed automation systems with limited panel space

• Provides reliable signal integrity in industrial environments

FAQ

Q: What type of connector does the 1786-TPYR use?  A: It uses a BNC connector for ControlNet coaxial cabling.

Q: What is the cable length?  A: The cable length is 1 meter.

Q: What is the enclosure rating?  A: The module is rated IP20, suitable for protected industrial environments.
