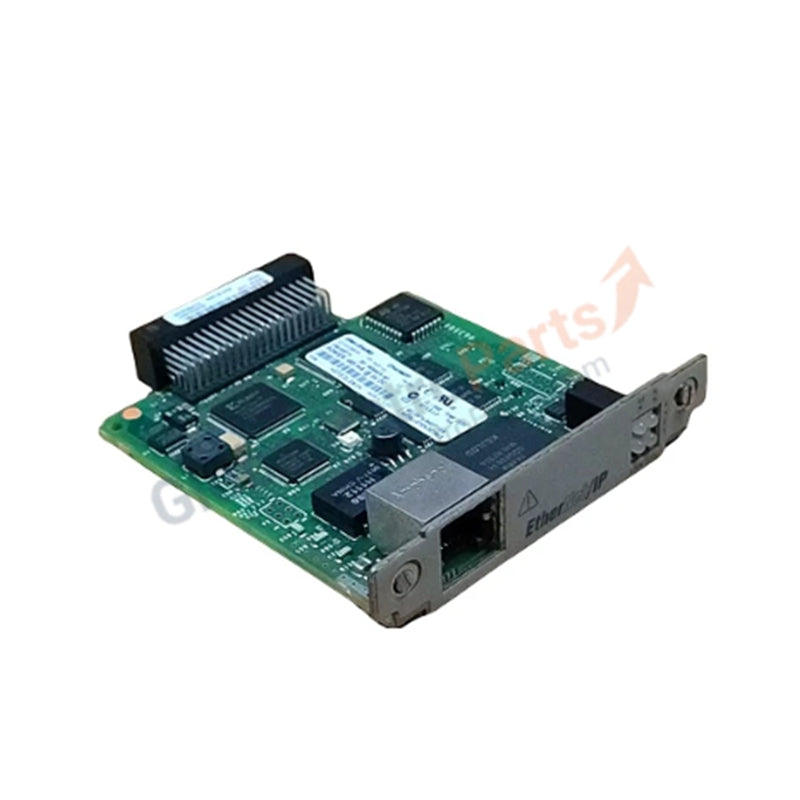

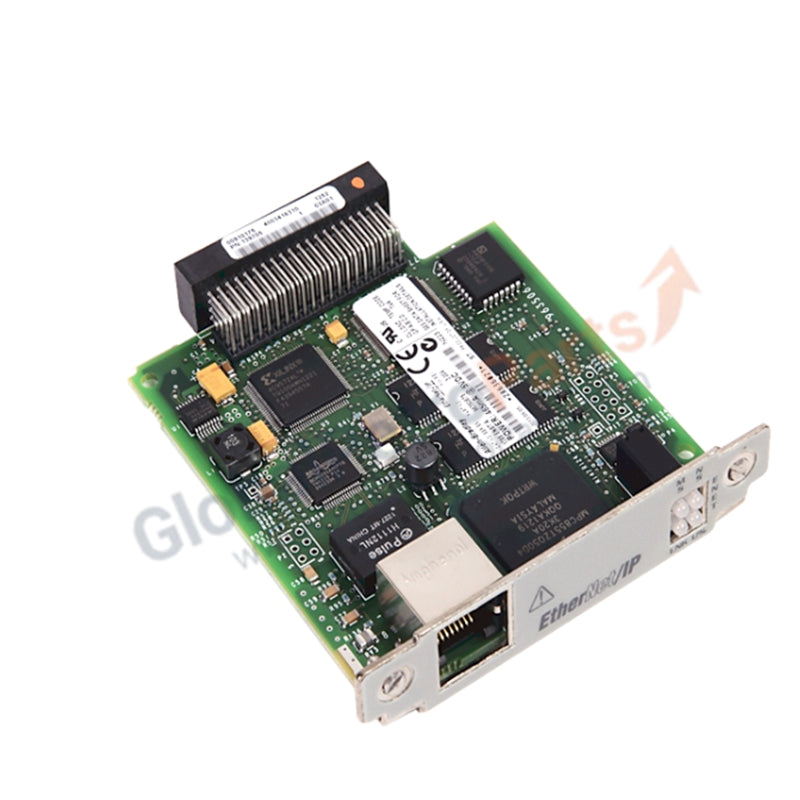

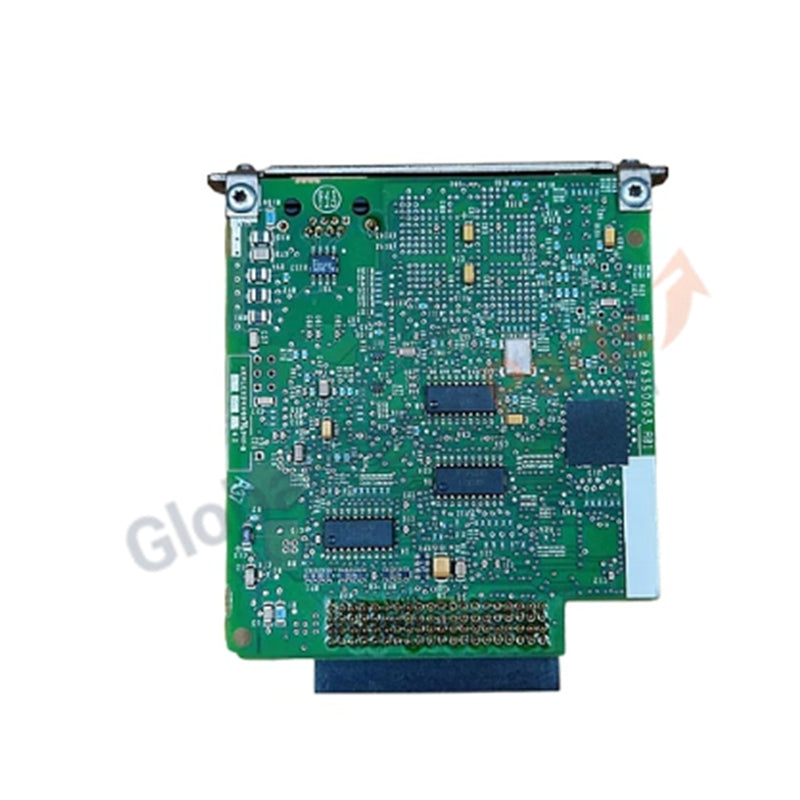

Allen-Bradley 1788-ENBT FlexLogix/DriveLogix Ethernet/IP Communication Card

Overview

The Allen-Bradley 1788-ENBT is an Ethernet/IP daughter communication card designed for FlexLogix and DriveLogix automation platforms. It provides seamless integration into Ethernet/IP networks, enabling high-speed connectivity and reliable data exchange between controllers and industrial devices.

Technical Specifications

• Manufacturer: Allen-Bradley (Rockwell Automation)

• Model/Part Number: 1788-ENBT

• Type: Ethernet/IP Communication Card

• Interface: RJ45 connector, unshielded twisted pair

• Compatible Systems: FlexLogix and DriveLogix controllers

• Category: PLCs / Machine Control

• Subcategory: PLC Module / Rack

• Dimensions: 3.3 in × 1.0 in × 4.0 in (8.3 cm × 2.5 cm × 10.2 cm)

• Weight: 0.1 kg (approx. 1.9 oz)

Key Features

• Provides Ethernet/IP connectivity for FlexLogix and DriveLogix systems

• Compact form factor for easy integration into control racks

• Reliable communication with industrial devices over Ethernet/IP networks

• RJ45 interface for straightforward installation

• Lightweight design for efficient panel space utilization

Applications

• Industrial automation systems requiring Ethernet/IP communication

• FlexLogix and DriveLogix controller integration

• Machine control networks with distributed devices

• High-speed data exchange in PLC-based environments

FAQ

• Q: Which systems are compatible with the 1788-ENBT card?  A: It is designed for FlexLogix and DriveLogix controllers.

• Q: What type of interface does it use?  A: RJ45 connector with unshielded twisted pair cabling.

• Q: What are the physical dimensions of the card?  A: 3.3 in × 1.0 in × 4.0 in.

• Q: How much does the card weigh?  A: Approximately 0.1 kg (1.9 oz).
