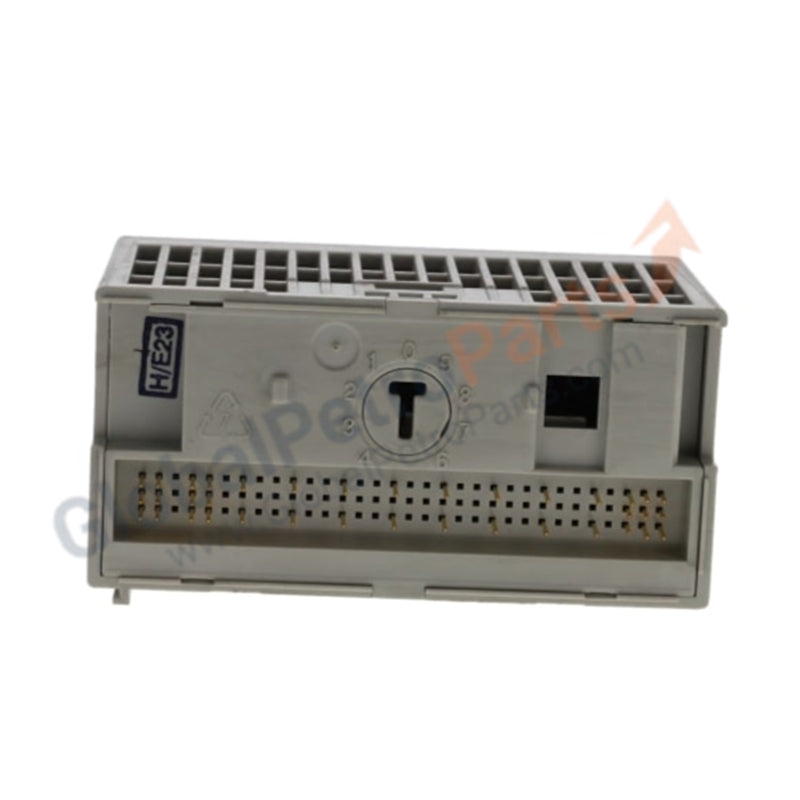

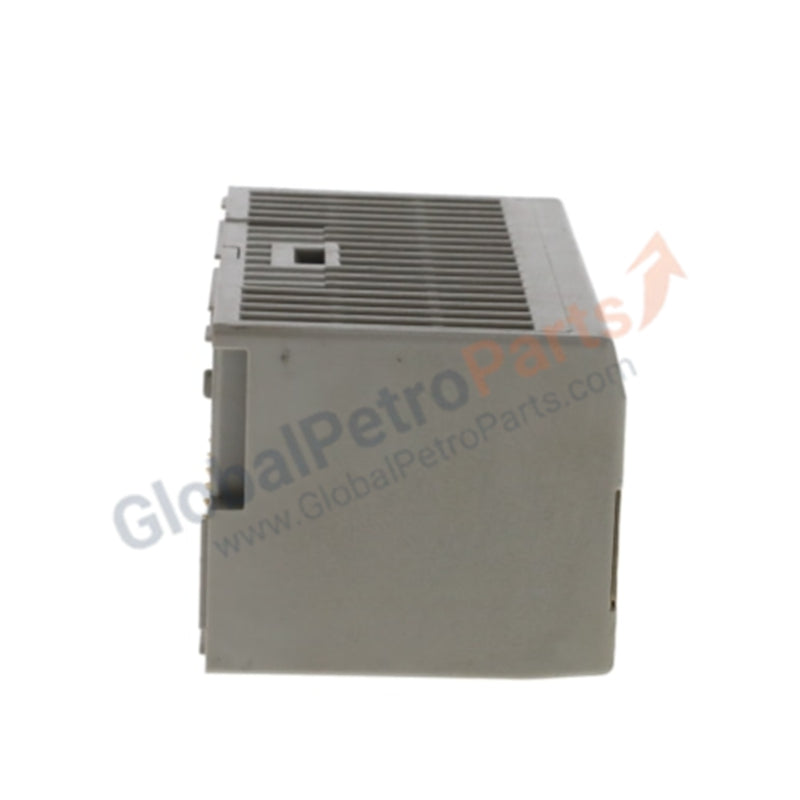

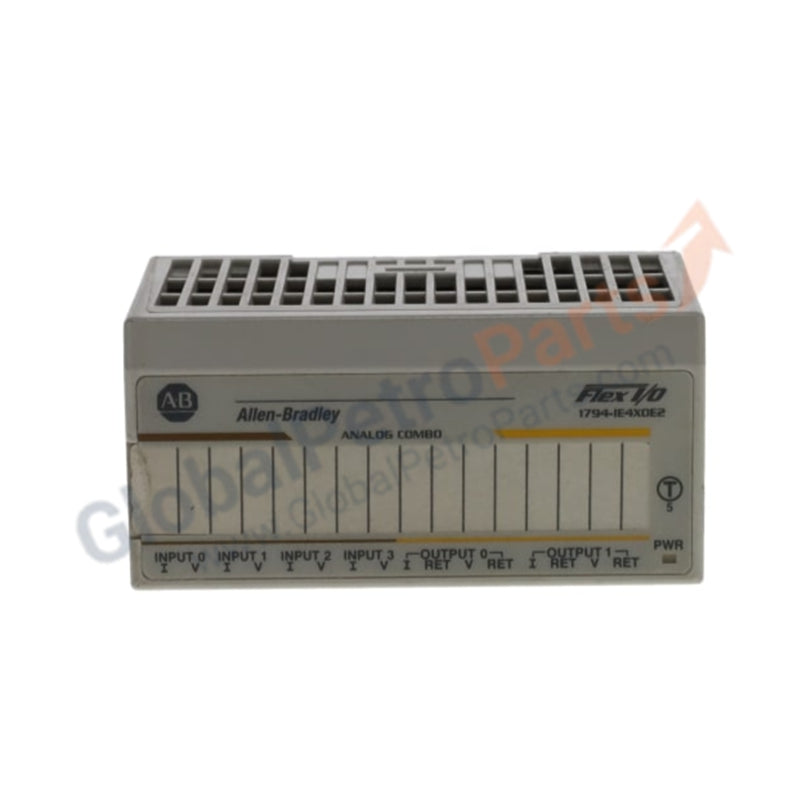

Allen-Bradley 1794-IE4XOE2 Flex I/O Combination Analog I/O Module

Product Overview

The 1794-IE4XOE2 functions as a high-density, cost-effective solution for distributed control systems within the Allen-Bradley Flex I/O family. This combination module integrates four analog inputs and two analog outputs into a single compact footprint, significantly reducing rack space requirements. We supply this unit as 100% Brand New original hardware, ensuring precise signal conversion for critical process variables like pressure, temperature, and flow.

Technical Specifications

Engineering Advantages

• High-Density Footprint: By combining input and output functions on one module, the 1794-IE4XOE2 slashes hardware costs and minimizes the size of your remote I/O enclosure. This makes it an ideal choice for localized control skids where space is at a premium.

• Flexible Terminal Base Compatibility: The module supports multiple terminal bases, including 1794-TB2, -TB3, and -TB3S. This versatility allows engineers to choose between screw-down or spring-clamp terminations depending on the high-vibration or maintenance requirements of the specific site.

• Rapid Maintenance (RIUP): Like other Flex I/O components, this module supports "Removal and Insertion Under Power" (RIUP). Maintenance teams replace faulty units without shutting down the entire backplane, maintaining continuous operation for adjacent modules.

• Rugged Environmental Rating: The unit withstands operating shocks of 30g and temperatures up to 55°C (with storage up to 85°C). This industrial hardening ensures signal stability in harsh environments near heavy rotating machinery or in unconditioned control rooms.

FAQs

Which terminal base provides the best protection for the 1794-IE4XOE2 in high-vibration areas?

We recommend the 1794-TB3S or 1794-TB3TS spring-clamp terminal bases. The spring-tension mechanism maintains a constant force on the wire, preventing signal loss or intermittent connections caused by the 5g vibration levels often found near compressors or pumps.

Can I mix voltage and current signals on the same module?

Yes. You configure each channel via the PLC software (Studio 5000 or RSLogix 500) to operate in either voltage (±10V) or current (4-20mA) mode. However, ensure your field wiring matches the specific terminal assignments for voltage or current to prevent hardware damage.

Does this module require an external power supply?

Yes. While the module draws 20mA from the FlexBus for communication logic, you must provide 24V DC external power to the terminal base to drive the analog loops and the internal PWM conversion circuitry.

What happens to the outputs if communication with the controller is lost?

The module allows you to program specific "safe states." You can configure the two analog outputs to hold their last value or transition to a specific "low" or "high" value (e.g., 4mA or 0V) to ensure the field equipment remains in a safe condition during a network failure.
