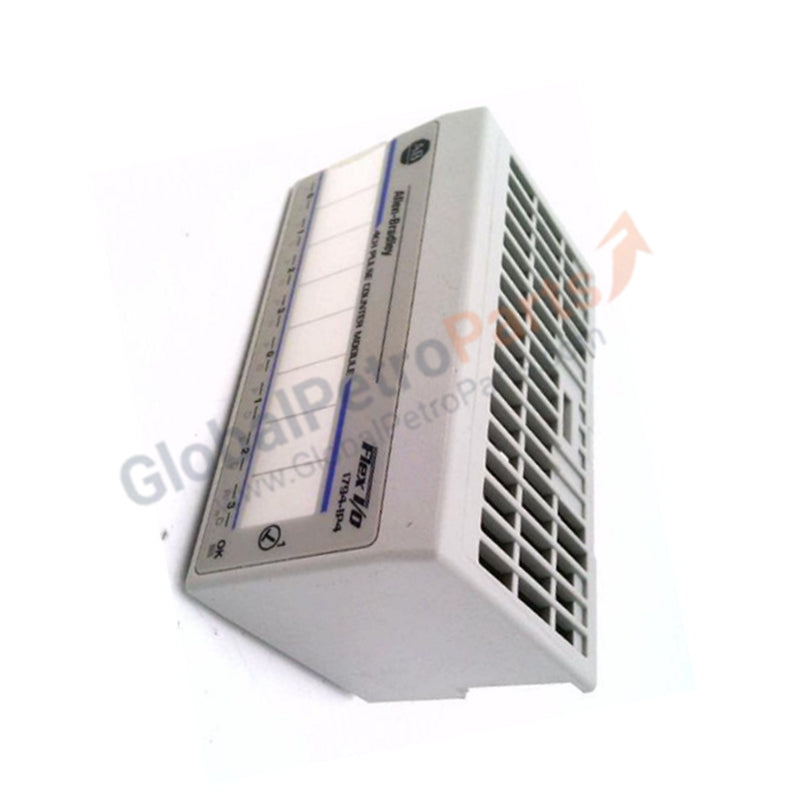

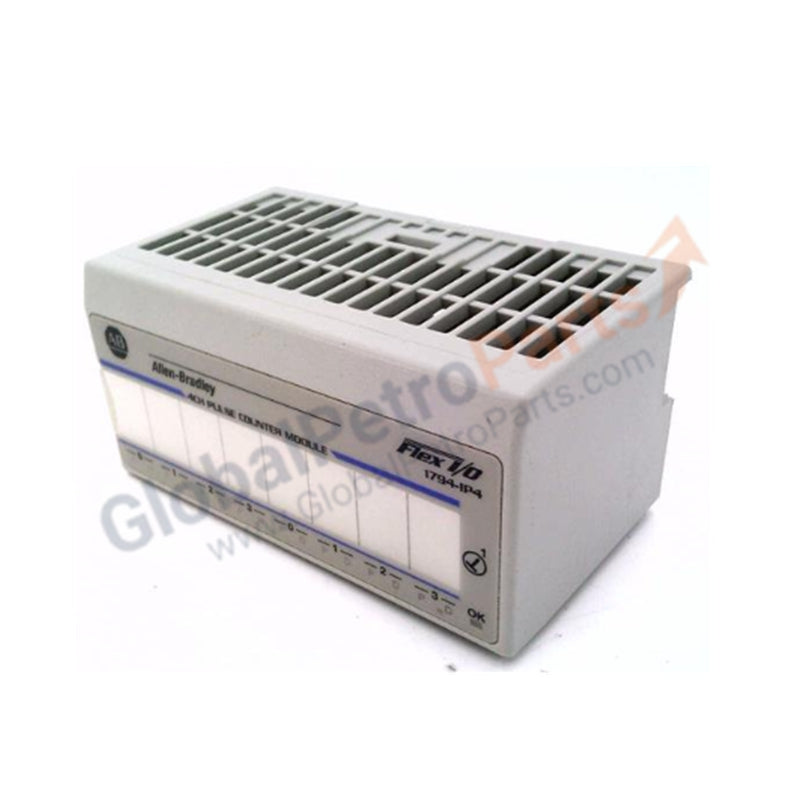

Allen-Bradley 1794-IP4 FLEX I/O 4-Channel Pulse Counter Module

Product Overview

The Allen-Bradley 1794-IP4 functions as a high-speed pulse acquisition interface within the FLEX I/O distributed architecture. This module captures rapid electronic signals from encoders, flow meters, and proximity switches that exceed the processing capabilities of standard digital input cards. We supply this unit as 100% Brand New and Original, ensuring your control system maintains precise count accuracy for high-speed manufacturing and bottling applications.

Technical Specifications

Engineering Advantages

• High-Speed Deterministic Counting: The 1794-IP4 handles input frequencies up to 100 kHz with a minimum pulse width of only 2 $\mu$s. This high temporal resolution allows the module to track extremely fast-moving targets or high-flow turbines where standard PLCs would skip pulses.

• Flexible Terminal Integration: This module docks seamlessly onto multiple terminal bases, including the 1794-TB2, -TB3, and -TBN. This modularity allows engineers to select the specific termination style (screw, spring, or fused) that best fits the cabinet's wiring density and safety requirements.

• Robust Signal Isolation: The internal circuitry provides 500V DC isolation between the field inputs and the Flexbus logic side. This barrier protects the expensive communication adapter and backplane from electrical transients, surges, and ground loops originating at the sensor level.

• Compact DIN Rail Mounting: The small footprint and vertical DIN rail mounting capability facilitate installation in narrow control enclosures. By offloading high-speed counting to a distributed FLEX I/O rack, you reduce central cabinet clutter and shorten field wiring runs to the sensors.

• Industrial Durability: With an operating shock rating of 30g and vibration resistance up to 5g, the 1794-IP4 withstands the mechanical stress of heavy industrial machinery. It maintains data integrity in environments prone to constant mechanical oscillation and impact.

FAQs

• Does this module support quadrature encoders?

  The 1794-IP4 is primarily a pulse counter module. While it excels at frequency measurement and totalizing from four independent sources, you should verify if your specific motion control logic requires a dedicated quadrature (A/B) phase module or if your CPU can process the dual-phase logic via these high-speed inputs.

• What is the significance of the 6V DC minimum ON-state voltage?

  The module requires at least 6V DC to register a pulse. This threshold provides excellent noise immunity, as it prevents low-level induced voltages or electrical "ghost" signals on long cable runs from triggering false counts.

• Can I replace the 1794-IP4 without removing the terminal base?

  Yes. The FLEX I/O system utilizes a "Removal and Insertion Under Power" (RIUP) design for the electronic modules. You can snap the Brand New 1794-IP4 module onto the existing terminal base without disturbing any field wiring, significantly reducing maintenance downtime.

• How do I handle the shield for high-speed pulse wiring?

  For 100 kHz signals, we recommend using shielded twisted-pair cable. Connect the shield to a clean ground at the terminal base side to prevent electromagnetic interference (EMI) from distorting the pulse edges, ensuring the module detects every 2 $\mu$s pulse accurately.
