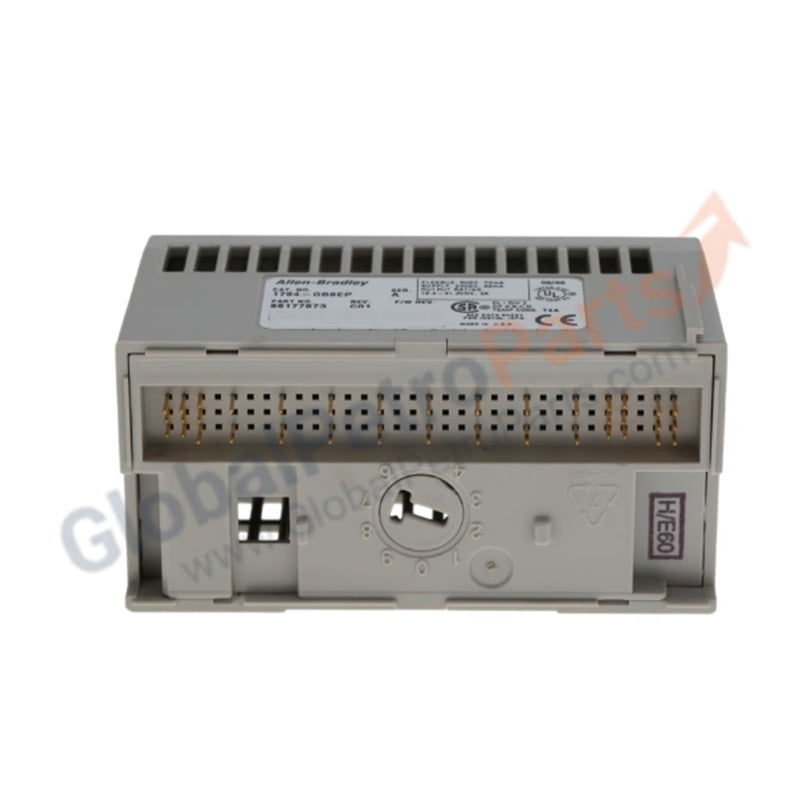

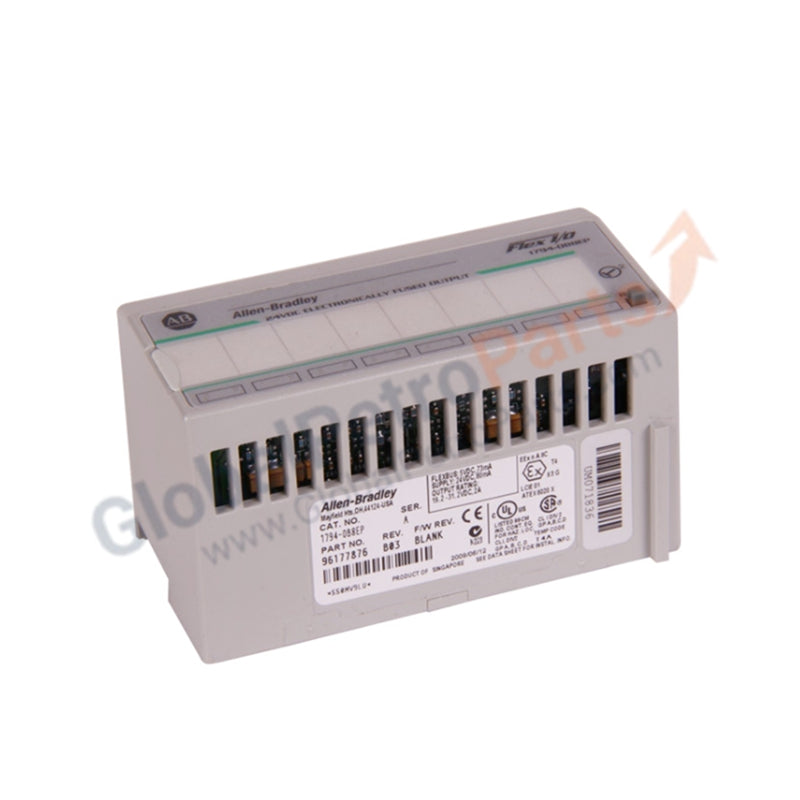

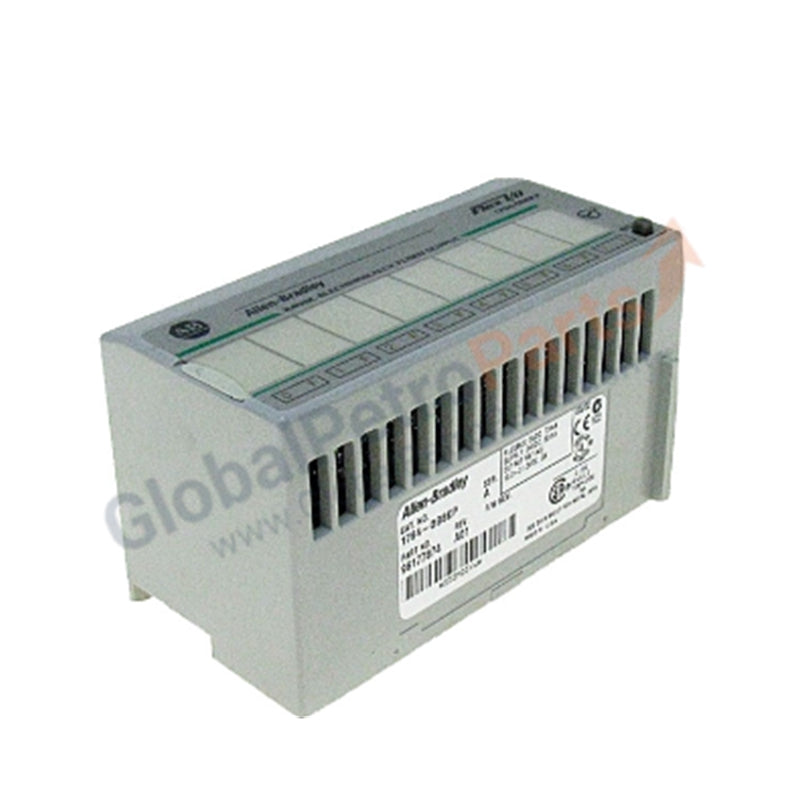

Allen-Bradley 1794-OB8EP FLEX I/O 8-Point 24V DC Electronically Protected Output Module

Product Overview

The Allen-Bradley 1794-OB8EP functions as a high-current, electronically protected digital output module within the FLEX I/O platform. It provides eight sourcing outputs designed to drive heavy industrial loads up to 2 Amps per channel. The "EP" designation signifies integrated electronic protection, which shields the module from short circuits and over-current conditions without the need for external fuses. We supply this unit as 100% Brand New and Original, providing a factory-sealed solution for distributed I/O systems requiring robust power handling and intelligent fault recovery.

Technical Specifications

Engineering Advantages

• High-Capacity Power Delivery: Each output delivers up to 2 Amps of continuous current. This high rating enables the 1794-OB8EP to drive large solenoid valves, motor starters, and heavy-duty actuators directly from the I/O module, often eliminating the cost and space required for interposing relays.

• Smart Electronic Protection: The module monitors each output for over-current and short-circuit faults. If a fault occurs, the electronic protection shuts down the affected channel instantly. This prevents internal circuitry damage and eliminates the maintenance downtime associated with replacing physical glass fuses.

• Distributed I/O Versatility: As part of the FLEX I/O family, the 1794-OB8EP reduces field wiring by moving the I/O closer to the actuators. It communicates with the main controller via EtherNet/IP, ControlNet, or DeviceNet adapters, simplifying the overall machine architecture and reducing EMI interference across long cable runs.

• Streamlined Troubleshooting: Dedicated LED indicators provide real-time feedback. Yellow LEDs track the logical state of each output, while red fault indicators signal a tripped protection circuit. These visual cues allow technicians to isolate field-side wiring issues without opening a laptop.

FAQs

• Q: How do I reset the output after an electronic protection trip?

  A: Once you clear the short circuit or over-current condition in the field, you can reset the electronic protection by cycling the output's logical state in the PLC program or by cycling the 24V DC field power to the terminal base.

• Q: Can I use the 1794-OB8EP with a standard 1794-TB3 terminal base?

  A: Yes. The 1794-OB8EP is compatible with 1794-TB2, 1794-TB3, and 1794-TB3S bases. Ensure your chosen base and wiring gauge can handle the total current if multiple 2 Amp channels operate simultaneously.

• Q: What is the benefit of the "EP" model over the standard 1794-OB8?

  A: The standard 1794-OB8 usually supports only 0.5 Amps per channel and lacks integrated short-circuit protection. The 1794-OB8EP increases the current capacity to 2.0 Amps and adds intelligent protection, making it far superior for heavy-duty switching applications.

• Q: Does this module support "Removal and Insertion Under Power" (RIUP)?

  A: Yes. You can remove and insert the 1794-OB8EP while the rest of the FLEX I/O rack remains powered. This allows for module replacement without interrupting the communication of other I/O slices on the same network adapter.
