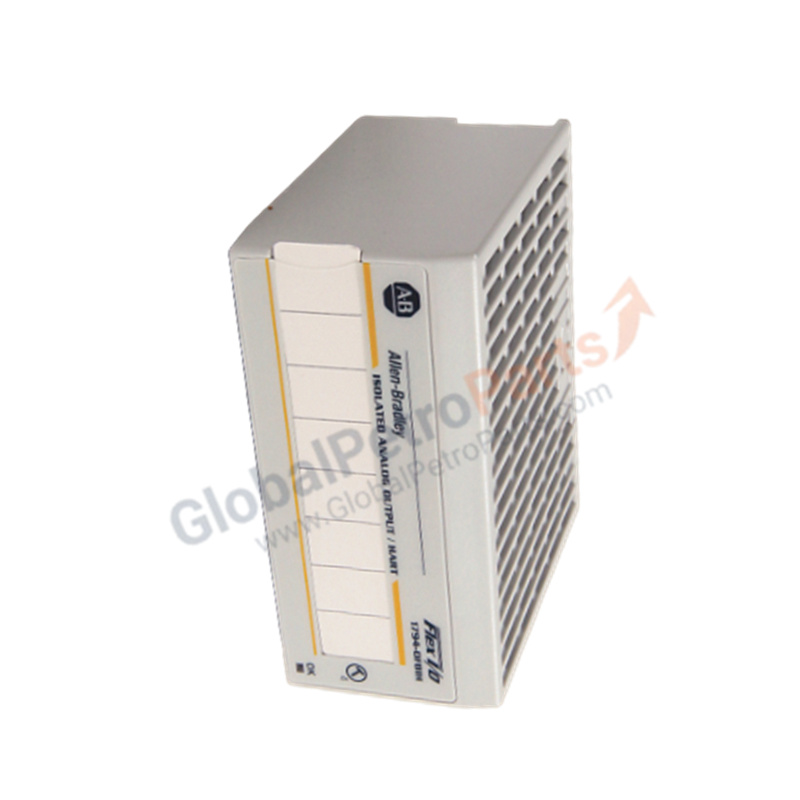

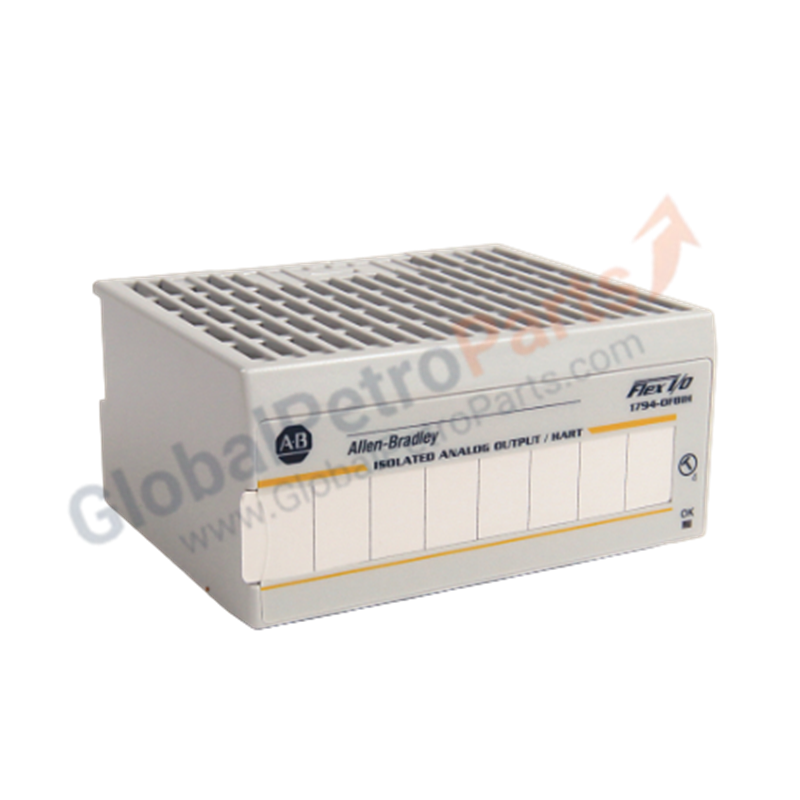

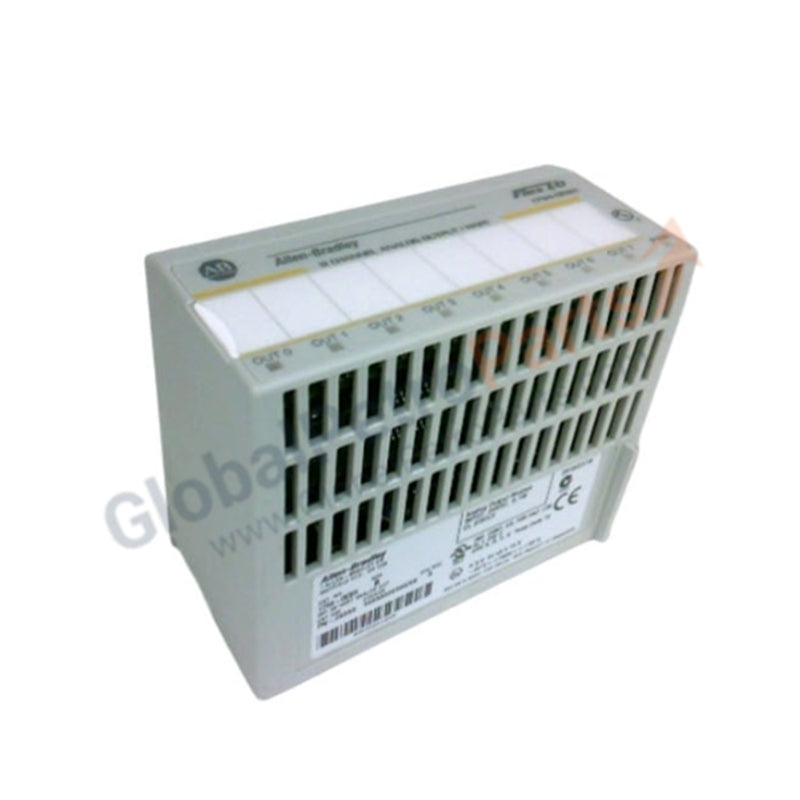

Allen Bradley 1794-OE8H FLEX I/O 8-Channel Analog HART Output Module

Product Overview

The Allen Bradley 1794-OE8H functions as a high-density analog output interface within the modular FLEX I/O platform. This module converts digital controller data into 8 precise analog signals to drive actuators, valves, and positioners in complex process loops. Crucially, it supports HART (Highway Addressable Remote Transducer) protocol, enabling bidirectional communication with smart field devices. We supply this unit as 100% Brand New and Factory Original, guaranteeing compatibility with your high-availability control systems.

Technical Specifications

Engineering Advantages

• Advanced HART Integration: The 1794-OE8H facilitates HART pass-through, allowing maintenance teams to access device calibration data and diagnostics remotely. This eliminates the need for technicians to physically access field instruments in hazardous areas, significantly reducing maintenance downtime.

• Space-Efficient Design: This module packs 8 high-resolution analog outputs into the compact FLEX I/O footprint. By maximizing channel density, it reduces the number of terminal bases and I/O racks required, lowering overall hardware costs and cabinet space requirements.

• Robust Signal Protection: The module features comprehensive channel-to-backplane electrical isolation. This architecture protects the sensitive controller logic from field-side electrical surges and ground loops, ensuring long-term system stability in electrically noisy industrial environments.

• Simplified Wiring and Installation: The open-style design snaps directly onto standard DIN rails. It utilizes a separate terminal base (sold separately) which allows you to pre-wire the system before installing the module, preventing damage to the electronics during the heavy construction phase of a project.

FAQs

• Does the 1764-OE8H require a specific terminal base?

  Yes, you must install the 1794-OE8H on a compatible FLEX I/O terminal base, such as the 1794-TB3G or 1794-TB3GS. These bases provide the necessary connection points for the 24V DC power and the 8 analog output loops.

• How does the HART pass-through feature benefit process diagnostics?

  The HART pass-through allows the control system to "see through" the analog signal to read the digital metadata from the field device. You can monitor device health, secondary variables, and configuration status without interrupting the 4-20mA control signal.

• Can I replace a standard 1794-OE8 module with the 1794-OE8H?

  While the physical footprint remains the same, the 1794-OE8H adds HART functionality. You may need to update your I/O configuration in RSLogix 5000 / Studio 5000 and ensure your communication adapter (such as an Ethernet/IP or ControlNet adapter) supports the additional HART data packets.

• What is the condition of this module?

  We guarantee this product is 100% Brand New in its original Allen Bradley factory packaging. We do not deal in refurbished or used surplus; you receive a factory-fresh unit with full technical integrity.
