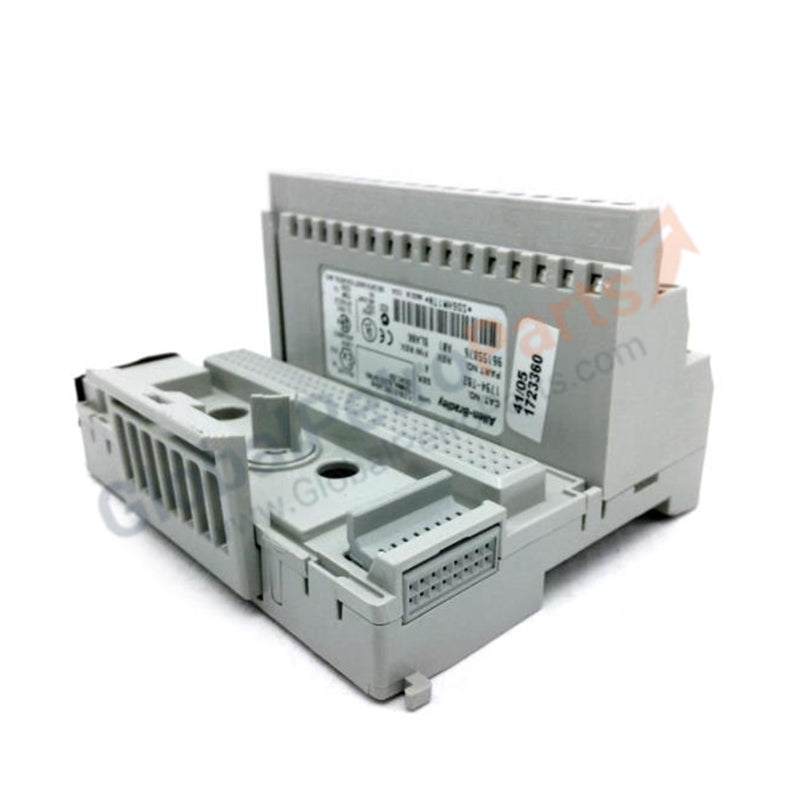

Allen-Bradley 1794-TB2 Flex I/O Screw Clamp Terminal Base

Product Overview

The Allen-Bradley 1794-TB2 functions as the foundational mounting and wiring interface for the Flex I/O system. This terminal base establishes the physical connection between field devices and I/O modules, providing a compact, modular solution for industrial control panels. It facilitates efficient signal distribution through a rugged screw-clamp termination system. We provide this component as 100% Brand New and Original, ensuring high-integrity electrical pathways for your critical automation architecture.

Technical Specifications

The 1794-TB2 utilizes an open-style architecture designed for seamless integration into standard industrial enclosures.

Engineering Advantages

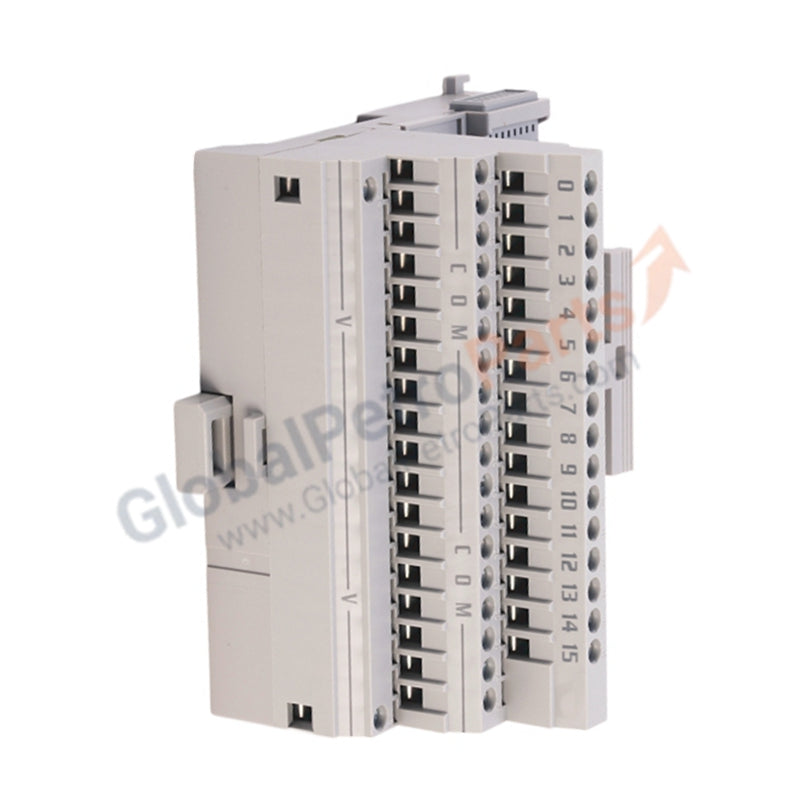

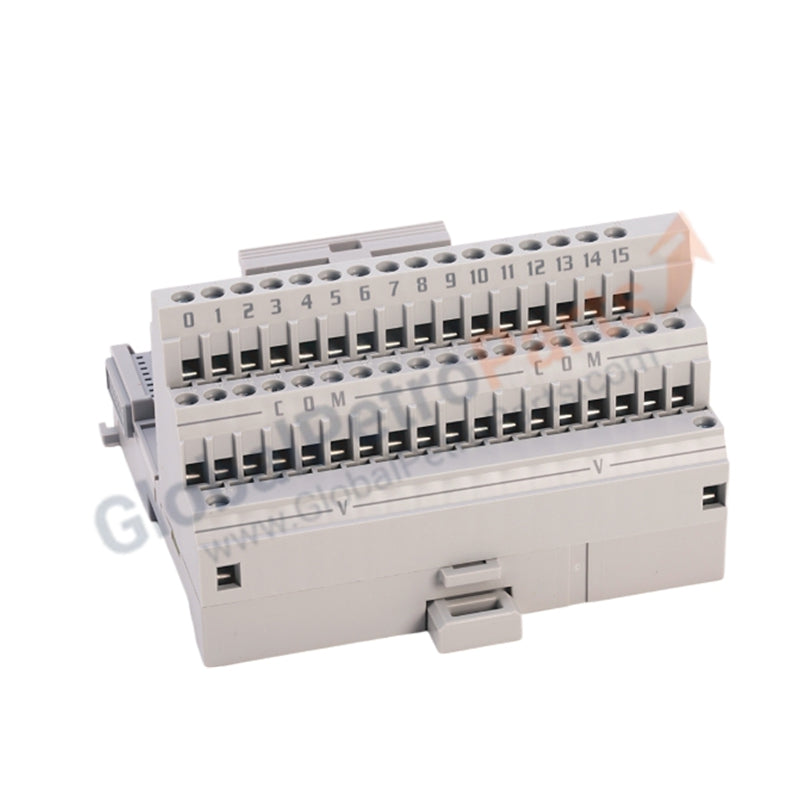

• Optimized Wiring Density: The 1794-TB2 provides 16 dedicated I/O terminals alongside 8 common and 2 voltage terminals. This consolidated layout reduces the need for external terminal blocks, significantly decreasing the footprint required in crowded control cabinets.

• Rugged Screw-Clamp Security: The heavy-duty screw clamps ensure high-torque retention for field wiring. This mechanical design prevents intermittent signal loss caused by industrial vibrations or thermal expansion in high-duty cycle environments.

• Modular Hot-Swap Support: This terminal base allows for "Removal and Insertion Under Power" (RIUP). You can replace I/O modules without disturbing the field wiring or shutting down the entire system, minimizing expensive production downtime during maintenance.

• Simplified DIN Rail Integration: The integrated locking mechanism snaps directly onto standard 35mm DIN rails. This design streamlines assembly and allows for rapid expansion of the I/O rack as system requirements evolve.

FAQs

• What is the difference between the 1794-TB2 and 1794-TB3?

  The 1794-TB2 utilizes a 2-wire termination style with 16 I/O terminals, whereas the 1794-TB3 offers additional common and power terminals (3-wire) to accommodate more complex sensor/actuator wiring requirements.

• Does this unit include the I/O module?

  No. The 1794-TB2 is the terminal base only. You must select and install a compatible Flex I/O digital or analog module into the base to complete the assembly.

• Can I use the 1794-TB2 with analog modules?

  While the 1794-TB2 supports many modules, engineers typically prefer the 1794-TB3 or 1794-TBN for analog applications to better manage shielding and common-mode signal requirements. Always verify module compatibility in the Flex I/O selection guide.

• What wire gauge does the screw clamp accept?

  The 1794-TB2 screw clamps reliably secure wire sizes ranging from 22 AWG to 12 AWG (0.34 to 4.0 $mm^2$), allowing for flexibility in field cabling choices.
