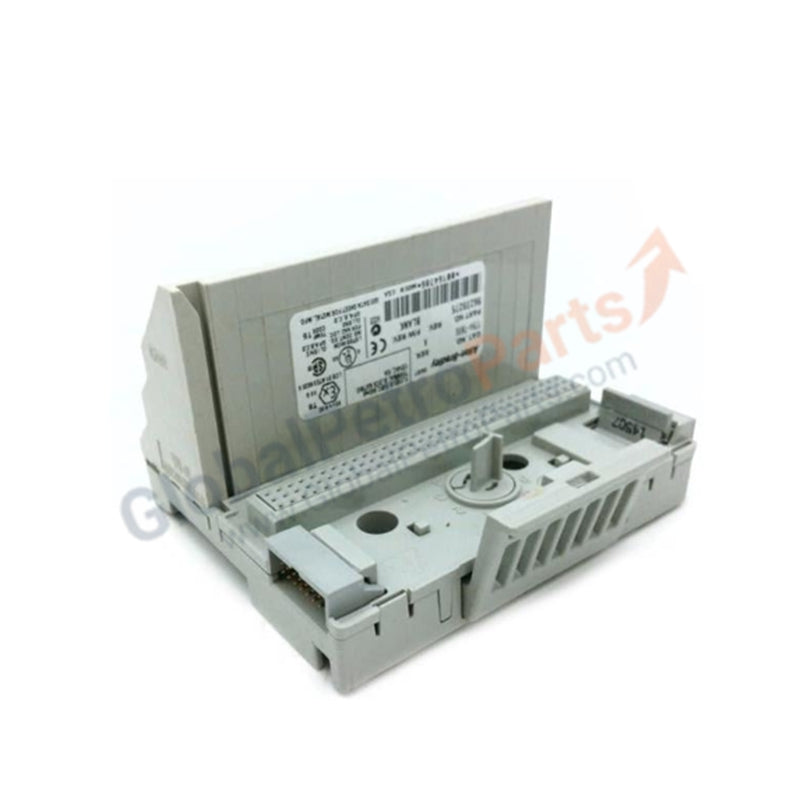

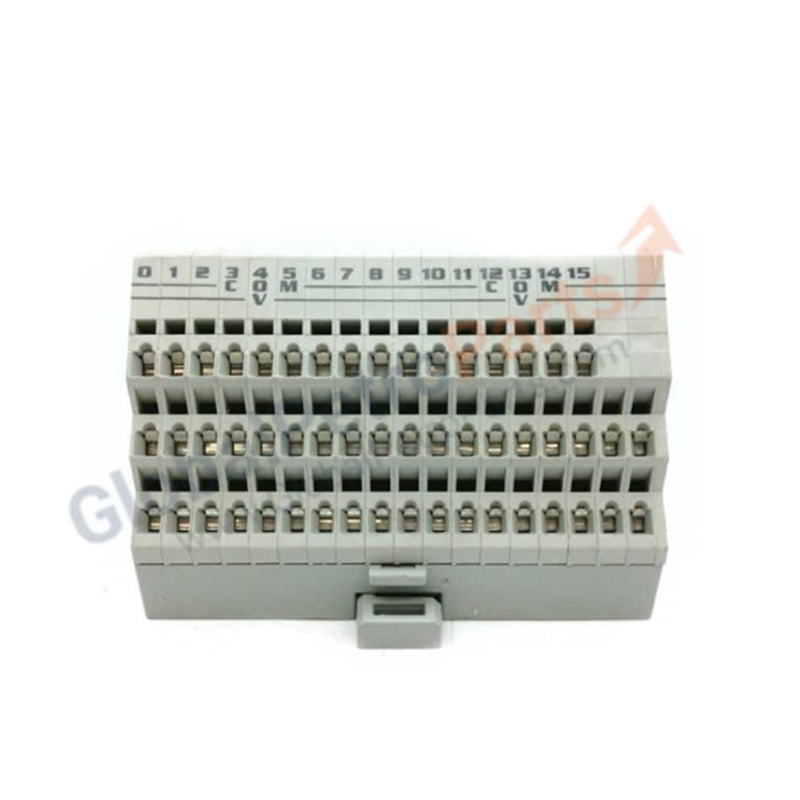

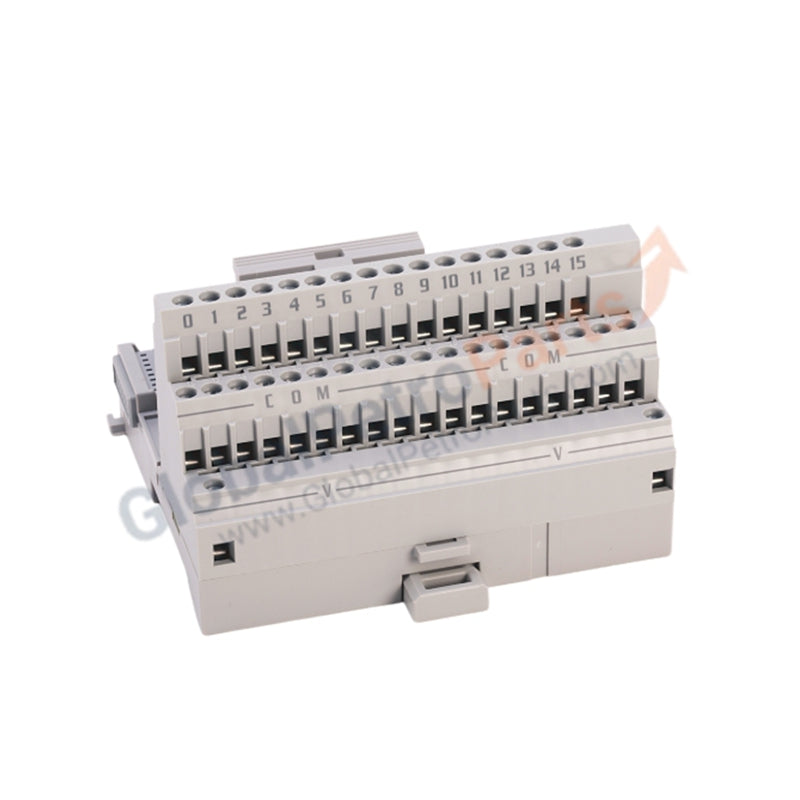

Allen-Bradley 1794-TB3S Flex I/O 1794 Spring Terminal Base

Product Overview

The Allen-Bradley 1794-TB3S is a high-performance spring clamp terminal base designed specifically for the Flex I/O 1794 series. This component acts as the critical physical interface between your Flex I/O adapter/modules and field wiring. It provides a secure, vibration-resistant connection point for up to 16 discrete or analog I/O signals. We supply this product as 100% Brand New and in original packaging, ensuring pristine condition and perfect compatibility with your existing industrial control architecture.

Technical Specifications

Engineering Advantages

Rapid, Tool-Free Wiring with Spring Clamp Technology
The 1794-TB3S utilizes advanced spring clamp technology, which eliminates the need for screwdrivers during installation and maintenance. You simply insert the stripped wire (22 to 12 AWG) into the terminal, and the spring mechanism automatically secures a gas-tight connection. This design drastically reduces wiring time during panel build-out and allows maintenance technicians to replace field devices in seconds, minimizing costly machine downtime.

Superior Vibration Resistance for Harsh Environments
Unlike traditional screw terminals that can loosen over time due to mechanical stress, the spring clamp mechanism maintains constant pressure on the wire conductor. This terminal base withstands vibration levels up to 5 g (10 Hz to 150 Hz), making it the ideal solution for high-vibration applications such as vibrating conveyors, stamping presses, and rotating machinery.

Robust Current Handling and Environmental Tolerance
Engineered for demanding industrial settings, the 1794-TB3S handles a continuous current rating of 10A per terminal. It operates reliably in temperatures ranging from -20 to 70°C and tolerates humidity levels up to 95% (non-condensing). This durability ensures stable signal integrity and power delivery even in the most challenging factory floor conditions.

FAQs

Q: What gauge of wire is compatible with this terminal base?
A: The 1794-TB3S accepts a wide range of wire sizes, specifically from 22 AWG to 12 AWG. This flexibility allows you to use standard industrial control wiring for both signal and power distribution.

Q: Do I need tools to connect or disconnect wires?
A: No. The spring clamp design is tool-free for the wire insertion itself. While a small flat-head tool might be used to depress the spring for removal, the connection process is designed for speed and ease, significantly speeding up installation compared to traditional screw terminals.

Q: Is this terminal base suitable for high-vibration machinery?
A: Yes. The spring clamp mechanism is specifically designed to resist loosening under stress. With a vibration resistance rating of 5 g from 10 Hz to 150 Hz, it provides a highly secure connection that outperforms standard screw terminals in vibrating environments.
