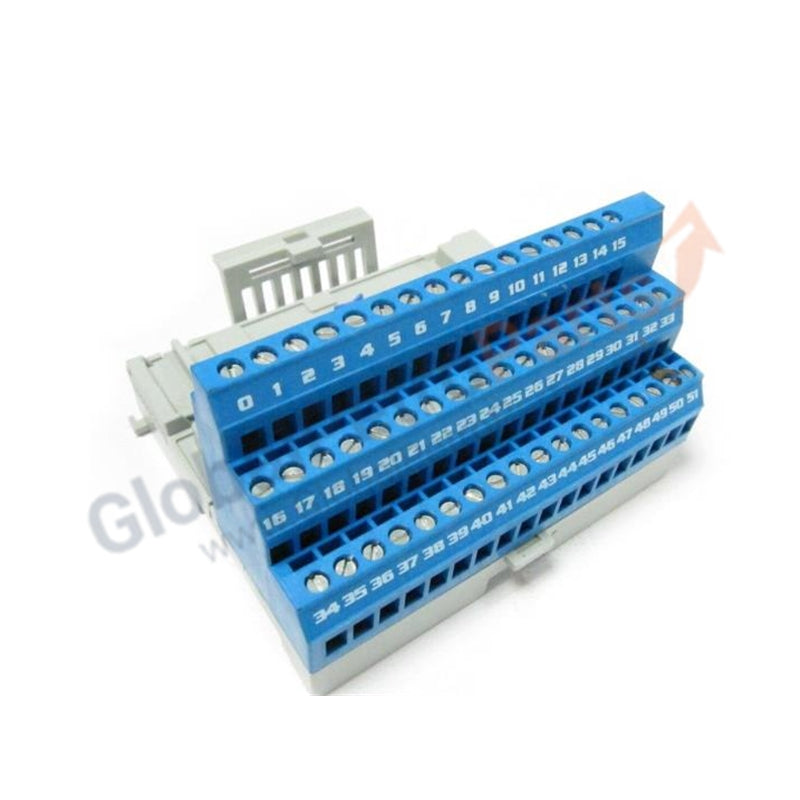

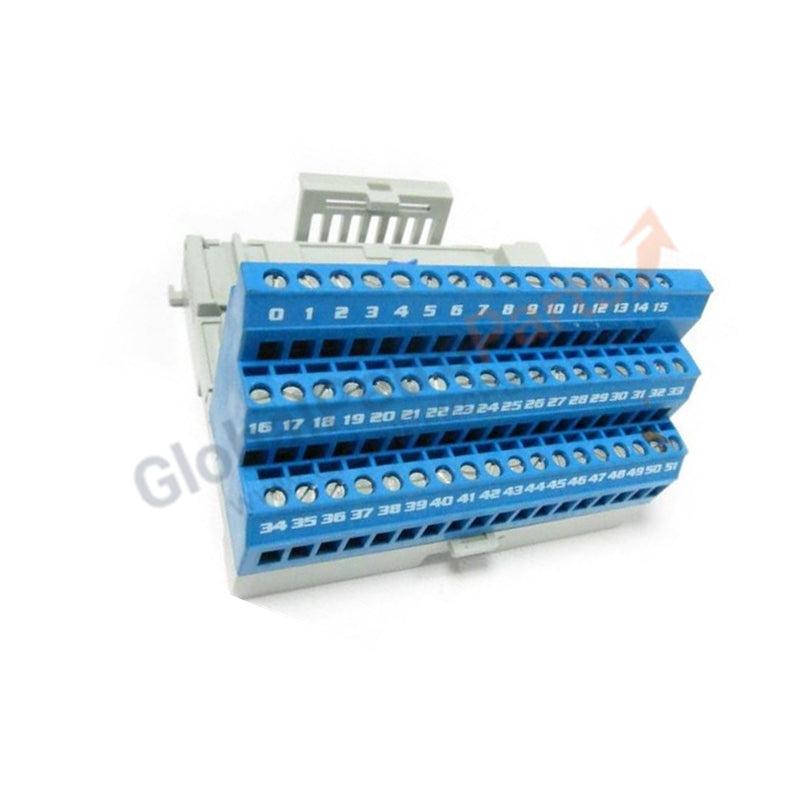

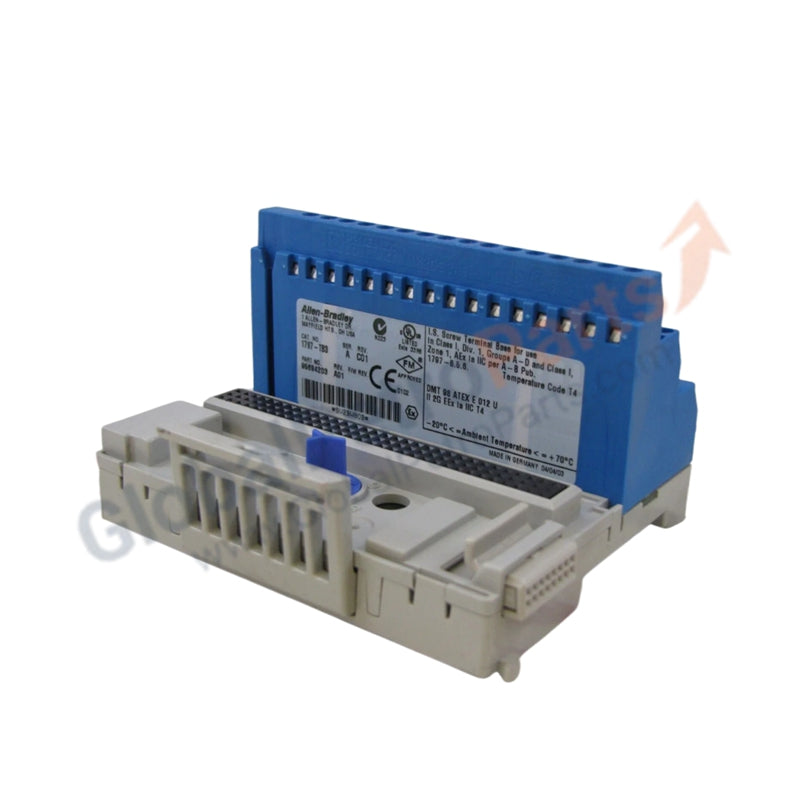

Allen-Bradley 1797-TB3 FLEX Ex Intrinsically Safe Terminal Base Unit

Product Overview

The Allen-Bradley 1797-TB3 functions as a specialized, high-density terminal base unit within the FLEX Ex intrinsically safe distributed I/O platform. This hardware module provides the mounting backplane, digital/analog signal distribution pathways, and direct field-side wiring nodes for FLEX Ex I/O modules operating in hazardous deployment zones. We supply this terminal block component exclusively in 100% brand new, original factory condition to ensure zero contact resistance, maintain complete galvanic isolation across channels, and guarantee uncompromised energy-limiting safety parameters.

Technical Specifications

Engineering Advantages

• Secures Solid Connections via Screw Cages: The 52-pin screw cage clamp mechanism bites firmly down on stranded or solid field wires. This gas-tight mechanical grip prevents wire strand unravelling and eliminates terminal loosening caused by severe structural plant floor vibrations.

• Accelerates Multi-Module DIN-Rail Mounting: Built-in interlocking side hooks align the terminal base automatically with adjacent FLEX Ex units on standard DIN rails. This modular daisy-chain architecture routes the internal logic power and communication lines instantly without requiring complex manual jumper wiring.

• Simplifies Narrow Field Cabinet Termination: The compact, lightweight 0.49 lbs footprint packs 52 discrete termination points into a condensed physical profile. This design allows control engineers to terminate multi-conductor instrument cables in cramped marshalling panels where space commands a high premium.

• Enables Safe Hot-Swapping of Active Modules: The heavy-duty backplane pin sockets slide smoothly into the target I/O card connector. The structural separation of field wiring from the active electronics module allows technicians to replace faulty I/O modules under live field power conditions without sparking or breaking the intrinsically safe loop perimeter.

FAQs

• Can I utilize the 1797-TB3 terminal base with standard non-Ex 1794 FLEX I/O modules?

  No. The 1797-TB3 features specific mechanical keying, plastic compounds, and physical spacing layouts dedicated strictly to the intrinsically safe 1797 FLEX Ex series. Standard 1794 modules will not fit onto this base, preventing dangerous cross-contamination of energy levels in explosive atmospheres.

• Is this terminal base an authentic Allen-Bradley part or a used surplus block?

  We guarantee this product is 100% brand new, factory-original, and completely unused stock. It arrives sealed inside its original manufacturer protective box with all intact serialization tags, safety certification stamps, and tracking barcodes.

• What torque rating should technicians apply to the screw cages during wire installation?

  Field electricians must use an instrument-grade screwdriver to tighten the terminal screws to the manufacturer-specified torque value (typically 5–7 lb-in). Over-tightening strips the internal brass cage threads, while under-tightening increases electrical resistance and can lead to intermittent signal loss on critical control loops.
