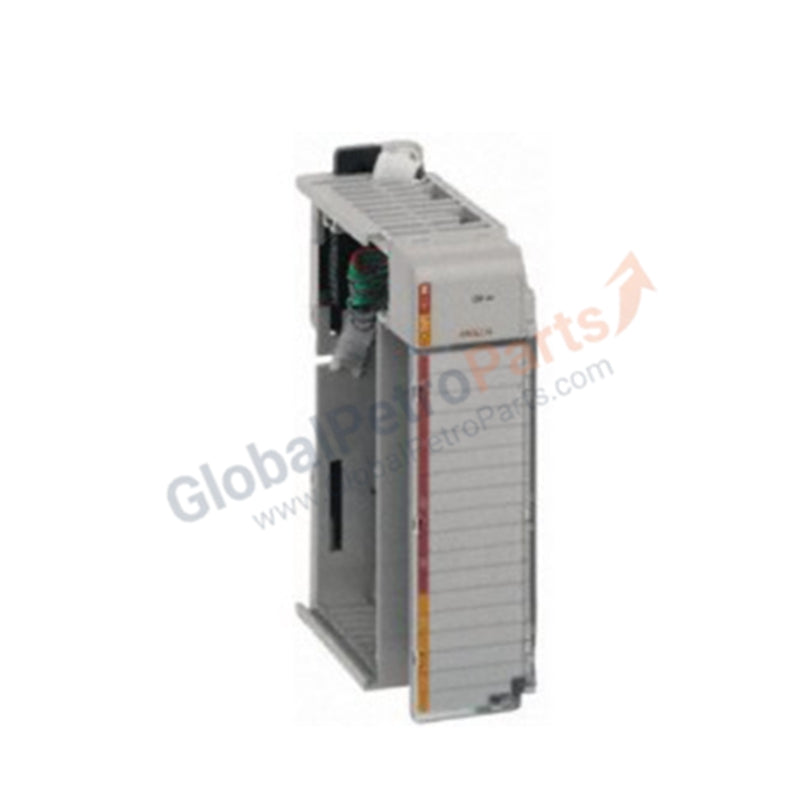

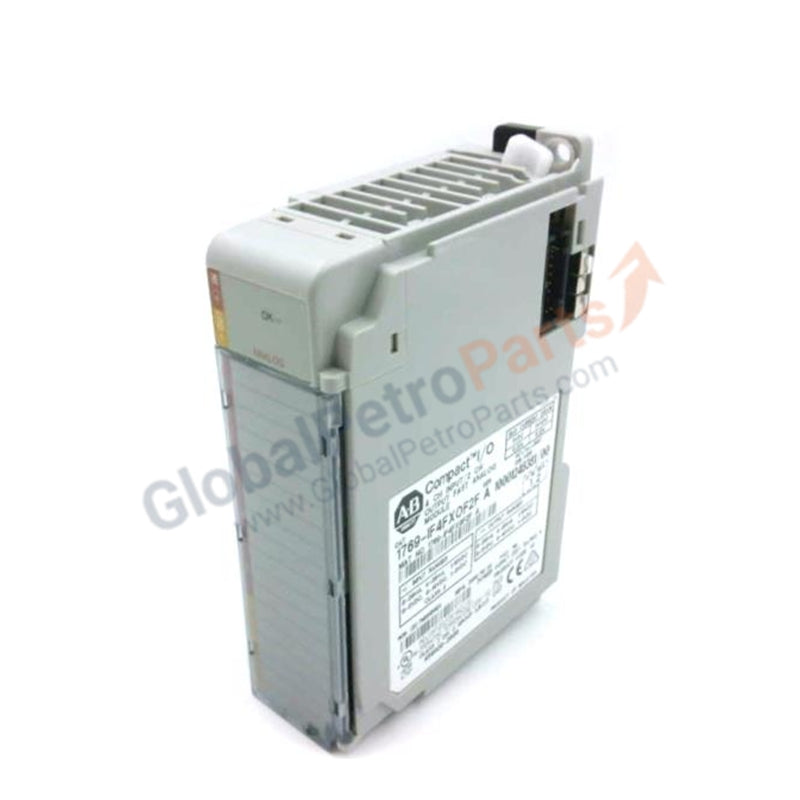

1769-IF4XOF2 Allen-Bradley | CompactLogix Analog I/O Combination Module

Product Overview

The Allen-Bradley 1769-IF4XOF2 serves as a versatile analog I/O combination module designed specifically for the CompactLogix automation platform. This high-density unit seamlessly integrates 4 analog inputs and 2 analog outputs into a single chassis slot, significantly optimizing backplane space for complex process control applications. Supporting both current and voltage signal types, it delivers precise data acquisition and control for sensors, transmitters, and final control elements in industries ranging from packaging and material handling to water treatment. We supply this item as a 100% Brand New, factory-sealed unit.

Technical Specifications

Engineering Advantages

High-Density Analog Integration
The 1769-IF4XOF2 maximizes your CompactLogix chassis capacity by combining 4 analog inputs and 2 analog outputs into a single I/O slot. This efficient design drastically reduces the physical footprint required for your control system, allowing you to monitor multiple process variables (like temperature, pressure, and flow) while simultaneously controlling actuators, all without consuming valuable extra slots in your PLC rack.

Flexible Signal Compatibility
Engineered for diverse industrial instrumentation, this module supports both current (e.g., 4-20mA) and voltage I/O operations. The 4 input channels offer the flexibility to be configured as either single-ended or differential inputs, allowing you to adapt to various sensor wiring schemes and effectively mitigate common-mode noise in electrically challenging environments.

Robust Power and Installation Design
This module draws 120 mA at 5V DC and 160 mA at 24V DC directly from the Compact I/O backplane. It is rated for installation up to 8 modules away from the system power supply, giving you layout flexibility. For physical installation, it includes both DIN rail latches for quick mounting and panel mounting tabs for secure, vibration-resistant deployment in demanding machinery.

FAQs

Q: How many analog input and output channels does the 1769-IF4XOF2 provide?
A: This combination module provides a total of 6 analog channels, consisting of 4 configurable analog inputs (single-ended or differential) and 2 single-ended analog outputs.

Q: What types of analog signals does this module support?
A: The 1769-IF4XOF2 supports both current and voltage I/O operations, making it compatible with a wide range of standard industrial sensors, transmitters, and control devices.

Q: Can the input channels be configured for differential wiring?
A: Yes, the 4 analog input channels are highly flexible and can be configured as either single-ended or differential inputs, allowing you to optimize signal integrity based on your specific field wiring requirements.

Q: How far can this module be installed from the power supply?
A: The 1769-IF4XOF2 has a power supply distance rating of up to 8 modules, providing excellent flexibility when designing the layout of your CompactLogix chassis and I/O racks.
