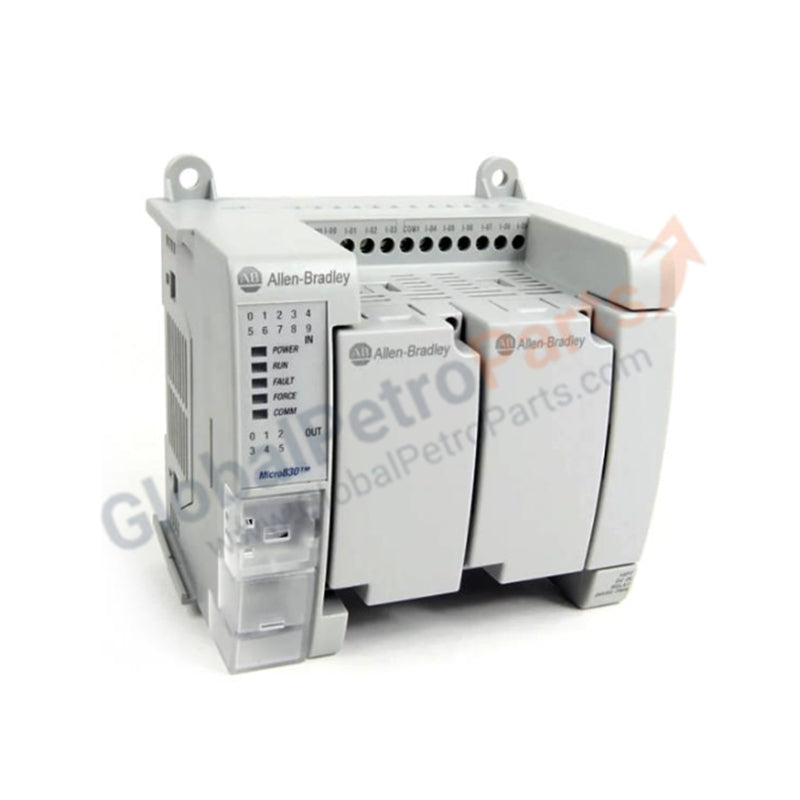

Allen Bradley 2080-LC30-16QWB Micro830 Programmable Logic Controller

Product Overview

The Allen Bradley 2080-LC30-16QWB serves as a cornerstone for standalone machine control within the Micro830 family. This compact yet powerful PLC provides 16 integrated I/O points, specifically designed for small-scale industrial applications requiring precise relay switching and flexible input voltage handling. We offer this unit as 100% Brand New and original factory sealed, providing a robust hardware foundation for your essential automation tasks.

Technical Specifications

The 2080-LC30-16QWB integrates diverse I/O and communication capabilities into a single DIN-rail mountable chassis:

Engineering Advantages

• Flexible Input Compatibility: The 10 integrated inputs accept both 24V DC and 24V AC signals. This dual-voltage capability allows engineers to interface with a wider variety of field devices without adding interposing relays or secondary power converters.

• Modular Expansion: Two integrated plug-in slots enable the addition of analog I/O, specialized communication modules, or additional memory without increasing the footprint of the PLC. This allows for system scaling while maintaining a compact control cabinet layout.

• Embedded Serial Versatility: The non-isolated RS-232/485 combo port supports Modbus RTU and ASCII. This enables direct communication with VFDs, temperature controllers, and other serial peripherals, eliminating the cost of external communication bridges.

• Sophisticated Instruction Set: Despite its micro-scale categorization, the 2080-LC30-16QWB supports floating-point math and PID control loops. These features empower engineers to execute complex arithmetic and closed-loop process control directly on a cost-effective controller.

FAQs

Q: Can I program the 2080-LC30-16QWB using a standard USB cable?

A: Yes. The controller features a built-in USB 2.0 port that accepts a standard USB printer cable for programming via Connected Components Workbench (CCW) software, removing the need for proprietary programming cables.

Q: What is the benefit of the Relay output type in this model?

A: Relay outputs provide high-current switching capacity and electrical isolation for both AC and DC loads. This makes the 16QWB ideal for controlling diverse hardware like solenoids, contactors, and small motors that require more than simple transistor-level signals.

Q: Does this PLC support expansion beyond the two plug-in slots?

A: The Micro830 series focuses on plug-in modularity. While it does not support the larger side-car expansion modules found on the Micro850, the two plug-in slots provide sufficient flexibility for most standalone machine requirements while keeping the total digital I/O count up to 32.

Q: Can I use the RS485 port for a multi-drop network?

A: Yes. The combo port supports RS485, allowing you to configure the PLC as a Modbus RTU Master to control multiple nodes (such as PowerFlex drives) across a single twisted-pair network.
