Allen-Bradley 2080-OB4 Micro 800 Digital Output Module

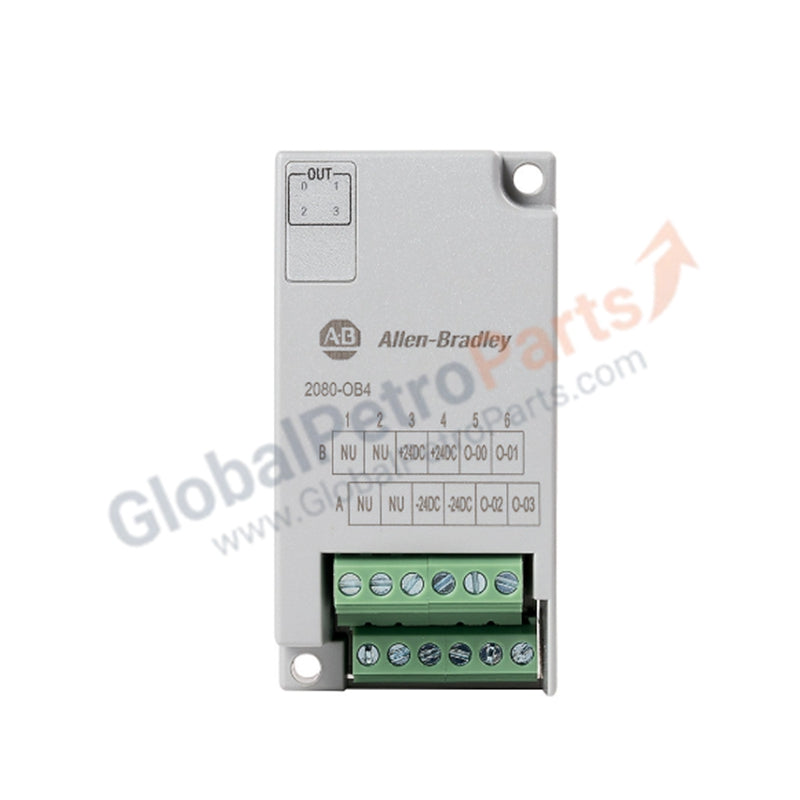

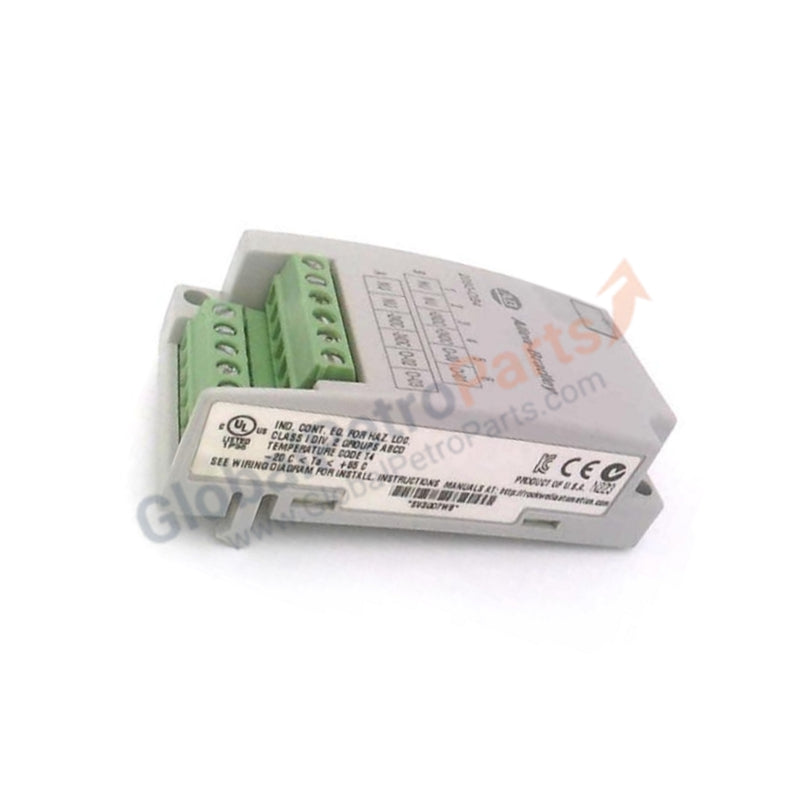

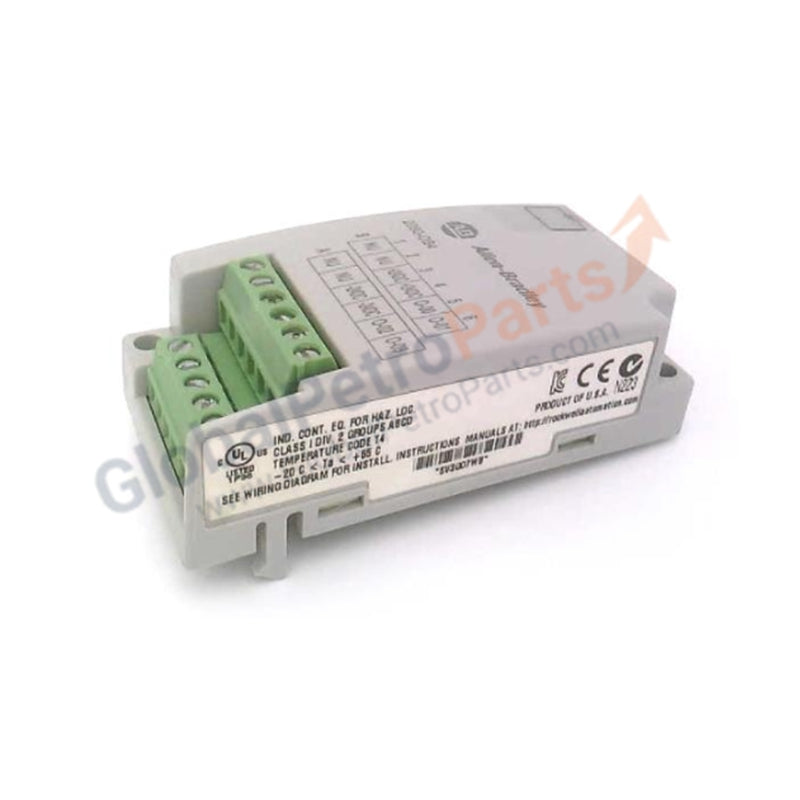

Configured for discrete signal switching in Micro 800 control networks, the Allen-Bradley 2080-OB4 (2080-OB4 Digital Plug-in Module) provides direct physical/electrical execution. This hardware unit serves as a four-point sourcing digital output module utilized to execute load switching across Micro 800 platform architectures.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks

The 2080-OB4 utilizes the Micro 800 plug-in bus architecture to interface with the controller. While this interface is not a high-speed fieldbus, maintaining consistent scan cycles is required for deterministic operation. I/O density scaling is limited by the physical slot capacity of the base controller; users must ensure firmware flash compatibility between the controller and the plug-in module to prevent configuration errors during power-up or runtime.

Frequently Asked Questions

Q: Is this module capable of driving AC loads directly?

A: No. The 2080-OB4 is a sourcing digital output module designed strictly for DC operation within a 10.8-30 VDC range. Attempting to switch AC loads will result in module damage.

Q: Can the 2080-OB4 be hot-swapped while the controller is running?

A: No. The Micro 800 plug-in modules are not designed for removal or insertion under power. The controller must be de-energized before installing or replacing this module to prevent electrical damage to the plug-in connector pins.

Field Installation Guidelines

• Mounting: Insert the module into the designated plug-in slot on the front of the Micro 800 controller. Secure the module using the integrated retaining screw to ensure physical stability.
• Wiring: Ensure all wiring conforms to the 24 VDC nominal voltage rating. Utilize appropriate wire gauges for the terminals and verify that all connections are tight to prevent intermittent contact.
• Grounding: Ensure the controller chassis is bonded to a common earth ground. This provides a reference for DC return and mitigates potential-related interference in the switching circuit.
• Load Protection: For inductive loads, install external suppression diodes to prevent back-EMF from damaging the solid-state sourcing transistors during output transition.
