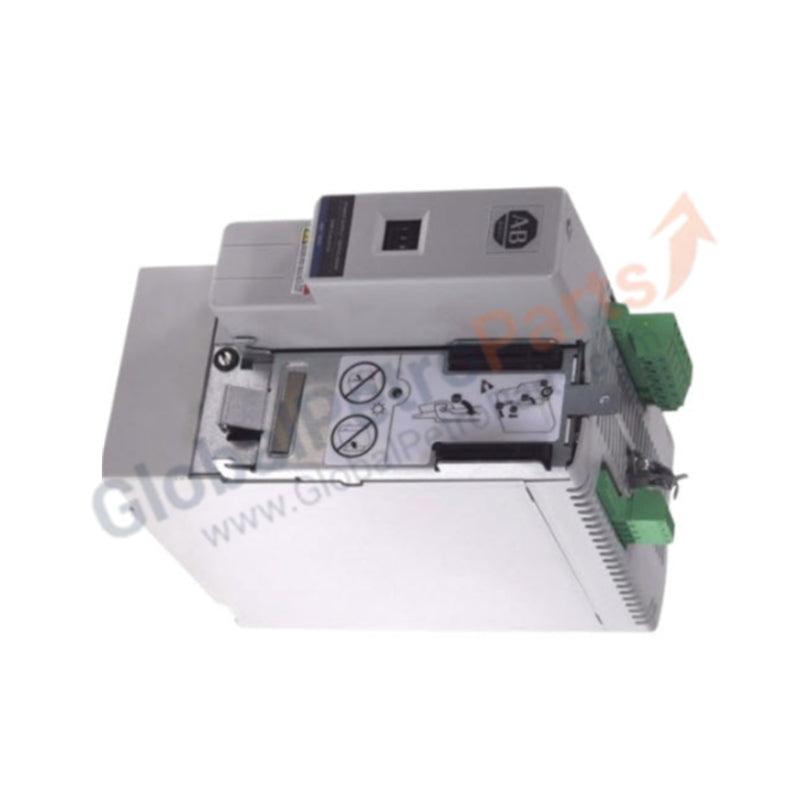

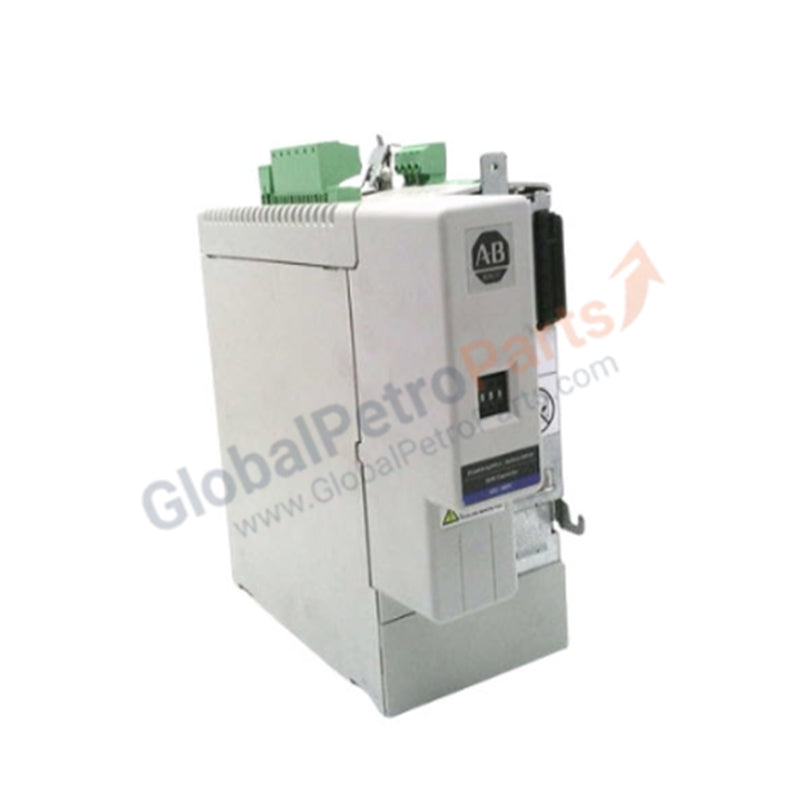

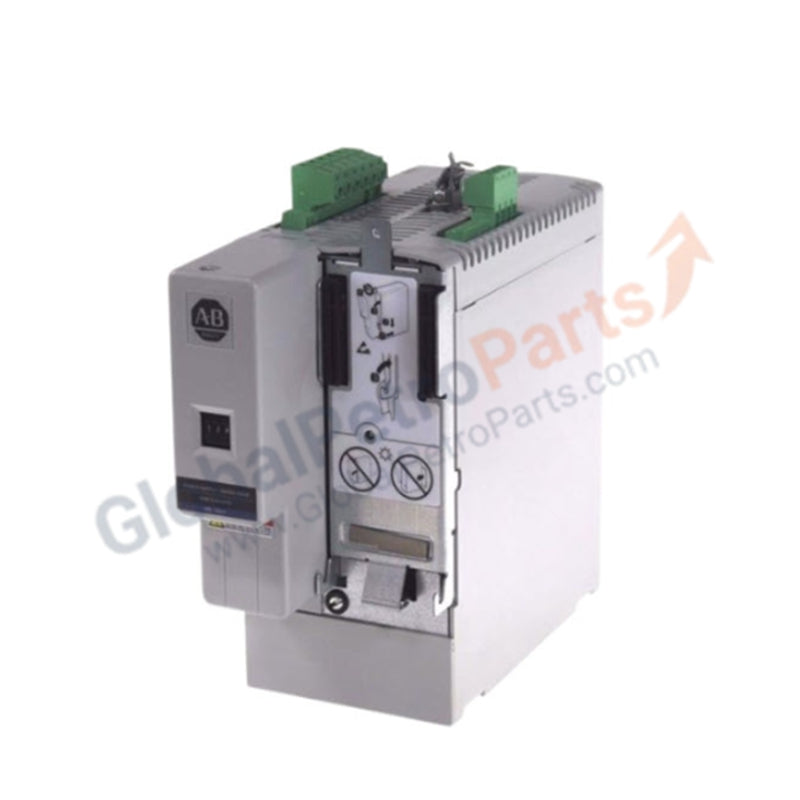

Allen-Bradley 2094-BC01-MP5-M Kinetix 6200 Integrated Axis Module

Configured for multi-axis motion control in Kinetix 6200 drive systems, the Allen-Bradley 2094-BC01-MP5-M (2094-BC01-MP5-M Integrated Axis Module) provides direct physical/electrical execution of servo motor power delivery and feedback processing. This module functions as a core component within the Kinetix 6200 platform, managing 3-phase power conversion and high-speed motion loops for industrial servo applications.

Hardware Specifications

Kinetix Motion Control and Drive Integration

The 2094-BC01-MP5-M utilizes backplane bus communication velocity to synchronize motion commands with the system controller. When deployed in modular Kinetix architectures, the drive supports complex firmware flash compatibility requirements, ensuring consistent performance across multi-axis configurations. The integration of high-density I/O and feedback scaling permits precise control over servo dynamics. Users must monitor bus voltage and thermal dissipation during high-load motion profiles to ensure sustained operation within the specified current ratings.

Frequently Asked Questions (FAQ)

Q: Is this module capable of supporting hot-swapping?

A: No. The Kinetix 6200 Integrated Axis Modules are not intended for hot-swapping. The drive bus must be fully discharged, and input power must be removed before installation or extraction from the system chassis.

Q: How is the maximum bus capacitance handled during power-up?

A: The drive features internal pre-charge circuitry designed to manage the 4585 microfarad bus capacitance. Ensure the input AC line impedance remains within the limits defined in the drive manual to prevent nuisance pre-charge faults.

Field Installation Guidelines

• Chassis Mounting: Secure the module within the Kinetix 6200 chassis, ensuring the power and signal connectors are fully engaged with the internal backplane bus.
• Grounding Requirements: Connect the drive chassis to a common earth ground using high-gauge copper conductor. Proper grounding is required to mitigate electromagnetic interference (EMI) and maintain stable signal references for the integrated axis feedback loops.
• Thermal Management: Maintain adequate clearance above and below the module to allow for proper airflow. The drive’s internal cooling system is designed for vertical mounting; blockage will trigger thermal protection faults.
• Wiring Segregation: Route motor power leads and encoder feedback cables in separate conduits. Proximity to high-voltage AC lines may induce noise into the feedback interface, potentially leading to position errors or communication failures within the motion loop.
