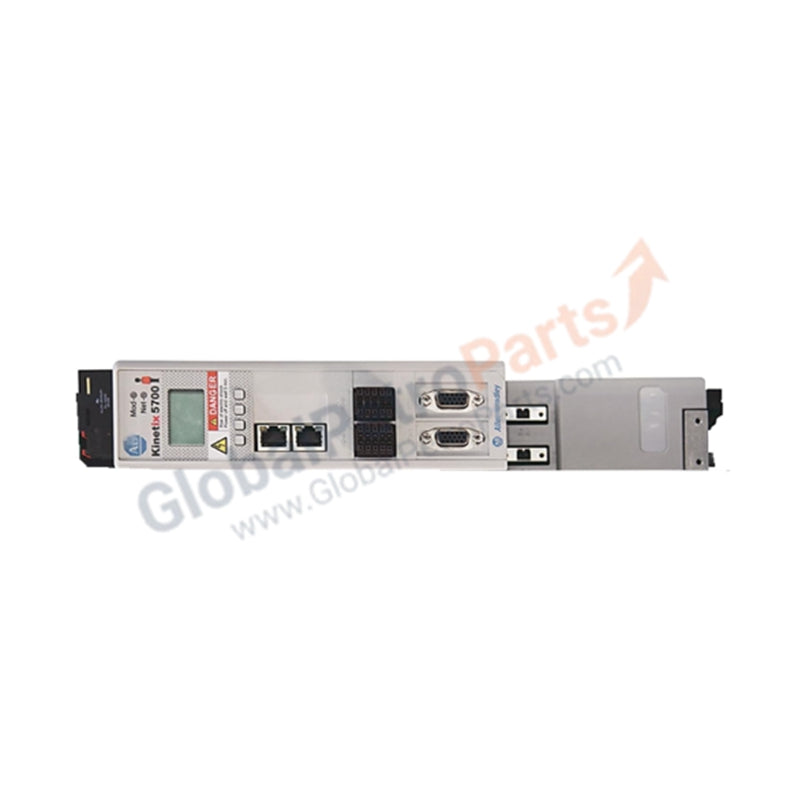

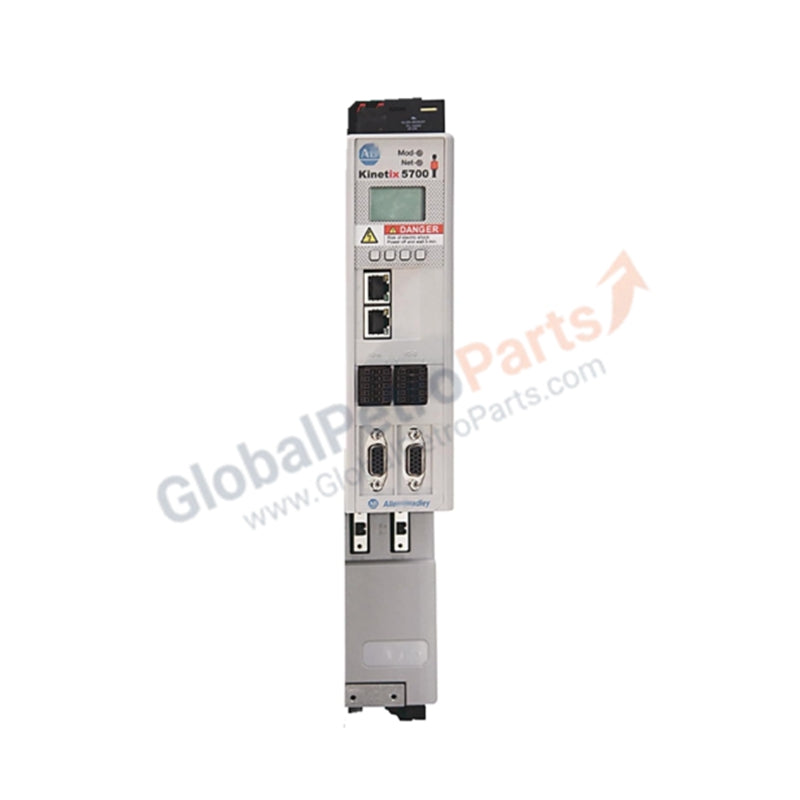

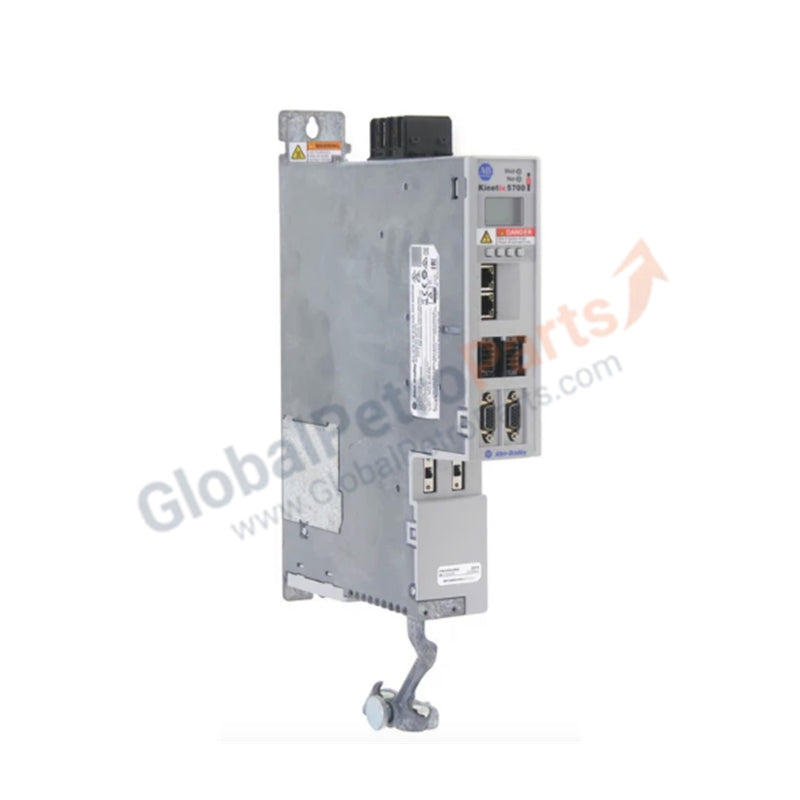

Allen Bradley 2198-D032-ERS3 Kinetix 5700 Dual-Axis Servo Drive Module

Product Overview

The Allen Bradley 2198-D032-ERS3 functions as a high-performance, dual-axis servo drive module within the Kinetix 5700 motion control platform. This compact module regulates two independent servo motors simultaneously from a single physical chassis, streamlining distributed motion control architecture on EtherNet/IP networks. It executes high-speed positioning, speed regulation, and torque control for complex packaging machinery, robotic pick-and-place cells, and continuous manufacturing lines. We guarantee this drive module arrives in 100% brand new, original factory-sealed condition.

Technical Specifications

Engineering Advantages

• High-Density Output in a 55mm Frame: This module controls two separate servo axes while occupying a narrow 55mm physical width. This layout cuts panel space requirements nearly in half compared to traditional single-axis drive installations, allowing engineers to shrink total enclosure dimensions significantly.

• Toolless Snap-Fit Bus Interconnection: The integrated snap-fit bus system replaces tedious manual power wiring between adjacent modules. This design allows quick installation of DC-bus and control power connections via direct plug-in links, accelerating cabinet assembly time and eliminating wiring error vectors.

• Network-Integrated Safety Architecture: The drive executes advanced functional safety commands (including Safe Torque Off) directly over the primary EtherNet/IP network cable. This software-defined safety eliminates hardwired safety relays and separate feedback contactors, reducing installation costs and simplifying field troubleshooting.

• Synchronized Multi-Axis Power Sharing: By utilizing a shared DC-bus architecture, the module routes regenerative braking energy from a decelerating axis directly into an accelerating axis. This internal balancing mechanism minimizes energy waste and drastically reduces thermal load inside sealed electrical cabinets.

FAQs

• Does this 2198-D032-ERS3 drive module arrive with original factory seals?

  Yes. We ship this motion module as a 100% brand new, authentic factory item inside its original Rockwell Automation box. The unit remains sealed within its protective anti-static wrap, accompanied by all default factory barcode labels and physical installation manuals.

• What is the structural advantage of the "-ERS3" designation over standard models?

  The "-ERS3" designation indicates integrated safety over EtherNet/IP capability. Unlike base models that require dedicated hardwired safety circuits, this version monitors and executes safety functions through standard EtherNet/IP communication profiles via Studio 5000 software.

• Can I drive two completely different motor sizes with this single dual-axis card?

  Yes. The internal control loops operate independently for each channel. You can configure and tune individual motor profiles (such as matching a small rotary motor to axis A and a larger linear actuator to axis B) within Studio 5000, provided each load falls within the 13A/8kW limits.

• What mounting orientation does this module require for adequate cooling?

  You must install the 2198-D032-ERS3 vertically on a flat, grounded backplate. Maintain the manufacturer-specified clear space above and below the chassis vents to allow the internal cooling fans to move air efficiently and prevent localized overheating.
