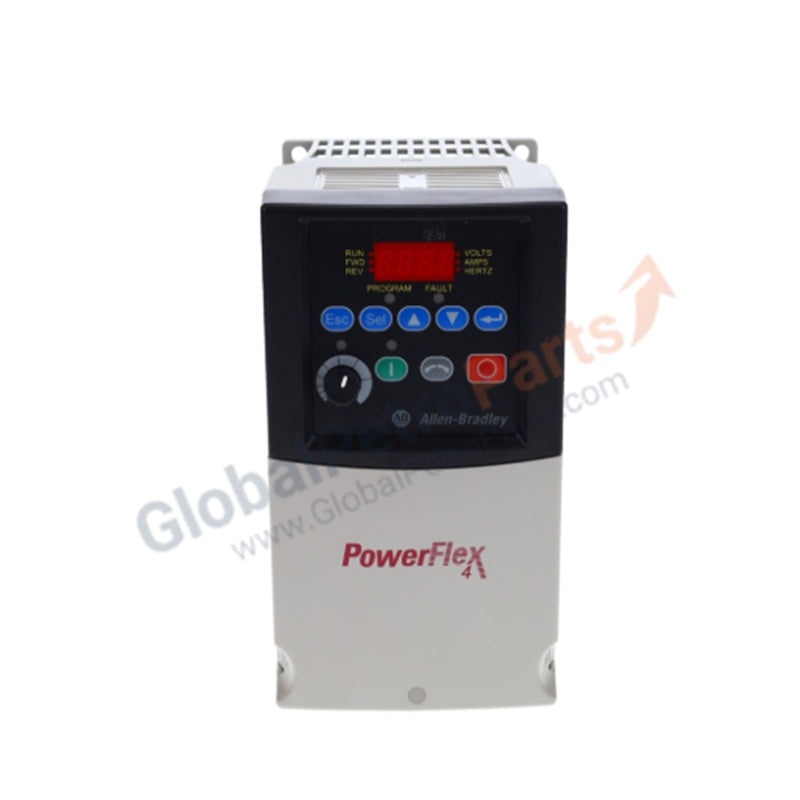

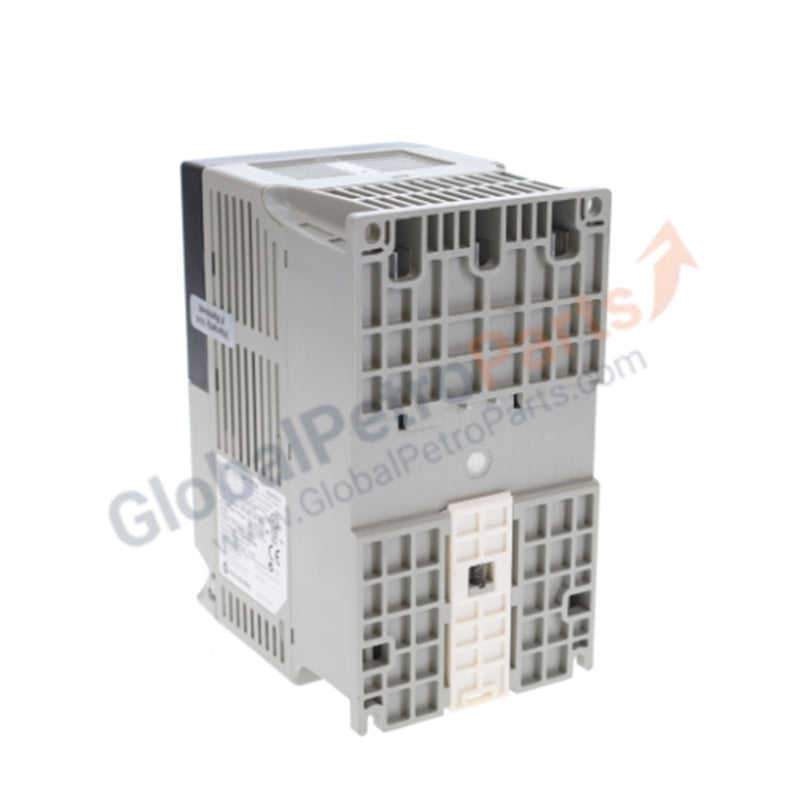

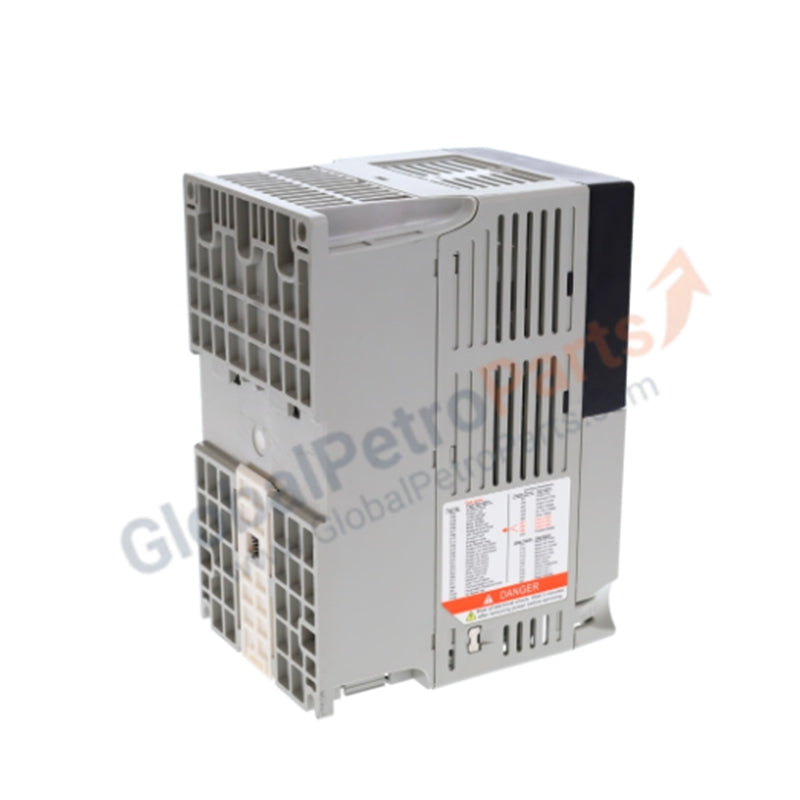

Allen-Bradley 22A-A4P5N104 PowerFlex 4 AC Drive

Configured for precision motor control and torque management, the Allen-Bradley 22A-A4P5N104 (22A-A4P5N104 AC Drive) provides direct physical/electrical execution of frequency modulation for 3-phase AC induction motors.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and Firmware Compatibility

The 22A-A4P5N104 integrates into industrial control architectures via its built-in RS485 communication interface, supporting daisy-chain network topologies. Deterministic network performance is maintained through strict firmware flash compatibility with host controllers, ensuring reliable command execution over the backplane bus or optional fieldbus adapters. The drive supports I/O density scaling via programmable discrete and analog terminals (0-10 V or 4-20 mA), which allow for dynamic parameter configuration without requiring physical keypad interaction. Firmware versions must be verified against host control systems to ensure handshake protocols remain compliant during high-speed data exchange.

Frequently Asked Questions

Q: Does this drive support dynamic braking?

A: No. The 'N' suffix indicates the absence of an internal IGBT dynamic brake mechanism. For applications requiring rapid deceleration or high inertia stopping, an external braking unit is required.

Q: Can the drive be controlled via remote industrial networks?

A: Yes. While the unit includes a built-in RS485 port, it supports various optional communication cards, allowing integration with Profibus DP, DeviceNet, and EtherNet/IP networks.

Field Installation Guidelines

• Thermal Management: Install the drive in a vertical orientation to maximize air circulation. Ensure that ambient temperatures remain within specified limits to avoid thermal derating.
• Shielding and Grounding: Use shielded, twisted-pair cabling for all analog inputs (4-20 mA) and communication lines. Terminate cable shields at the designated ground lug to minimize common-mode noise.
• Wiring Separation: Route high-voltage power lines and low-voltage control/communication cables through separate conduit runs to prevent electromagnetic interference (EMI).
• Terminal Integrity: Verify that all power and I/O terminal connections are secured to the recommended torque values. Loose terminals can lead to intermittent signal loss or overheating under full load conditions.
• ESD Protection: Use an anti-static wrist strap during any internal configuration or communication card installation to protect sensitive electronic components from static damage.
