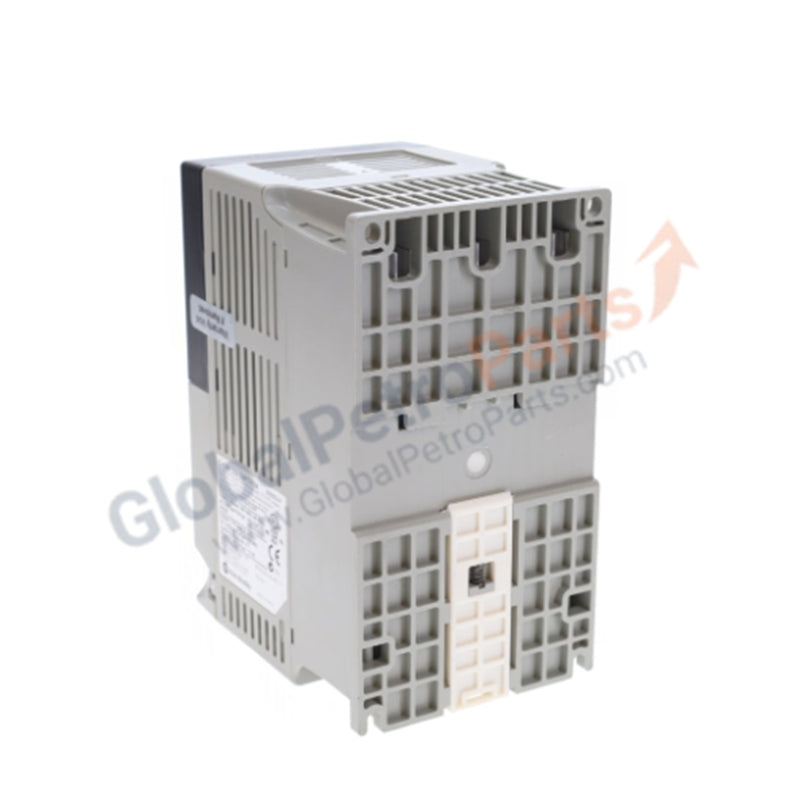

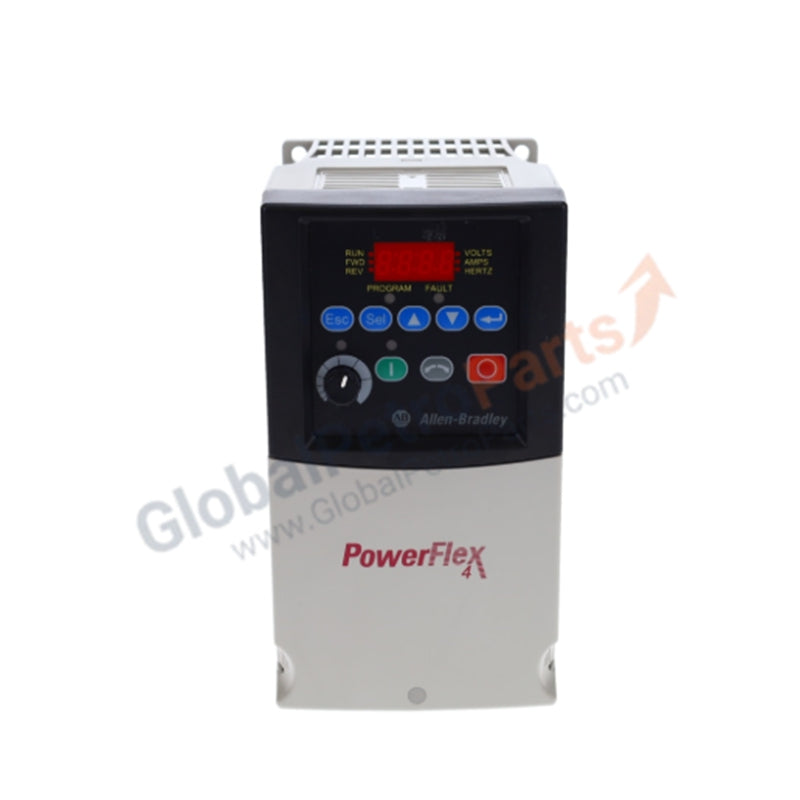

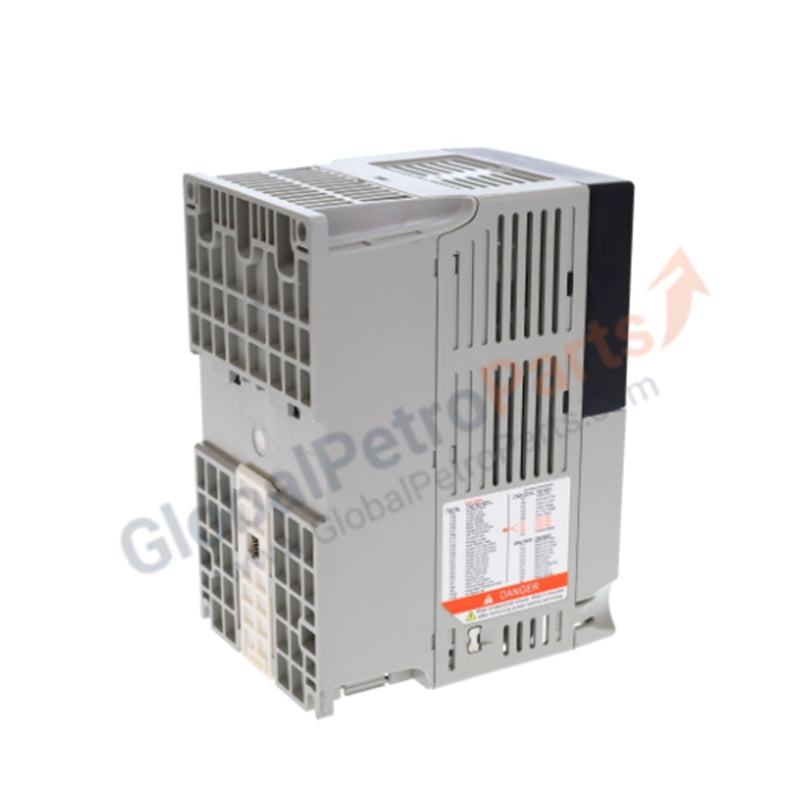

Allen-Bradley 22A-D8P7N104 PowerFlex 4 VFD 3.7 kW (5 HP) AC Drive

Product Description

The 22A-D8P7N104 is a compact and high-efficiency adjustable frequency AC drive from the Allen-Bradley PowerFlex 4 series. This Variable Frequency Drive (VFD) is specifically engineered to provide flexible motor speed control for three-phase industrial applications requiring up to 3.7 kW (5 HP) of output power.

Featuring a space-saving design, the 22A-D8P7N104 (Frame B) utilizes a 480V AC three-phase input to deliver precise performance for machine-level control. It includes an integrated keypad and potentiometer for immediate out-of-the-box operation, while its versatile programming options allow for seamless integration into sophisticated automated architectures via RS-485 communications.

Detailed Technical Specifications

• Model Number: 22A-D8P7N104

• Brand: Allen-Bradley / Rockwell Automation

• Product Family: PowerFlex 4

• Power Rating: 3.7 kW (5.0 HP)

• Output Current: 8.7 Amps

• Input Voltage: 380–480V AC, 3-Phase

• Output Voltage: 0–460V AC, 3-Phase

• Frame Size: Frame B

• Enclosure Rating: IP20, NEMA/UL Type Open

• Control Interface: Fixed Keypad and Local Potentiometer

• Communication Port: Integral RS-485

• Overload Capability: 150% for 60 seconds

• Frequency Range: 0 to 240 Hz

• Operating Temperature: -10 to 50 degrees Celsius (14 to 122 degrees Fahrenheit)

• Mounting Type: Panel Mount or DIN Rail

Industrial Applications

The 22A-D8P7N104 is ideally suited for OEMs and system integrators looking for a cost-effective speed control solution. It is commonly deployed in conveyor systems, industrial fans, centrifugal pumps, and basic material handling equipment where precise torque and velocity regulation are essential for operational efficiency.

Professional FAQ

• Does this model include an internal EMC filter?

  The 22A-D8P7N104 variant does not feature an internal filter. For applications requiring stringent electromagnetic compatibility, an external line filter is recommended.

• Can I mount multiple PowerFlex 4 drives side-by-side?

  Yes, the PowerFlex 4 series supports "Zero Stacking" mounting, which allows for minimal clearance between drives to maximize cabinet space, provided the ambient temperature is within the specified limits.
