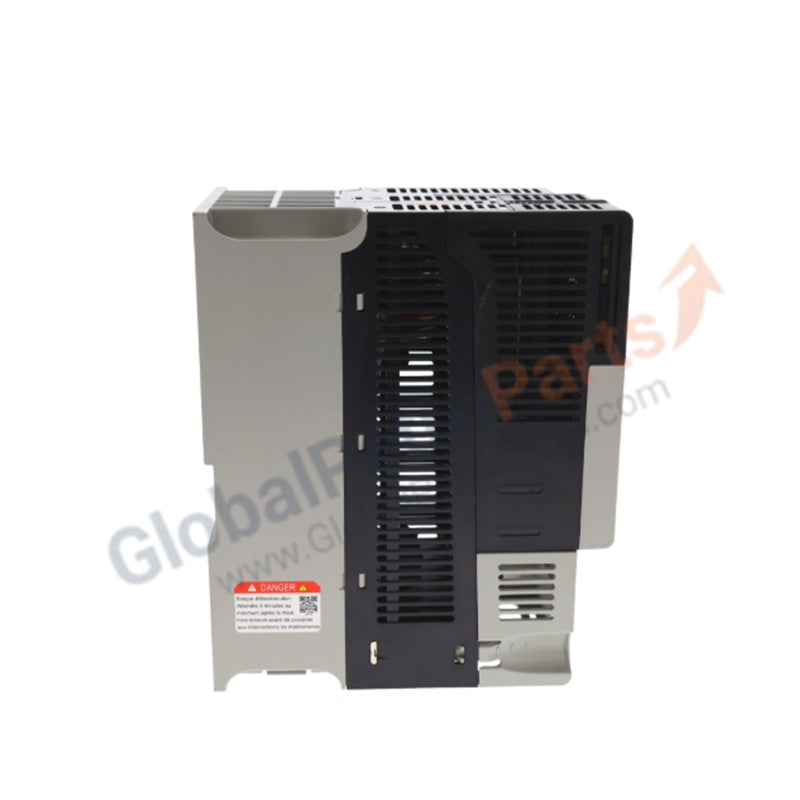

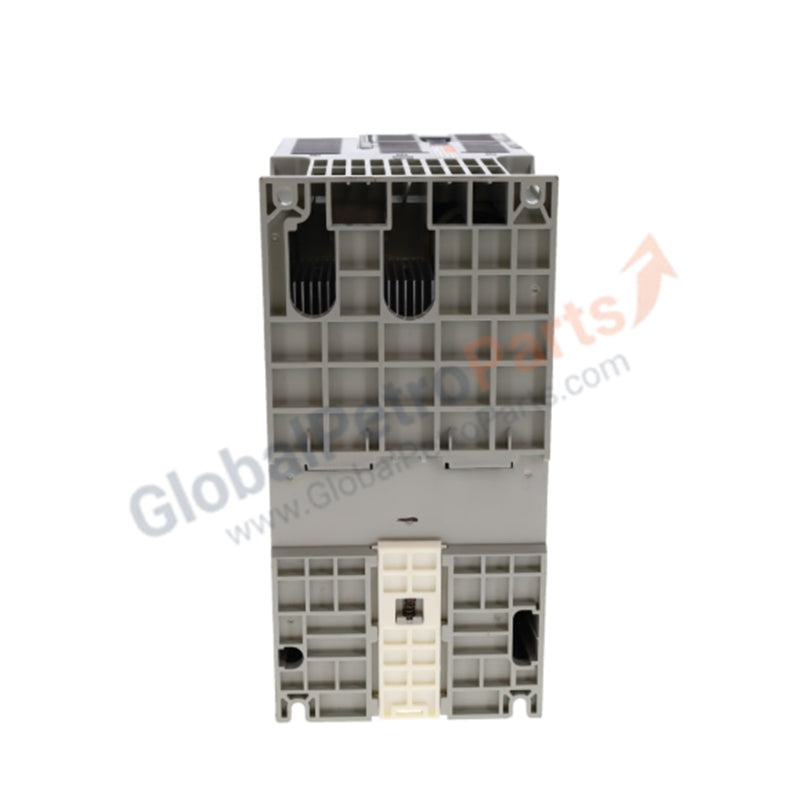

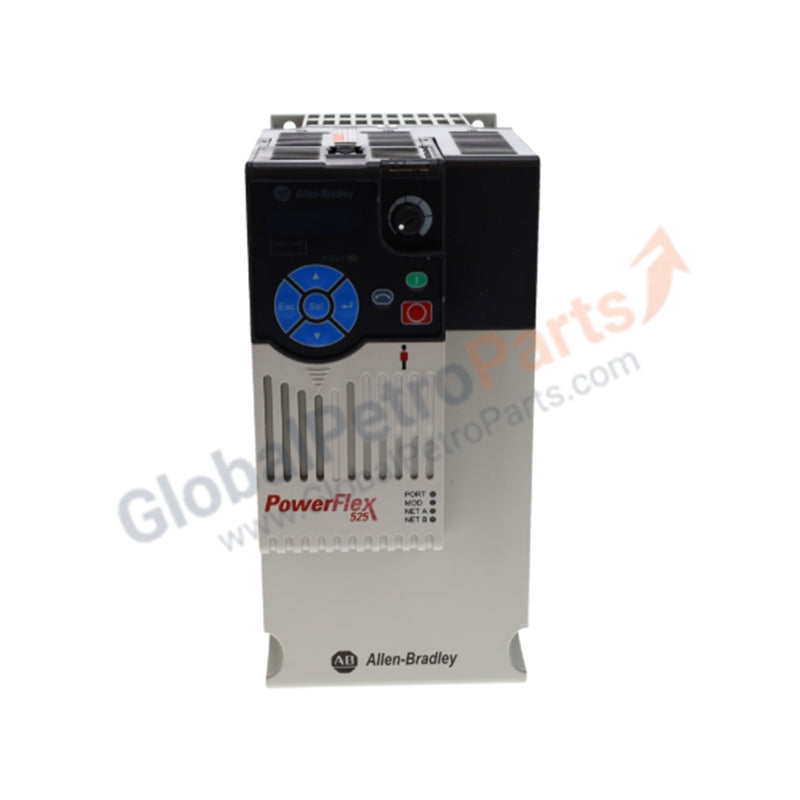

Allen-Bradley 25B-D013N104 PowerFlex 525 AC Drive

Configured for variable frequency motor speed control in industrial drive systems, the Allen-Bradley 25B-D013N104 (25B-D013N104 AC Drive) provides direct physical/electrical execution of vector control algorithms.

Suffix Breakdown & Model Matrix

The 25B-D013N104 utilizes the "25B" prefix indicating the PowerFlex 525 product family. The "D013" designation specifies a 13 A nominal output current rating within a Frame Size C chassis. The "N104" suffix defines the hardware configuration as a 3-phase input, 380-480 V AC, IP20 rated unit, equipped with a standard interface module and no integrated EMC filtering.

Hardware Specifications

PLC and Drives: V/Hz and Field-Oriented Vector Control

The PowerFlex 525 architecture supports advanced motor control via sensorless vector control and V/Hz algorithms, allowing for high torque production at low speeds. The internal drive logic performs real-time field-oriented vector calculations to optimize flux and torque current components. System integration relies on the drive's backplane bus communication velocity to process command data from the controller. Field firmware flash compatibility ensures that the drive remains compatible with contemporary PLC platforms, while parameter setpoints for acceleration and deceleration ramps are mapped to deterministic internal processing loops to maintain application stability.

Frequently Asked Questions (FAQ)

Q: What are the thermal derating requirements for this drive?

A: Operation within -20 to 50 deg C is permitted without derating. If the ambient temperature exceeds 50 deg C, the carrier frequency must be reduced and current output derated according to the manufacturer technical manual to prevent excessive thermal stress on the internal power module.

Q: Can this drive be used in a shared DC bus configuration?

A: The standard 25B-D013N104 model is not inherently configured for shared DC bus architectures. Attempting to parallel DC buses without specific hardware isolation and external pre-charge circuitry may damage the drive input bridge.

Field Installation Guidelines

• Mounting Orientation: The drive must be mounted in a vertical position on a flat, non-combustible surface to ensure optimal thermal dissipation through the heat sink. Maintain minimum clearance distances of 100 mm above and below the unit for airflow.

• Wiring Standards: Use shielded motor cables to mitigate high-frequency electromagnetic interference. The cable shield must be terminated to the drive chassis ground point using a 360-degree connection.

• Input Power: Ensure the incoming 3-phase 380-480 V AC supply is protected by appropriate fuses or circuit breakers as specified in the local electrical code. The ground lug must be securely connected to the building earth grid to provide a low-impedance path for fault currents.

• Shielding: Do not route control signal cabling (e.g., 4-20 mA or I/O) in the same conduit as the motor output power leads, as this will induce noise and cause command signal instability.
