Allen-Bradley 2711-K5A2X Operator Interface | PanelView 550

Product Overview

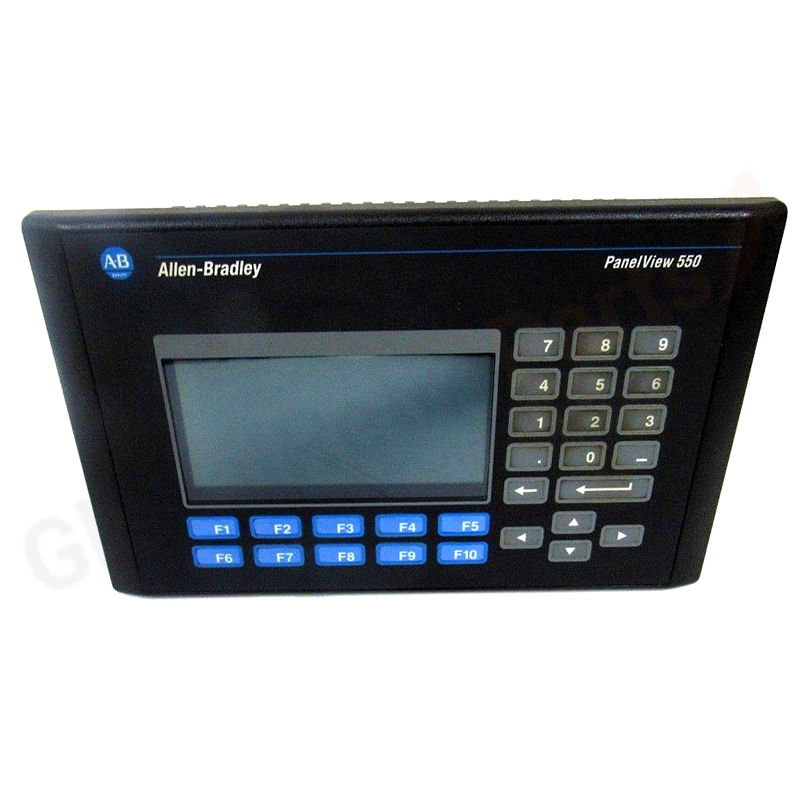

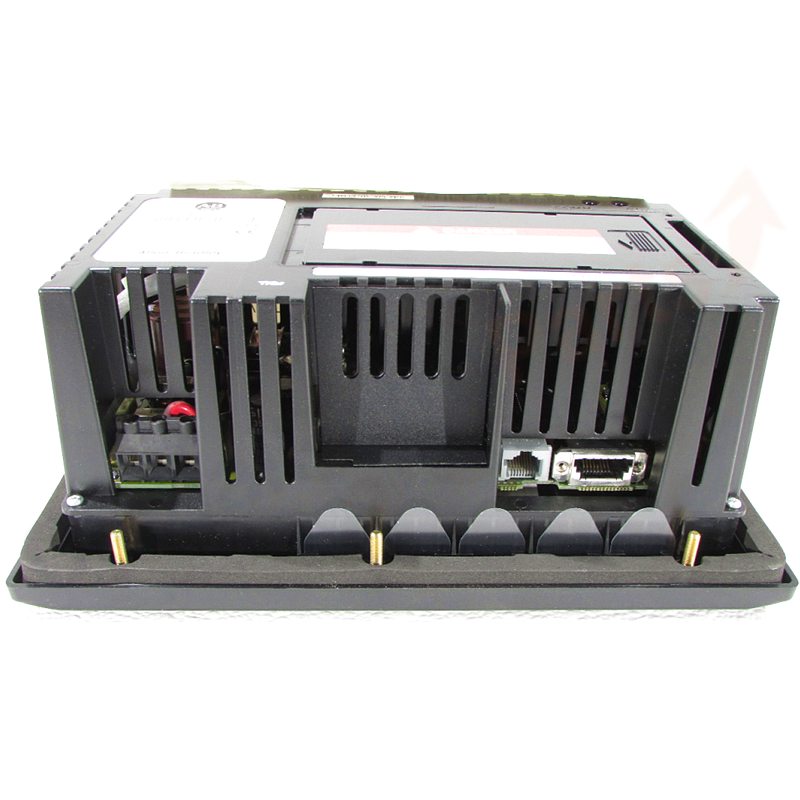

The Allen-Bradley 2711-K5A2X is a PanelView 550 monochrome keypad operator terminal featuring a 5.5-inch display, DH-485 communication, and AC power input. It provides reliable, compact HMI functionality for legacy MicroLogix and SLC 500 automation systems.

Key Specifications

• Product Family: PanelView 550
• Model Type: PanelView 550 Monochrome/Keypad
• Display Size: 5.5 inches
• Display Type: Monochrome
• Input Type: Keypad only
• Communication: DH-485
• Power Input: AC (100–240V AC, 0.25–0.51A)
• Software: PanelBuilder 32
• Dimensions: 11.0 × 7.0 × 4.0 in (27.9 × 17.8 × 10.2 cm)
• Weight: 2 lbs 11.2 oz (1.2 kg)
• Country of Manufacture: United States
• Series: H (2711-K5A2X/H)
• Alternate Part Numbers: 2711-K5A2 Series H

Features & Benefits

• Compact Monochrome Display: 5.5-inch screen provides essential process information in a small footprint
• Durable Keypad Interface: Membrane keypad designed for industrial environments and gloved operation
• DH-485 Network: Reliable communication with MicroLogix and SLC 500 controller platforms
• Wide AC Input Range: 100–240V AC accommodates global power standards
• Lightweight Design: 1.2 kg weight simplifies panel mounting and installation
• Proven PanelView Platform: Well-established HMI family with extensive installed base

Applications

• MicroLogix system operator panels
• SLC 500 controller interfaces
• Small machine HMI stations
• Legacy system maintenance and replacement
• Cost-sensitive automation projects

Installation Guide

1. Panel Cutout: Prepare panel cutout per the PanelView 550 installation template (approximately 11 × 7 in front panel).
2. Mounting: Secure terminal using provided mounting clips. Verify panel thickness compatibility.
3. Power Connection: Connect 100–240V AC (0.25–0.51A) to the power terminals.
4. DH-485 Wiring: Connect to DH-485 network using shielded twisted-pair cable per network specifications.
5. Keypad Programming: Assign keypad functions using PanelBuilder 32 for navigation, data entry, and command execution.
6. Application Download: Load HMI application to terminal via DH-485 network or serial connection.

FAQ

Q: What does the "X" suffix indicate in 2711-K5A2X?
A: The "X" typically indicates a specific hardware revision or packaging variant. The terminal is functionally equivalent to 2711-K5A2/H.

Q: Is the 2711-K5A2X compatible with PanelView Plus software?
A: No. This terminal uses PanelBuilder 32 for application development, not FactoryTalk View ME.

Q: Can I add a touchscreen to this terminal?
A: No. The 2711-K5A2X is keypad-only. For touchscreen capability, select the 2711-T5A or 2711-B5A series.

Q: Is this terminal still manufactured?
A: No. The PanelView 550 is discontinued. Available through surplus and refurbishment channels.

Selection Tips

• Verify DH-485 network infrastructure exists for controller communication
• Confirm AC power (100–240V) availability
• Ensure PanelBuilder 32 software is available for application development
• Consider keypad-only vs. touchscreen requirements for the application
• For new installations, evaluate PanelView Plus 600 or 700 series with Ethernet
