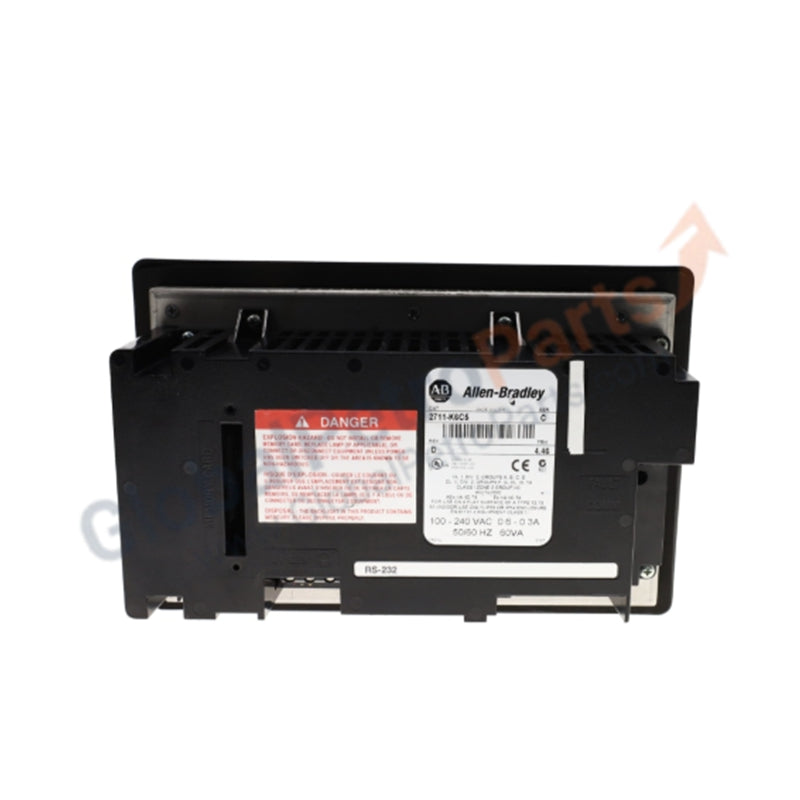

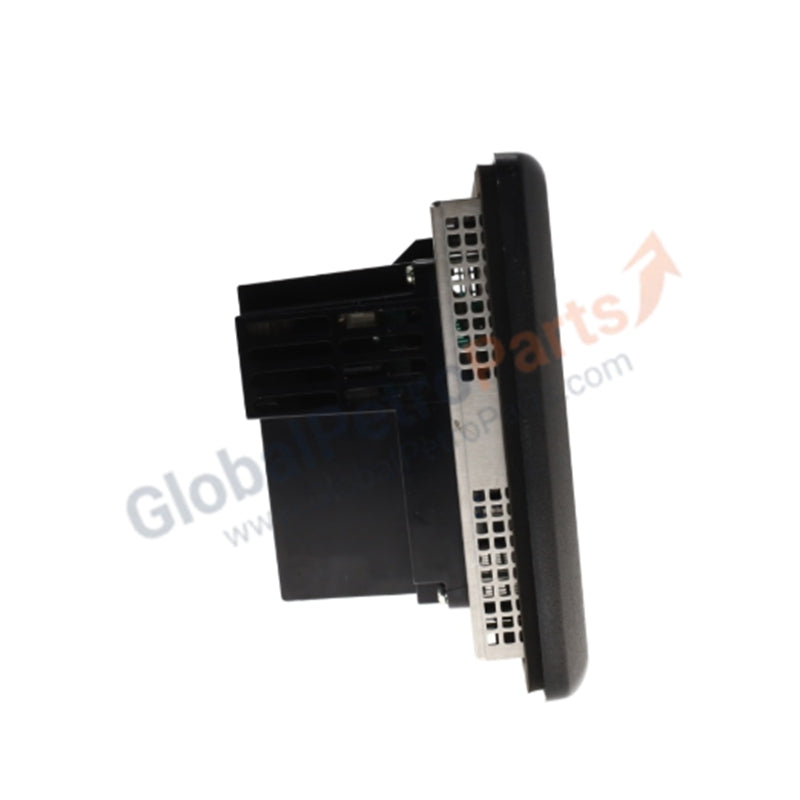

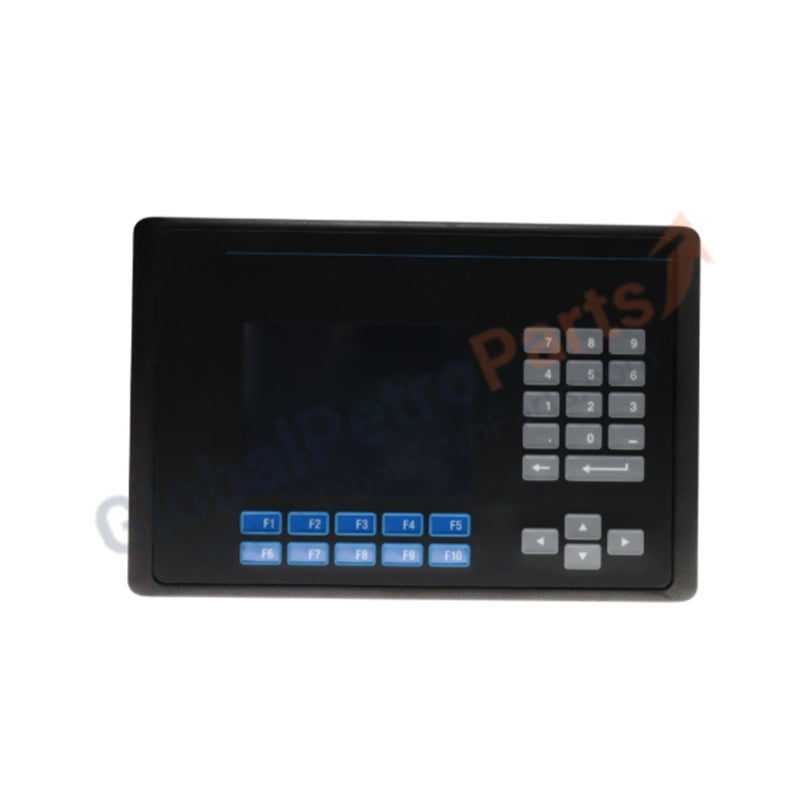

Allen-Bradley 2711-K6C10 PanelView 600 Operator Terminal

Configured for machine-level HMI interaction and data visualization, the Allen-Bradley 2711-K6C10 (2711-K6C10 PanelView 600) provides direct physical/electrical execution of interface logic and process monitoring via a 5 inch color display.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks and Firmware Compatibility

The 2711-K6C10 utilizes integrated DeviceNet connectivity to support deterministic data exchange with SLC, PLC, and ControlLogix platforms. The module supports baud rates of 125k, 250k, and 500k, employing cyclic, polled, and change-of-state messaging formats. To maintain system stability, firmware flash compatibility must be validated against the specific revision of the DeviceNet Scanner Module present on the link. I/O density scaling is managed through direct data access, which reduces reliance on complex ladder logic for tag visualization. The device is fully certified for DeviceNet compliance, ensuring standardized communication latencies and compatibility within integrated networks.

Frequently Asked Questions

Q: Does the unit support field-replaceable components?

A: Yes. The internal backlight module (part number 2711-NL3) is field-replaceable. Ensure power is disconnected and proper electrostatic discharge (ESD) precautions are taken before housing disassembly.

Q: Is the DeviceNet communication port compatible with all controller types?

A: The terminal connects to any PLC, SLC, or ControlLogix controller via a DeviceNet Scanner Module. Communication is established through explicit or I/O messaging depending on the required polling configuration.

Field Installation Guidelines

• Power Requirements: Ensure the input power source is within the 85-264 VAC range. Verify that the power connection is isolated from high-interference industrial loads to prevent screen flickering or logic resets.
• Panel Mounting: Utilize the provided mounting hardware to ensure an airtight seal between the terminal bezel and the cabinet cutout to maintain the specified enclosure rating.
• Communication Wiring: When connecting to the DeviceNet link, ensure the cable (2711-NC14) is properly shielded and grounded at one point to minimize noise. Avoid routing communication cables in parallel with high-voltage AC lines.
• Baud Rate Matching: Ensure the terminal baud rate is set to match the DeviceNet Scanner Module (125k, 250k, or 500k). Mismatched rates will prevent the terminal from joining the network.
• Memory Management: Given the 240 KB memory limit, optimize screen object usage to prevent application overhead, which can slow down message response times during cyclic polling.
