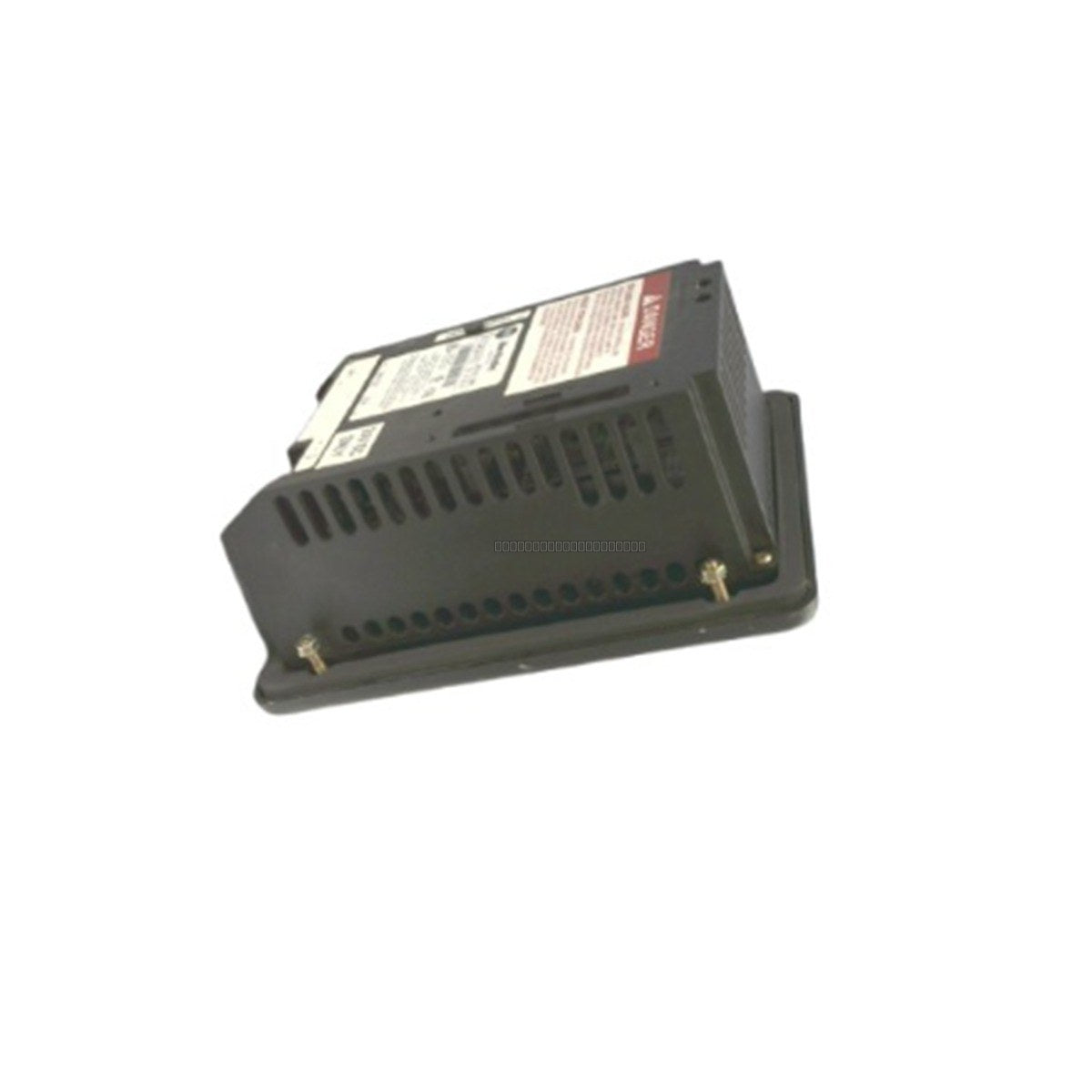

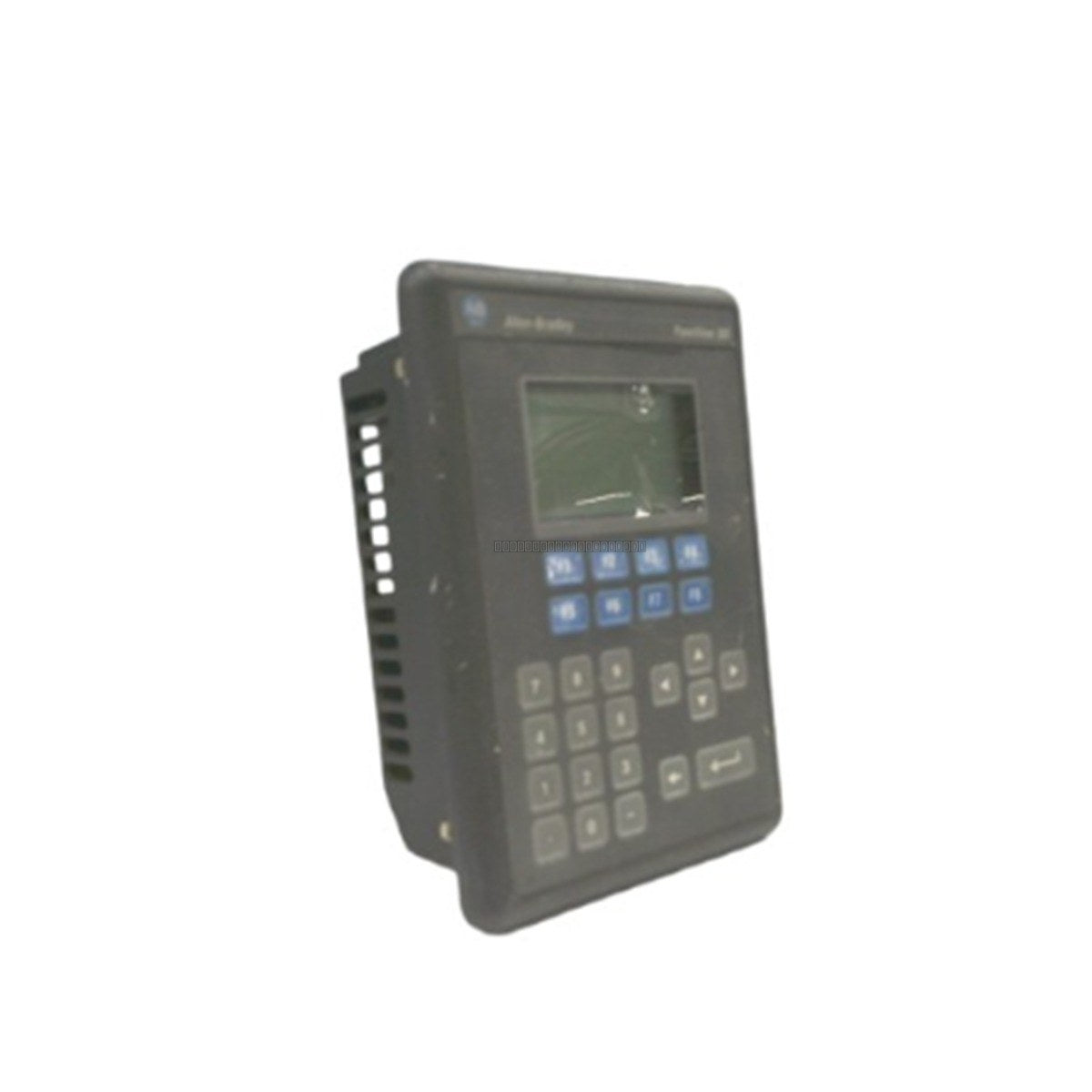

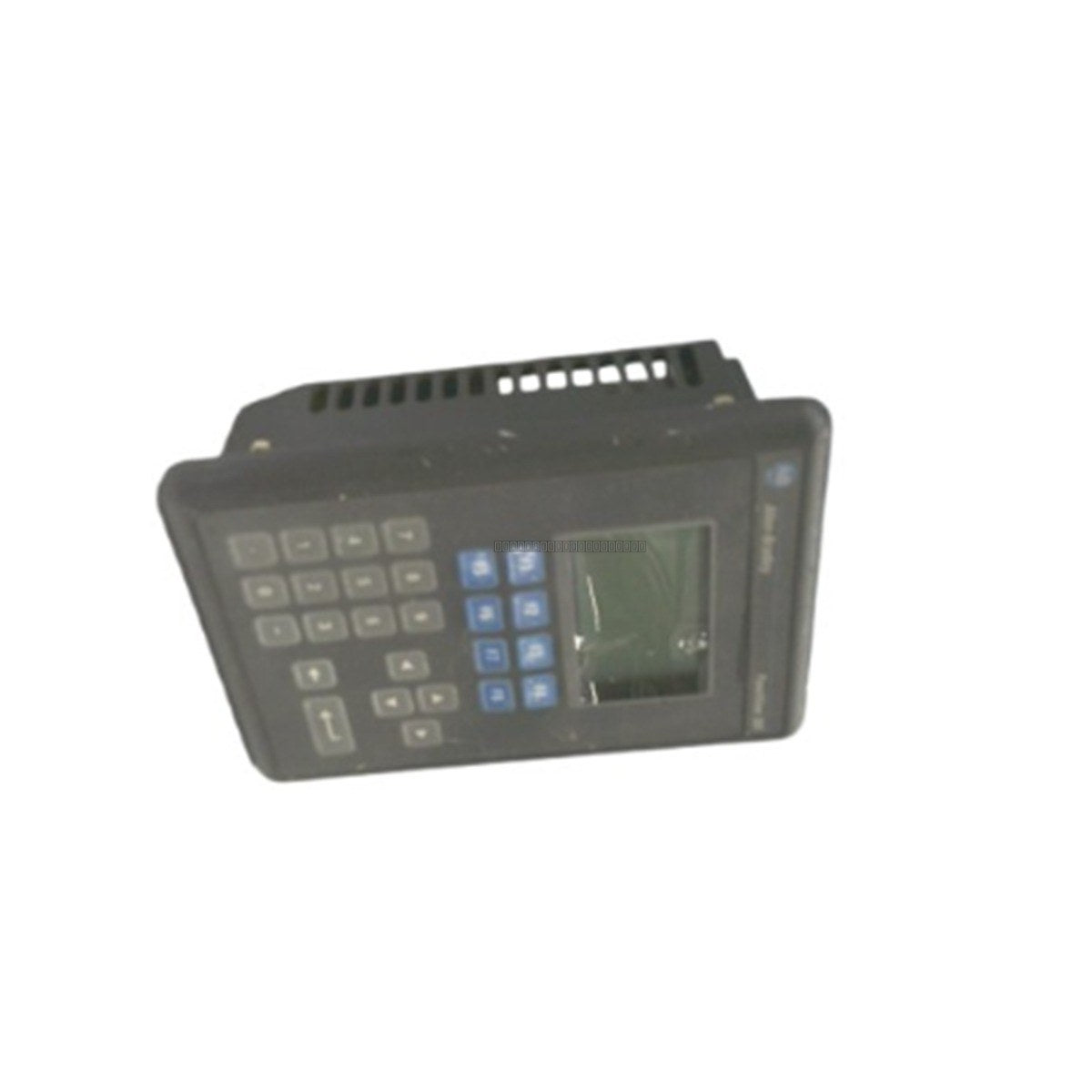

Allen-Bradley 2711-K6C15L1 PanelView 600 Operator Terminal

Description

The Allen-Bradley 2711-K6C15L1 is a PanelView 600 operator terminal designed for industrial human-machine interface (HMI) applications. As a legacy unit, it provides reliable process monitoring and control for machinery in various automation environments. This terminal features a 5-inch color display and a tactile keypad, allowing operators to interact with controllers and manage machine operations efficiently.

Features

• 5-inch color display for clear visualization of process data.
• Integrated keypad for robust operator input in industrial settings.
• Supports ControlNet communication for high-speed, deterministic data exchange.
• Includes an RS-232 printer port for local documentation and reporting.
• Supports symbolic CIP addressing when integrated with ControlLogix systems.
• Integrated Network Access port for direct local entry to the ControlNet network.

Applications

This operator terminal is typically deployed in legacy automation systems requiring ControlNet architecture. It is suitable for monitoring machine status, adjusting setpoints, and managing alarm conditions in manufacturing, material handling, and process control applications.

Technical Specifications

Installation Guidelines

• Ensure the terminal is mounted in a suitable enclosure that meets the required NEMA/IP rating for the environment.
• Verify that the power supply provides a stable 18-32 VDC and is properly fused according to local electrical codes.
• Use shielded cables for ControlNet and RS-232 connections to minimize electromagnetic interference (EMI).
• Maintain adequate clearance around the unit to ensure proper ventilation and cooling during operation.
• Power down the system before connecting or disconnecting communication cables or power leads to prevent electrical damage.
• Handle the unit with standard ESD precautions during installation and maintenance.

FAQ

Is the 2711-K6C15L1 still in production?

No, this model is considered a discontinued product. It is primarily sourced for legacy system maintenance and replacement of existing units.

What communication protocols does this terminal support?

The 2711-K6C15L1 supports ControlNet for controller communication and includes an RS-232 port specifically for printer connectivity.
