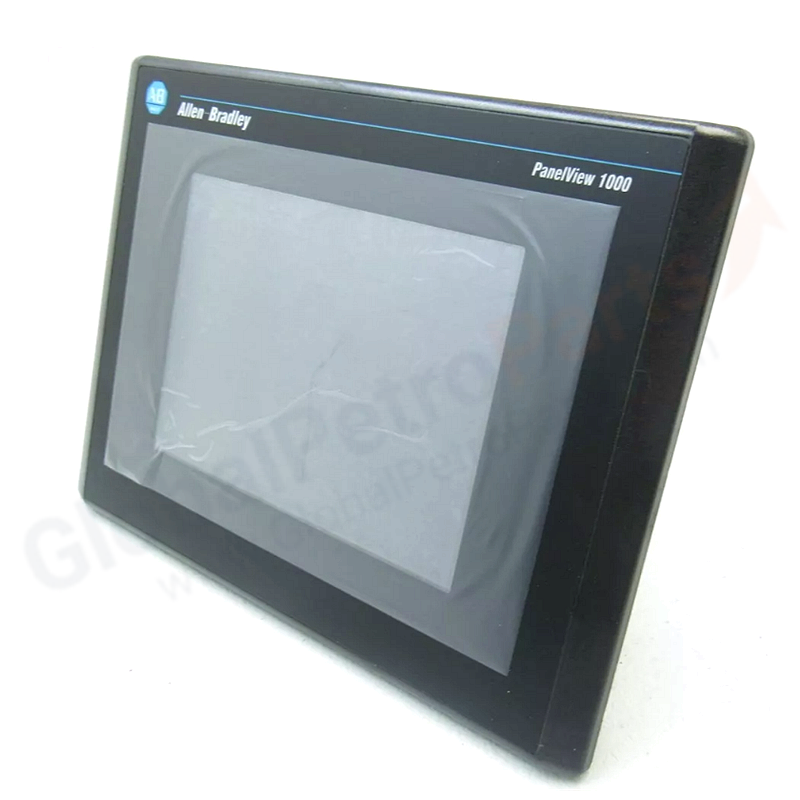

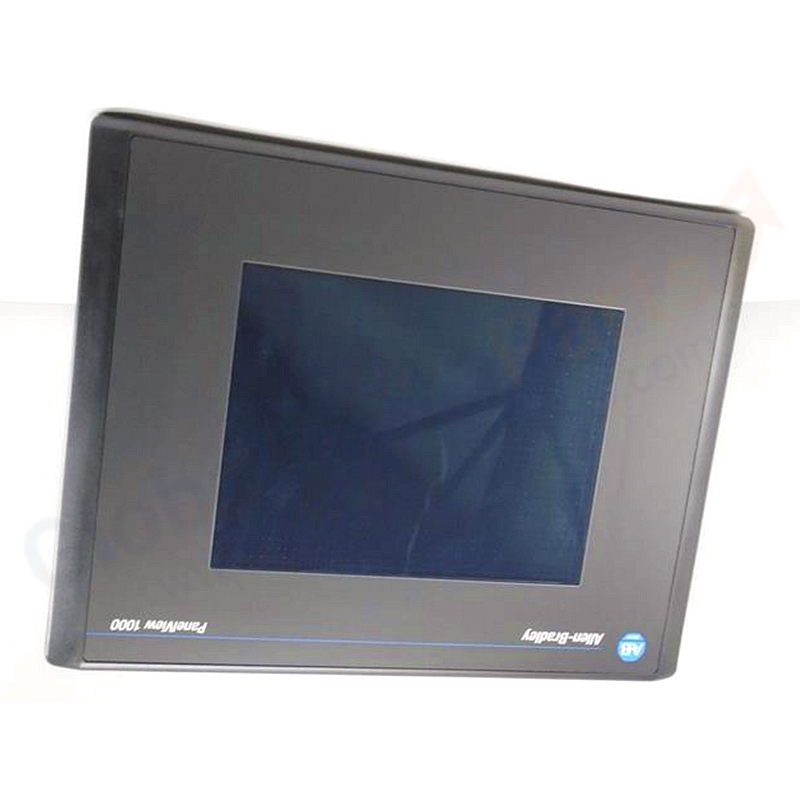

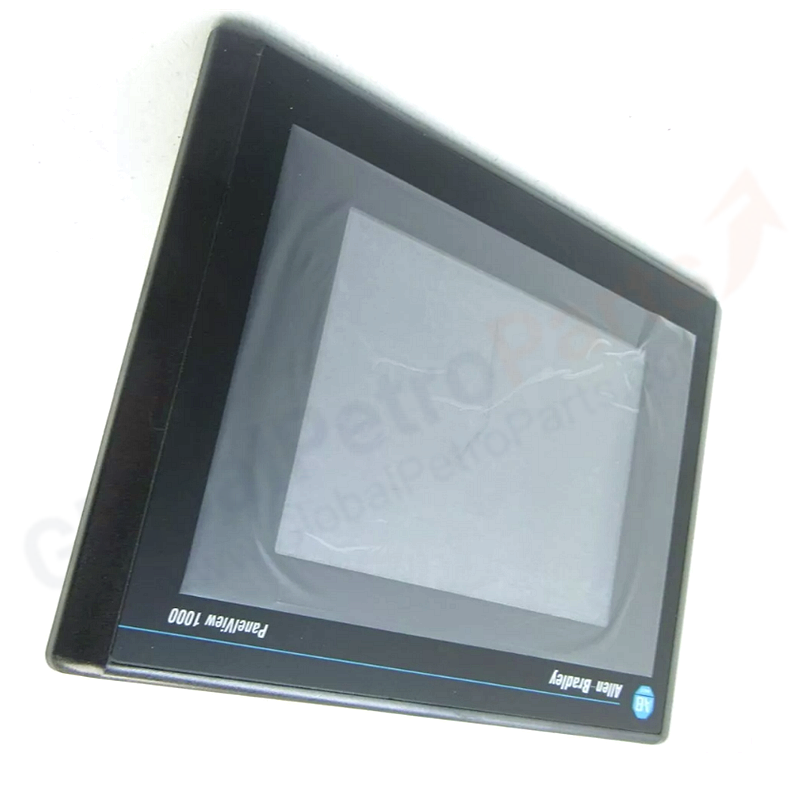

Allen-Bradley 2711-T10C15L1 PanelView 1000 Standard Operator Terminal

Product Overview

The Allen-Bradley 2711-T10C15L1 is a PanelView Standard 1000 operator terminal featuring a 10.4-inch color TFT touchscreen display with 640 × 480 VGA resolution. It provides ControlNet and RS-232 communication, operates on 24V DC power, and delivers reliable HMI functionality for industrial automation applications requiring medium-sized color displays.

Key Specifications

• Product Family: PanelView Standard 1000
• Display Size: 10.4 inches
• Display Type: Active Matrix Thin-Film Resistor (TFT) with CCFL Backlight
• Display Area: 211 × 158 mm (8.3 × 6.2 in)
• Resolution: 640 × 480 pixels (VGA)
• Backlight Life: 100,000 hours LED backlight
• Touchscreen: 384 touch cells (24 columns × 16 rows)
• Touch Cell Size: 26 × 30 pixels
• Input Type: Touchscreen
• Communication Ports: ControlNet; RS-232 (printer)
• Input Voltage Range: 18–32V DC (24V DC nominal)
• Application Memory: 1008 KB (application screens)
• Operating Temperature: 0–55 °C (32–131 °F)
• Storage Temperature: −25 to 70 °C (−13 to 158 °F)
• Relative Humidity: 5–95% non-condensing
• Shock: 15 g operational, 30 g non-operational
• Vibration: 2 g up to 2000 Hz
• Heat Dissipation: 39 W (132 BTU/hr)
• Enclosure Type: NEMA Type 12/13 or 4X
• Dimensions: 370 mm (W) × 282 mm (H) × 112 mm (D)
• Panel Cutout: 338 mm (W) × 257 mm (H)
• Weight: 2.72 kg
• Product Line: PanelView 1000
• Display Color: Multi-Color

Features & Benefits

• 10.4" Color TFT Display: VGA resolution provides clear, detailed process visualization for medium-complexity HMI applications
• ControlNet Communication: High-speed deterministic network for real-time control and I/O messaging
• RS-232 Printer Port: Dedicated serial port for alarm/event printing and report generation
• Long-Life Backlight: 100,000-hour LED backlight minimizes maintenance and replacement downtime
• Robust Environmental Rating: NEMA 12/13/4X enclosure rating for industrial washdown and dust protection
• Wide Temperature Range: 0–55 °C operating temperature supports diverse industrial environments

Applications

• Process control and monitoring
• Manufacturing line visualization
• Batch control operator interfaces
• Water/wastewater treatment HMI
• Food and beverage production
• Machine control panels

Installation Guide

1. Panel Cutout: Prepare panel cutout of 338 × 257 mm (13.29 × 10.11 in) using the provided template.
2. Mounting: Secure the terminal to the panel with mounting clips. Ensure proper torque for NEMA seal integrity.
3. Power Connection: Connect 24V DC (18–32V DC range) to the power input terminals. Verify polarity.
4. ControlNet Connection: Connect ControlNet coaxial cable to the BNC connectors for network integration.
5. RS-232 Printer Setup: Connect serial printer to the RS-232 port for alarm and event logging.
6. Application Loading: Develop HMI application using PanelBuilder 32 software and download via ControlNet or removable media.
7. Environmental Protection: Install in NEMA-rated enclosure maintaining 0–55 °C operating temperature.

FAQ

Q: What network does the 2711-T10C15L1 use?
A: This terminal features ControlNet communication for deterministic real-time control network connectivity.

Q: Can I use Ethernet with this terminal?
A: No. The 2711-T10C15L1 supports ControlNet and RS-232 only. For Ethernet, consider the 2711-T10C20L1 or PanelView Plus models.

Q: What is the application memory capacity?
A: The terminal provides 1008 KB of application memory for HMI screens and graphics.

Q: Is the backlight user-replaceable?
A: Yes. The CCFL backlight is field-replaceable, with a 100,000-hour rated life.

Selection Tips

• Verify ControlNet network infrastructure exists at the installation site
• Confirm 24V DC power supply capacity (39W heat dissipation)
• Ensure panel cutout dimensions (338 × 257 mm) are compatible with enclosure design
• Check application memory requirements against 1008 KB capacity
• For Ethernet connectivity, evaluate 2711-T10C20L1 or PanelView Plus alternatives
