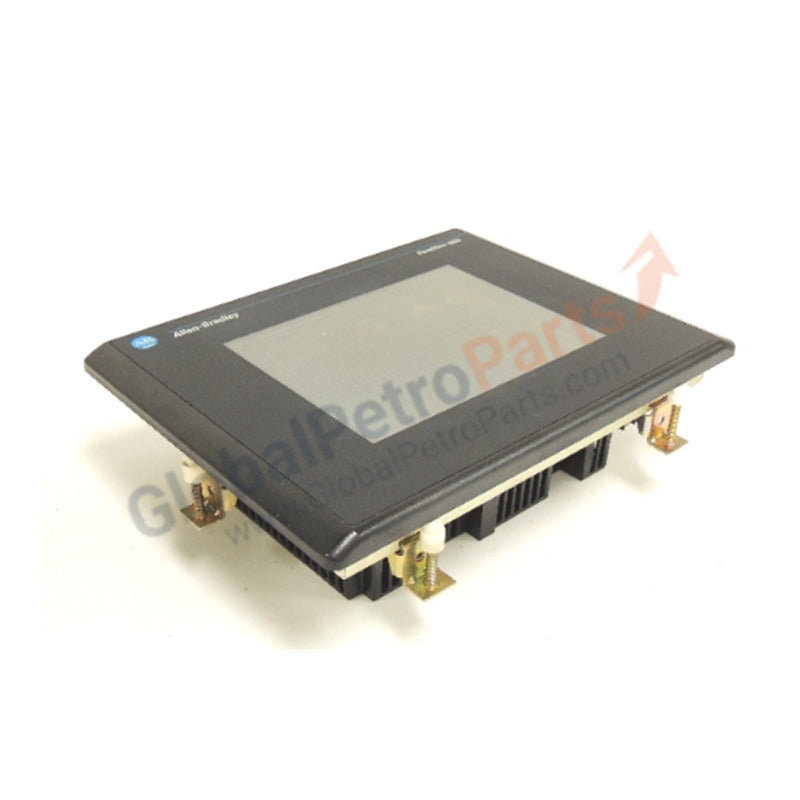

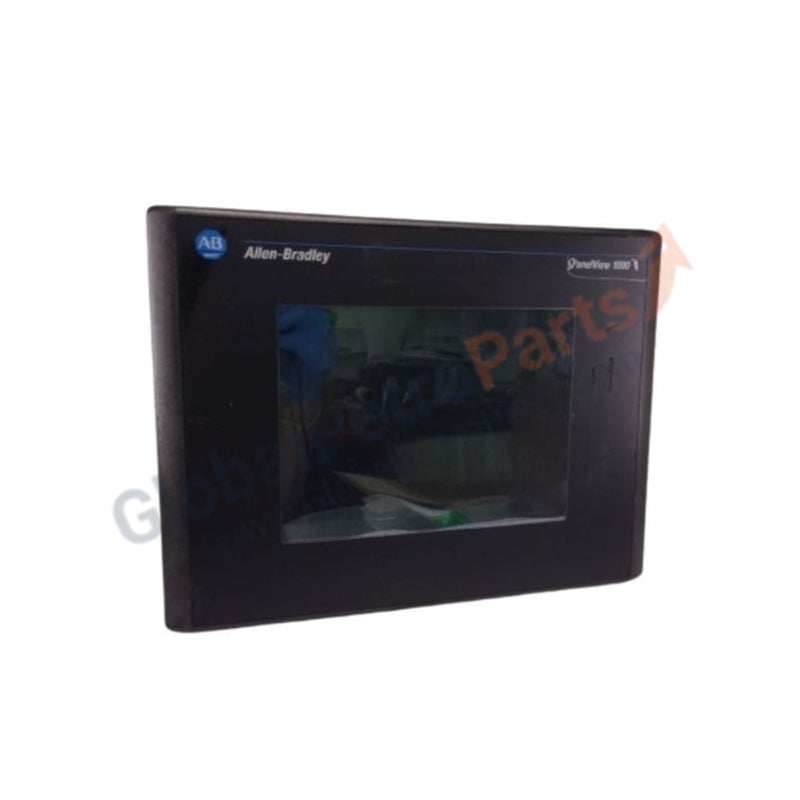

Allen Bradley 2711-T10C20 PanelView 1000 Standard Color Touch Terminal

Product Overview

The Allen Bradley 2711-T10C20 serves as a high-performance Human-Machine Interface (HMI) within the PanelView 1000 Standard series. This terminal provides centralized monitoring and control for complex automated systems, utilizing a 10.1-inch Active Matrix TFT color display. It facilitates high-speed data exchange via integrated Ethernet ports, allowing operators to visualize real-time process variables with a $640 \times 480$ pixel resolution. We provide this unit as 100% Brand New and Factory Original, ensuring immediate compatibility and long-term service for your critical control architecture.

Technical Specifications

Engineering Advantages

• Native Ethernet Integration: The 2711-T10C20 features a built-in Ethernet communication port. This allows the terminal to connect directly to factory-wide networks, supporting simultaneous communication with multiple controllers and remote data acquisition without the need for external bridges.

• Ruggedized Display Architecture: The Active Matrix TFT display incorporates a high-longevity backlight. This hardware ensures consistent luminosity and color accuracy even in high-glare plant floor environments, maintaining visibility for critical alarm monitoring.

• Broad Power Compatibility: The universal AC power supply accepts a wide range of input voltages (85–264V AC). This internal regulation protects the sensitive electronics from voltage spikes and sags common in heavy industrial grids.

• Precision Touch Response: The touchscreen utilizes a 384-cell grid (24 columns x 16 rows). This high-density cell structure prevents "ghost touches" and ensures accurate command execution when operators use industrial gloves or finger pressure.

• Environmental Protection: When properly flush-mounted, the unit achieves NEMA 4X or 12/13 ratings. This prevents the ingress of dust, oil, and water, protecting the internal logic boards from corrosive atmospheres and wash-down procedures.

FAQs

• How do I replace an obsolete 2711-T10C20 without redesigning the system?

  Since we supply this unit as 100% Brand New, you can perform a direct drop-in replacement. Use your existing PanelBuilder32 software files to download the application directly to this new hardware. No modification to the panel cutout or wiring is necessary.

• What is the primary function of the RS-232 port on this model?

  The RS-232 port on the 2711-T10C20 functions specifically as a printer port. It allows the terminal to output hard-copy reports, alarm logs, and data records. For PLC communication, use the primary Ethernet port.

• Does this unit support firmware updates for newer network security?

  Yes. You can update the firmware via the communication ports using the Firmware Terminal Asset (FWTA) tool. This ensures the 1008K application memory remains compatible with the latest revisions of RSLinx and communication drivers.

• What mounting precautions should I take for NEMA 4X compliance?

  Ensure the mounting gasket remains free of debris and sits flush against the panel surface. Tighten the mounting levers to the specified torque to create a uniform seal. Failure to use all provided mounting clips may compromise the enclosure's environmental rating.
