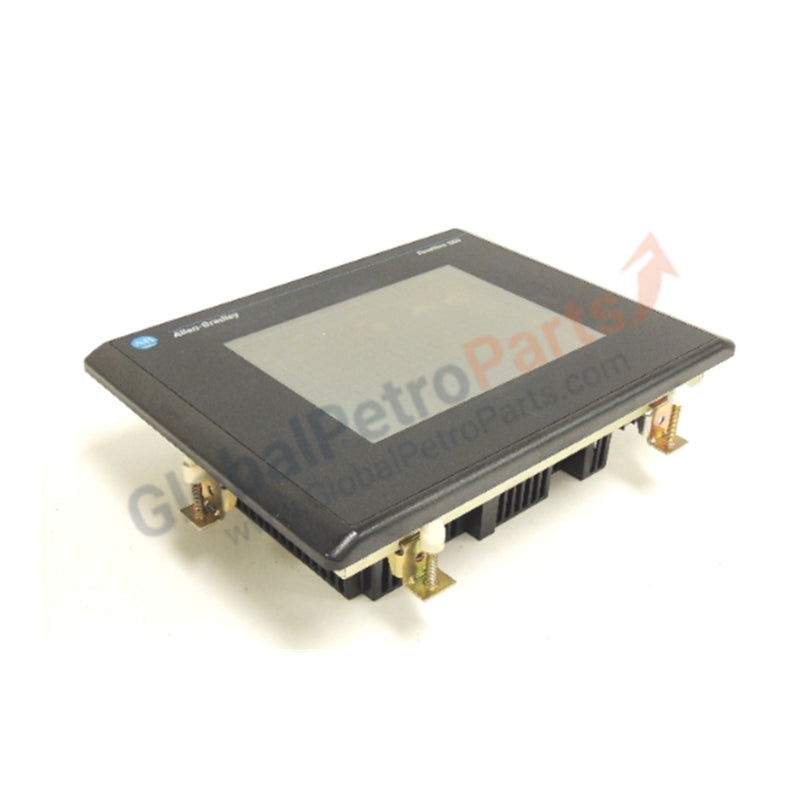

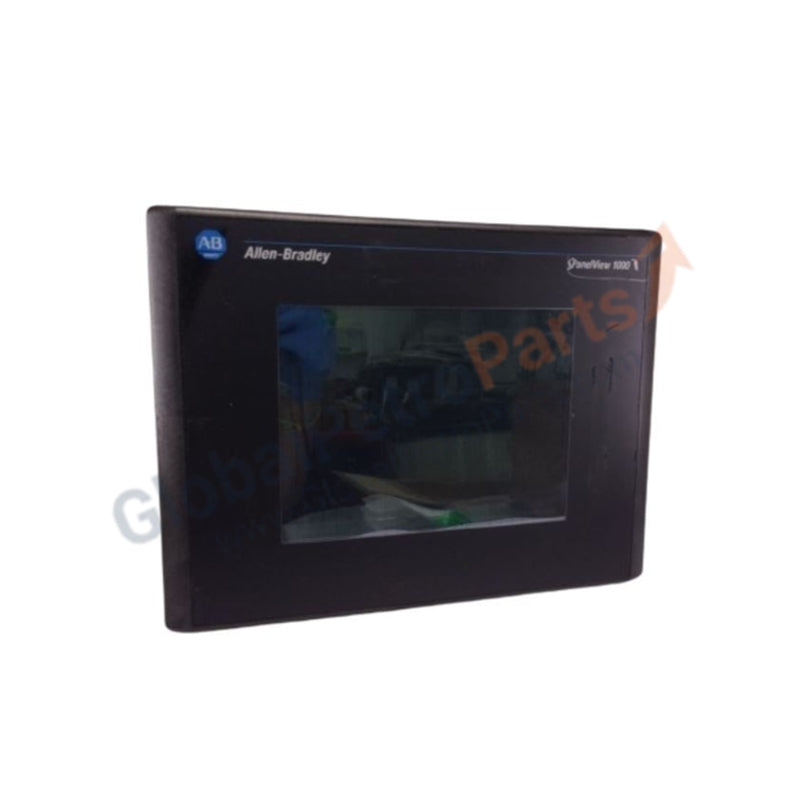

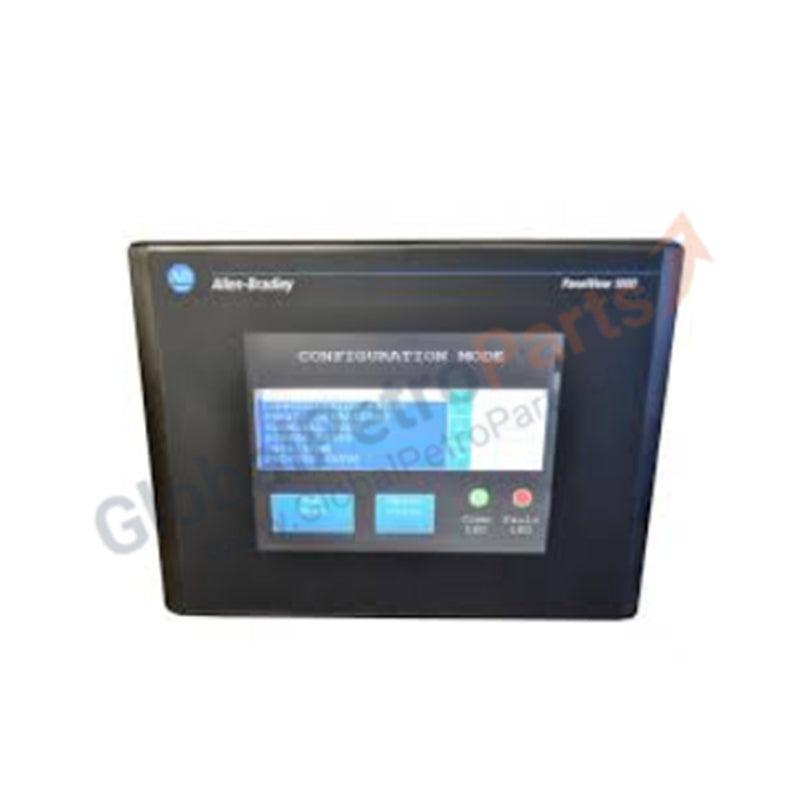

Allen Bradley 2711-T10G3 PanelView 1000 Standard Operator Terminal

Product Overview

The Allen Bradley 2711-T10G3 serves as a rugged, 10.1-inch industrial Human Machine Interface (HMI) within the legacy PanelView 1000 Standard series. This operator terminal executes local machine control, monitoring, and data visualization strategies by interfacing directly with SLC 500, MicroLogix, and PLC-5 controllers over DH-485 networks. Although the original manufacturer classifies this specific series as discontinued, we supply this hard-to-find hardware in 100% brand new, original factory stock condition to preserve your existing legacy architecture without costly system upgrades.

Technical Specifications

Engineering Advantages

• Direct Legacy Network Drop-In: The native DH-485 communication port links seamlessly to existing industrial networks. This hardware saves engineering hours because field technicians slide this new unit into place without migrating old PanelBuilder32 software code into modern Studio 5000 environments.

• Harsh Environment Front-Panel Sealing: When installed correctly with its factory gasket, the front bezel maintains NEMA Type 12/13 and 4X environmental ratings. This tight physical seal blocks high-pressure water wash-downs, conductive dust accumulation, and caustic chemical vapors from entering the enclosure.

• High-Clarity Grayscale Matrix: The high-contrast XGA active-matrix display presents operational data across 4 distinct shades of gray. This design choice guarantees sharp graphical readability under fluctuating overhead factory light sources while reducing screen burning common in older CRT monitors.

• Ruggedized High-Capacity Backlight: The cold cathode fluorescent lamp (CCFL) technology integrates into a solid-state frame providing an extended operating life. This system handles rapid ambient cabinet temperature shifts from 0°C up to 55°C without fracturing the screen elements or losing display luminance.

FAQs

• Is this 2711-T10G3 terminal an authentic new unit despite its obsolete status?

  Yes. We specialize in sourcing rare, obsolete factory automation hardware. We guarantee this Allen Bradley 2711-T10G3 terminal arrives in 100% brand new, authentic condition with the original manufacturer packaging, internal protective film, and factory mounting clips intact.

• What configuration software do I need to download screens to this HMI?

  You must use Rockwell Automation's legacy PanelBuilder32 software to modify, save, or download application screens into the 1008 KB local application memory.

• How do I connect a local alarm logger to this specific model?

  The terminal includes a dedicated, independent RS-232 serial printer port. You run a standard serial cable from this interface directly to a compatible dot-matrix printer or electronic data logger to print triggered alarms, system faults, and real-time process events automatically.

• Can I power this terminal directly using a 24V DC battery bank?

  No. The 2711-T10G3 houses an internal AC-to-DC power converter. It requires an alternating current input power supply between 85V AC and 264V AC at 47 to 63 Hz to operate safely. If your system runs exclusively on 24V DC, you must select the alternative 2711-T10G3D9 model.
