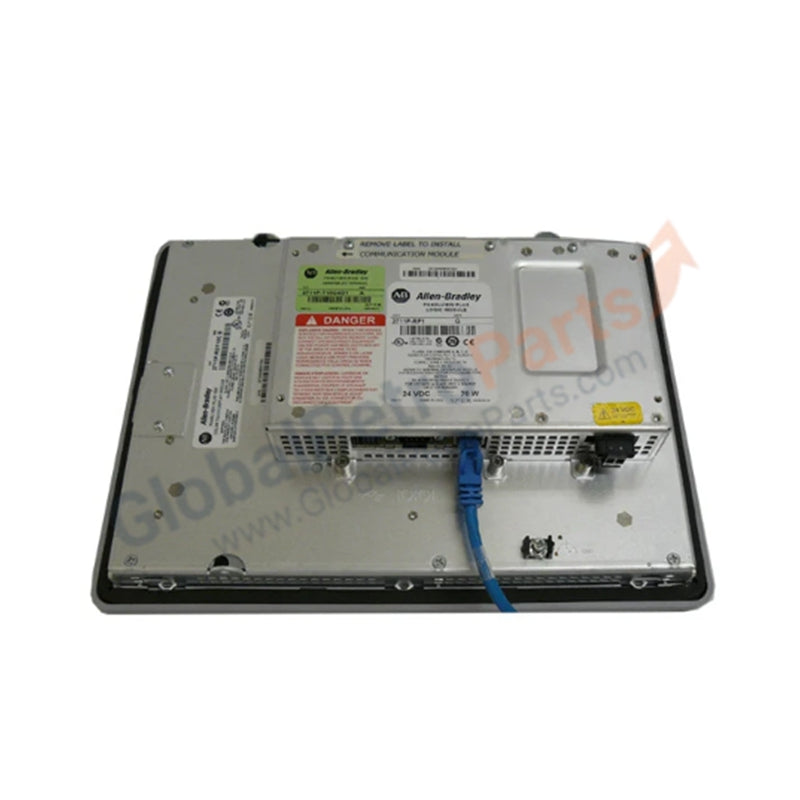

Allen-Bradley 2711C-T6T PanelView C300 Component Terminal | 6-Inch

Product Description

The 2711C-T6T PanelView C300 terminal from Allen-Bradley is a compact operator interface designed for the PanelView Component series. Featuring a 6-inch color CSTN LCD touchscreen, this unit provides intuitive control and monitoring for industrial automation systems. It supports multiple communication protocols, including RS-232, RS-485, Modbus, and Siemens MPI, making it versatile for integration across diverse environments.

Technical Specifications

• Manufacturer: Allen-Bradley

• Part Number: 2711C-T6T

• Product Line: PanelView Component (C600 Series)

• Product Type: Operator Interface Terminal

• Weight: 1.63 lbs (0.74 kg)

• Display Size: 6 inches

• Display Type: Color CSTN passive matrix LCD

• Resolution: 320 × 240 pixels

• Display Area: 115 × 86 mm (4.53 × 3.39 in)

• Touchscreen: Analog touch, rated for 1 million actuations

• Backlight Life: Minimum 40,000 hours (non-replaceable)

• Input Voltage Range: 18–30 V DC (nominal 24 V DC)

• Power Consumption: 5 W

• Heat Dissipation: 32 BTU/hr

• Communication Ports:

• RS-232 (DH-485, DF1)

• RS-485 (multi-vendor, Modbus, Siemens MPI)

• USB port

• Ethernet port

• Compatible Web Browsers: Internet Explorer 7/8, Firefox 3.0

• Enclosure Ratings: NEMA/UL Type 12, 13, 4X; IEC IP54, IP65

• Operating Temperature: 0–60 °C (32–140 °F)

• Storage Temperature: -40–85 °C (-40–185 °F)

• Lifecycle Status: Discontinued / Obsolete

Key Features

• 6-Inch Color Display: Clear visualization with CSTN LCD technology

• Durable Touchscreen: Rated for 1 million presses for long-term use

• Multi-Protocol Support: RS-232, RS-485, Modbus, Siemens MPI, and Ethernet

• Compact and Rugged: NEMA and IEC enclosure ratings for industrial environments

• Low Power Consumption: Efficient operation at only 5 W
