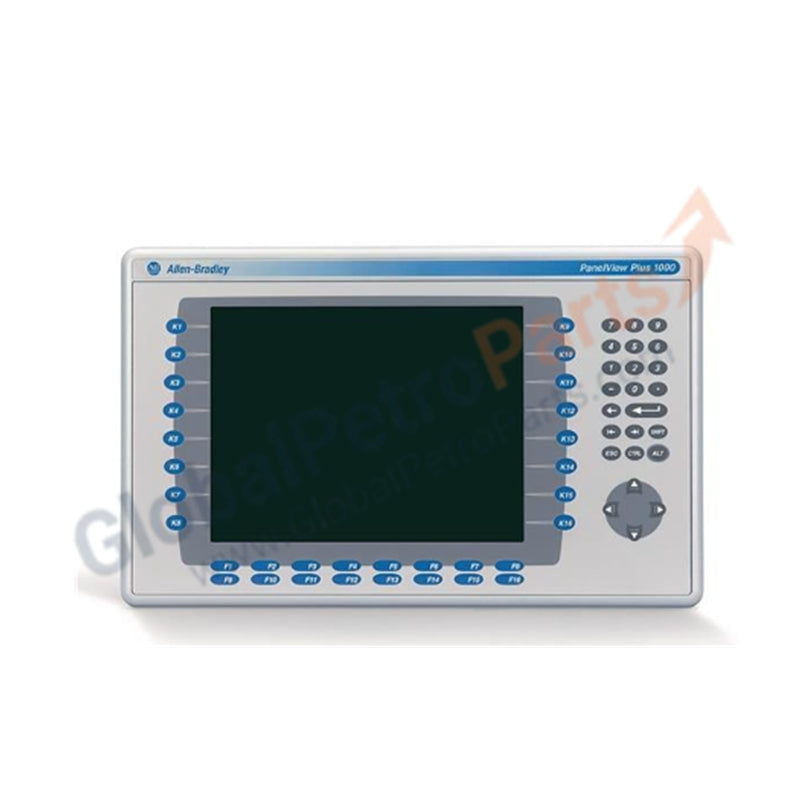

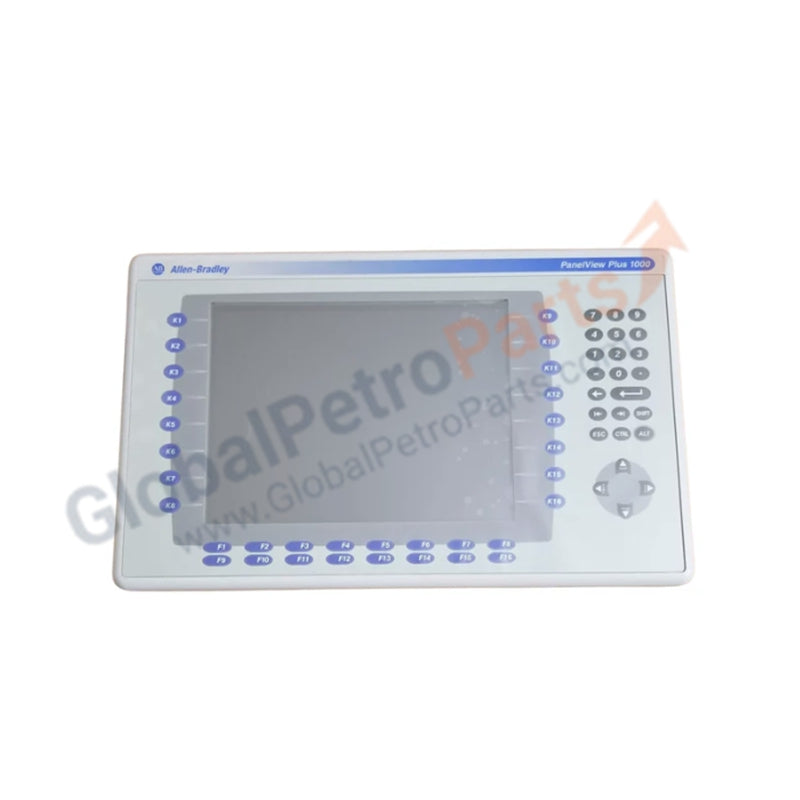

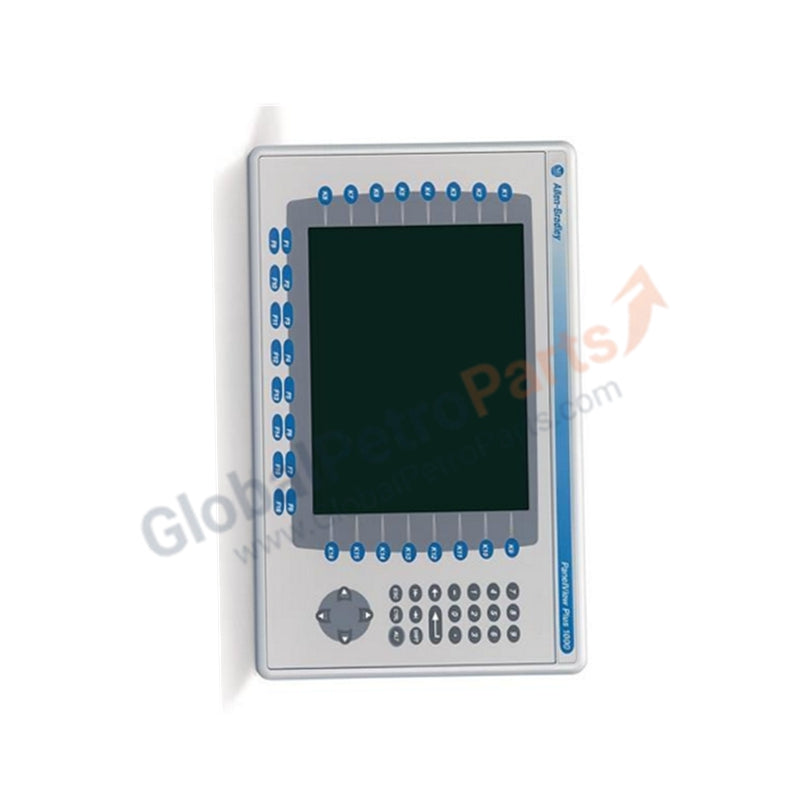

Allen-Bradley 2711P-B10C4D8 PanelView Plus 6 1000 Color Operator Interface

Product Overview

The Allen-Bradley 2711P-B10C4D8 functions as a high-performance Human Machine Interface (HMI) within the PanelView Plus 6 1000 family. It provides operators with a comprehensive 10.4-inch color visualization platform to monitor and control complex automated processes. Despite the manufacturer's discontinued status for this series, we offer this unit as 100% Brand New and Original, ensuring your legacy systems maintain peak performance without the risks associated with refurbished hardware.

Technical Specifications

Engineering Advantages

• Dual Input Flexibility: The 2711P-B10C4D8 combines a high-resolution touchscreen with a rugged physical keypad. This configuration allows operators to navigate complex menus via touch while using the tactile keypad for critical commands in environments where gloves or contaminants make touch-only interfaces impractical.

• Legacy System Continuity: As a "Brand New" unit for a discontinued series, this terminal provides a direct-drop replacement for aging PanelView Plus 6 1000 units. You avoid the high costs of rewriting FactoryTalk View ME applications for newer hardware generations.

• Expanded Connectivity: The integrated Ethernet port facilitates high-speed data exchange with ControlLogix or CompactLogix controllers. Simultaneously, the dual USB ports simplify peripheral connections for keyboards, mice, or flash drives for rapid log-file extraction.

• Optimized Thermal Performance: The 24V DC powered design minimizes heat generation inside the control cabinet. The robust housing allows for flush mounting in NEMA 4X or IP66 rated enclosures, protecting internal electronics against dust and high-pressure water jets.

FAQs

• Can this unit directly replace an older PanelView Plus 1000 (Series A-F)?

  Yes. The PanelView Plus 6 (2711P-B10C4D8) runs on a modern Windows CE platform but maintains backward compatibility with older PanelView Plus applications. You simply need to restore your existing .APA or .MER file via FactoryTalk View ME.

• How do I ensure the touchscreen remains calibrated in high-vibration areas?

  The 2711P-B10C4D8 uses an analog resistive touchscreen. We recommend securing the mounting levers to the specified torque (approx. 1.1 Nm) during installation to prevent bezel pressure from affecting touch sensitivity.

• Does this "Discontinued" model come in original factory packaging?

  Absolutely. While the manufacturer stopped production in 2022, our inventory consists of 100% Brand New stock. The unit arrives in the original Allen-Bradley box with factory seals intact, guaranteeing it has never seen field use.

• What are the primary benefits of the RS-232 port on this model?

  The RS-232 port allows the 2711P-B10C4D8 to communicate with legacy DH-485 or DF1 devices, making it an ideal gateway for systems that utilize both modern Ethernet and older serial-based PLC-5 or SLC 500 controllers.
