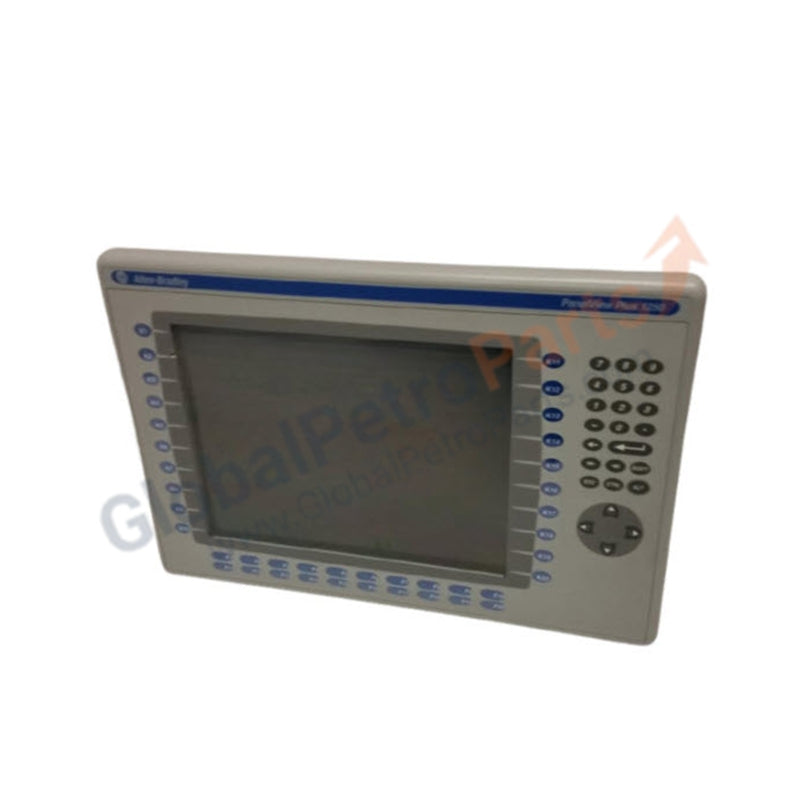

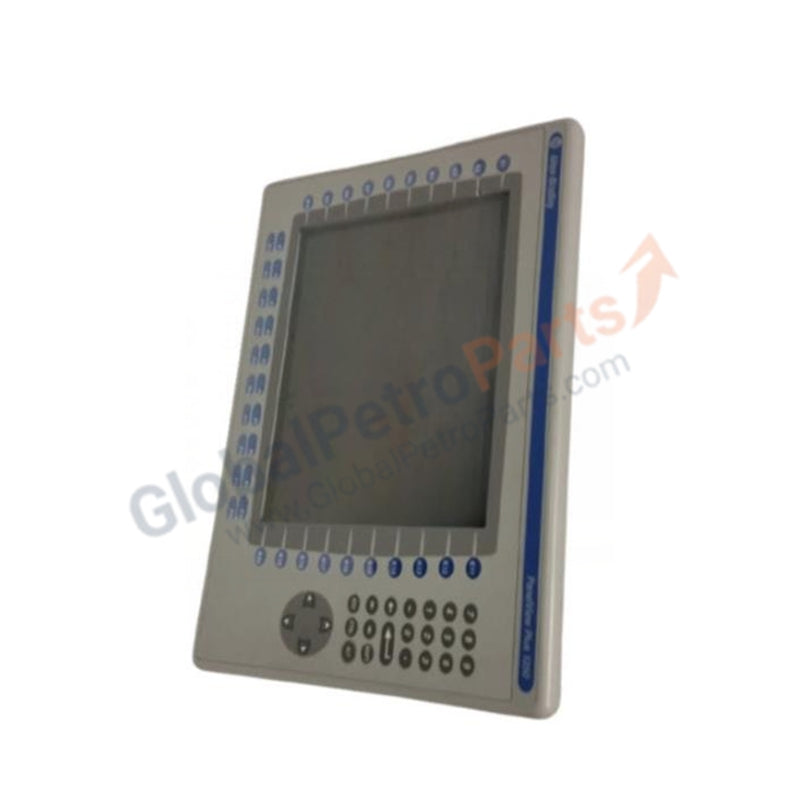

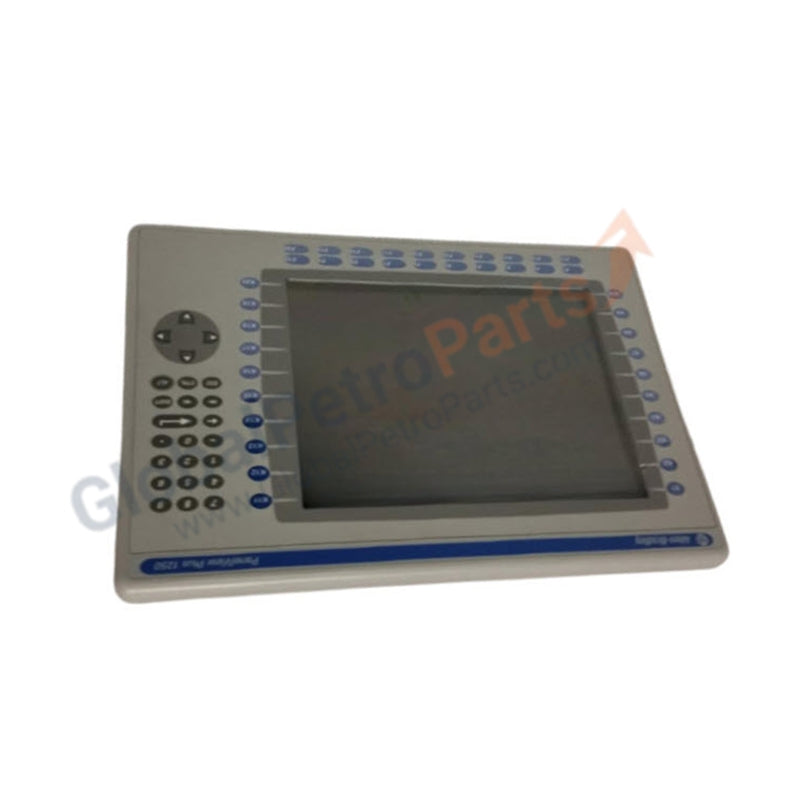

Allen-Bradley 2711P-B12C4A8 PanelView Plus 6 1200 Keypad/Touch Operator Terminal

Product Overview

The Allen-Bradley 2711P-B12C4A8 functions as a premier visualization solution within the PanelView Plus 6 1200 family. It provides a versatile dual-input interface, combining a high-resolution 12.1-inch color display with both touchscreen and physical keypad capabilities. This terminal manages complex automation data across EtherNet/IP and serial networks, serving as the central command point for factory floor operations. We supply this unit as 100% Brand New and Original, ensuring peak performance for your legacy system support and new installations.

Technical Specifications

Engineering Advantages

• Dual-Input Redundancy: The combination of a touchscreen and a physical keypad solves the "operational downtime" dilemma. If a touchscreen layer incurs damage in a harsh environment, operators maintain full system control via the tactile keypad.

• Universal AC Power Integration: The integrated 100–240V AC power supply eliminates the need for external 24V DC converters. This simplifies cabinet wiring and allows direct integration into standard facility power grids.

• High-Speed Logic Execution: The 512 MB RAM architecture accelerates screen transition speeds and complex alarm logging. This hardware prevents the "lag" often associated with high-tag-count applications in older HMI generations.

• Streamlined Communication: Built-in Ethernet and RS-232 ports facilitate simultaneous connection to modern Logix controllers and legacy SLC 500 or MicroLogix processors. This makes the 2711P-B12C4A8 an ideal bridge for phased facility upgrades.

FAQs

• What is the advantage of the 2711P-B12C4A8 over "Touch-only" models? This "B" (Both) model provides maximum flexibility. In environments where operators wear thick gloves or where contaminants might interfere with touch sensitivity, the mechanical keypad ensures 100% input reliability.

• Does this unit support field-replaceable backlights? Yes. Unlike some modern sealed LED displays, this Series A/B unit utilizes the 2711P-RL12C2 backlight. This feature extends the service life of the terminal significantly by allowing you to replace the illumination source without discarding the entire display module.

• Can I use my existing RS-232 cables? This terminal supports the 2711-NC14 communication cable. If you are migrating from an older PanelView Standard unit, verify your pinout, as the PanelView Plus 6 utilizes a standard DB9 port for serial communication.

• Is the 512 MB RAM sufficient for modern FactoryTalk View ME projects? Absolutely. The 512 MB RAM capacity provides ample headroom for extensive alarm histories, complex trending, and high-resolution graphic symbols typical of modern industrial UI designs.
