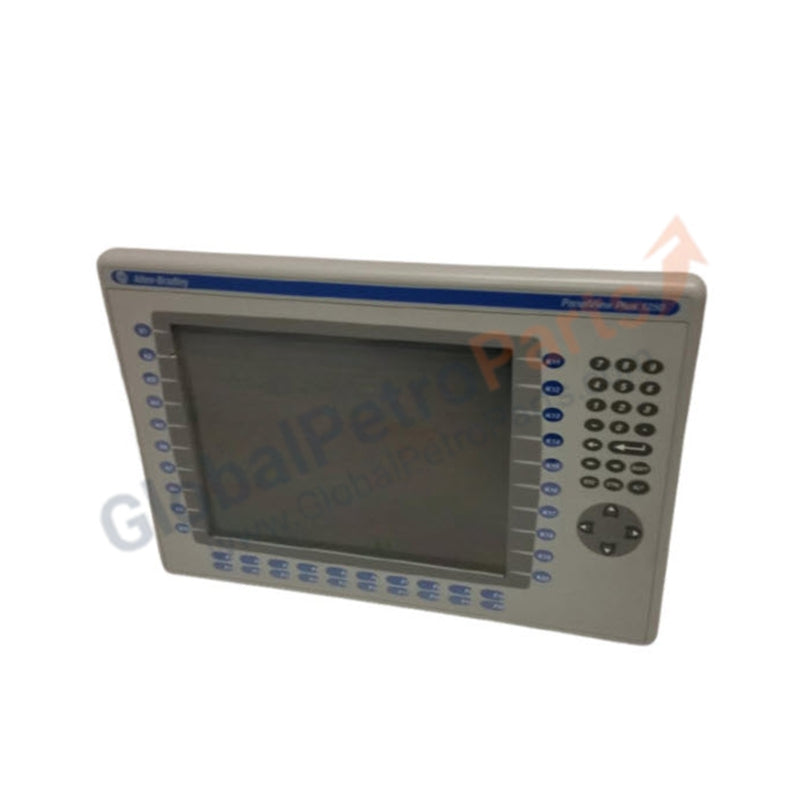

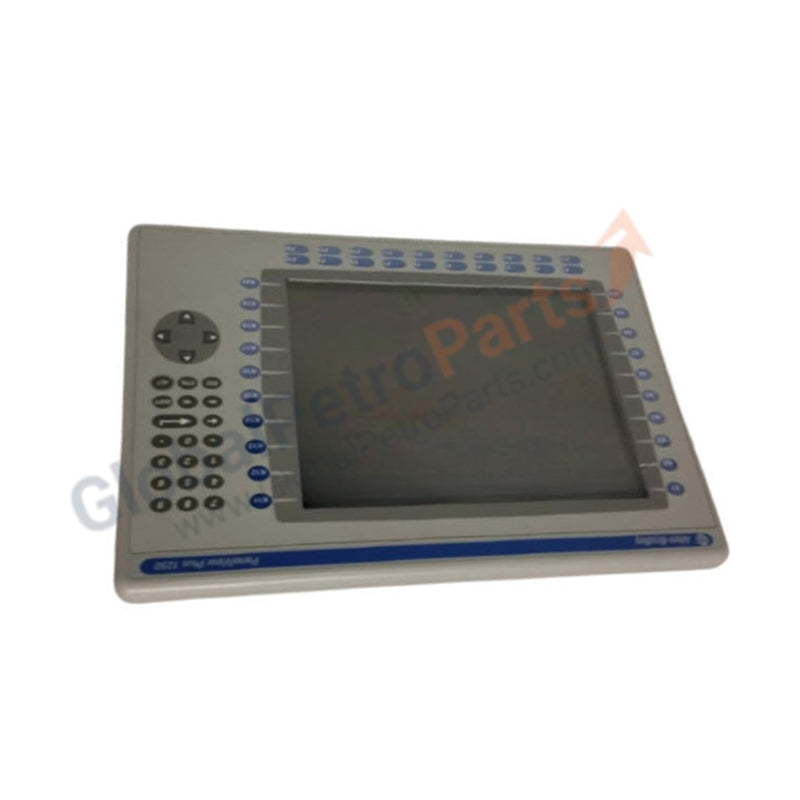

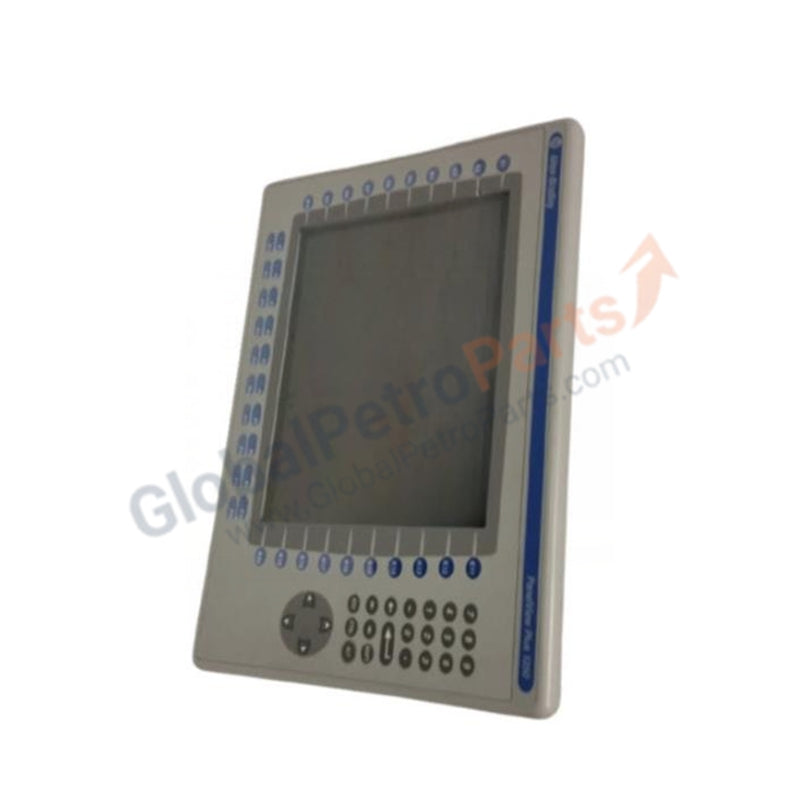

Allen-Bradley 2711P-B12C4D1 PanelView Plus 1250 Operator Interface

Configured for human-machine interface interaction in industrial control networks, the Allen-Bradley 2711P-B12C4D1 (2711P-B12C4D1 Operator Interface) provides direct physical execution of runtime visualization and process control. This unit features a 12.1-inch color display combined with both keypad and touchscreen input capabilities, operating on a 24 VDC power supply to facilitate data exchange via Ethernet and RS-232 communication interfaces.

Hardware Specifications

Profinet / EtherNet/IP Deterministic Networks & Firmware Flash Compatibility

The 2711P-B12C4D1 operates within control networks requiring defined data exchange rates for screen updates and tag monitoring. Deterministic performance relies on the correct configuration of the Ethernet communication stack and established connections to the programmable controller. Firmware flash compatibility is mandatory when upgrading the terminal; users must ensure the logic module firmware matches the runtime application requirements to avoid register mismatch or communication initialization failures. In scenarios utilizing USB peripheral devices, maintain cable lengths within standard specifications to prevent bus communication latency or port-level signal degradation.

Frequently Asked Questions

Q: Does the 2711P-B12C4D1 support hot-swapping of the logic module?

A: No. The terminal must be powered down before the logic module is removed or installed. Hot-swapping the logic module while the display unit is energized can cause damage to the backplane communication pins and internal power regulation circuits.

Q: How is the touchscreen recalibrated if input precision deviates?

A: Access the terminal configuration menu to initiate the touchscreen calibration utility. Follow the multi-point sequence on the screen to map the touch coordinates. If precision persists in failing after recalibration, inspect the bezel area for accumulated contaminants or physical obstructions.

Field Installation Guidelines

• Panel Cutout: Ensure the enclosure panel cutout dimensions meet the manufacturer's specified tolerances to allow for a proper seal. The terminal must be secured using the integrated mounting clips to achieve the required ingress protection rating.
• Grounding: The chassis must be connected to a high-integrity industrial earth ground. Use the designated grounding stud on the rear of the unit to dissipate electrostatic charges and improve noise immunity for the touch sensor interface.
• Cable Separation: Route communication (Ethernet/RS-232) and power cables through separate wire ducts. Maintain a minimum distance of 150 mm from high-voltage AC lines or variable frequency drive cabling to prevent radiated noise from affecting data integrity.
• Thermal Environment: Ensure adequate convective airflow around the terminal. Avoid installation in environments where ambient temperatures exceed the rated thermal envelope, as heat buildup can accelerate the degradation of the liquid crystal display and internal memory components.
