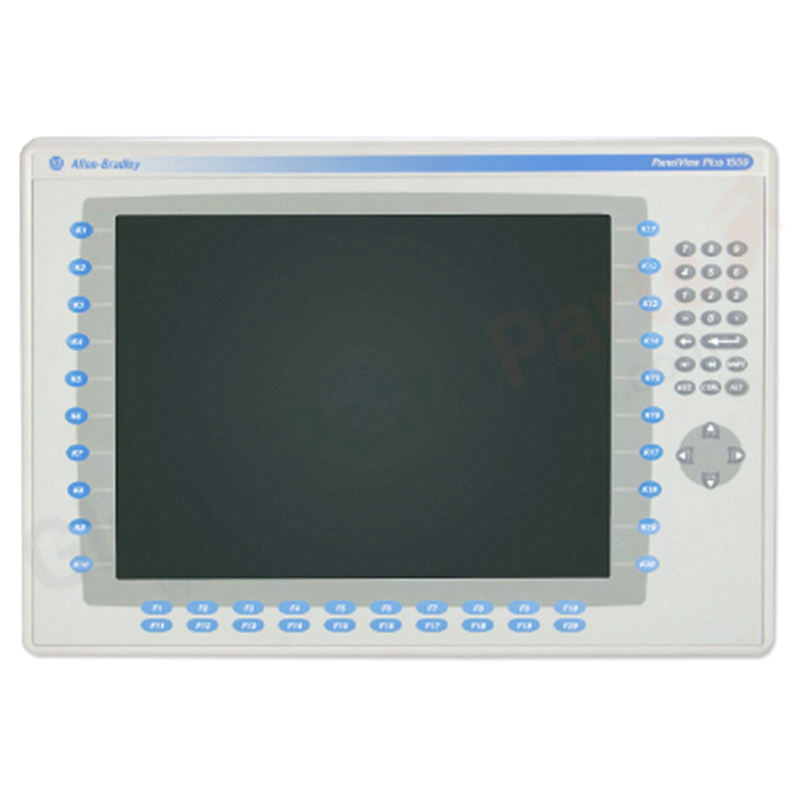

Allen-Bradley 2711P-B15C15D1 PanelView Plus 1500 Keypad/Touch

Product Overview

The Allen-Bradley 2711P-B15C15D1 is a PanelView Plus 1500 operator terminal featuring a 15-inch color TFT display with both keypad and touchscreen input, ControlNet communication, and 24V DC power input. It provides large-format HMI visualization for complex industrial control applications requiring dual input methods and deterministic network connectivity.

Key Specifications

• Product Family: PanelView Plus 1500
• Display Size: 15 inches
• Display Type: Color active-matrix TFT
• Resolution: 1024 × 768 pixels (XGA)
• Input Type: Keypad and Touchscreen (dual input)
• Communication: ControlNet Communication Port
• Power Input: 24V DC
• Memory: 128 MB RAM, 128 MB nonvolatile storage
• Features: 64 MB additional memory
• Backlight: Field-replaceable LED backlight
• Product Line: PanelView Plus 1500

Features & Benefits

• Large 15" XGA Display: 1024 × 768 resolution provides ample screen real estate for complex process graphics and multi-window applications
• Dual Input Methods: Both keypad and touchscreen offer operator flexibility—use touchscreen for navigation and keypad for data entry in harsh conditions
• ControlNet Communication: Deterministic high-speed network for real-time I/O and messaging with ControlLogix systems
• Field-Replaceable LED Backlight: Long-life LED backlight reduces maintenance downtime and total cost of ownership
• Adequate Memory: 128 MB RAM and 128 MB nonvolatile storage support standard HMI applications and data logging
• Industrial-Grade Construction: Built for manufacturing, process control, and continuous operation environments

Applications

• Large-scale process control visualization
• Manufacturing line overview displays
• Batch control operator stations
• Power generation monitoring
• Oil and gas SCADA interfaces
• Water treatment plant control rooms

Installation Guide

1. Panel Cutout: Prepare large panel cutout per the PanelView Plus 1500 installation template. Ensure adequate structural support for the 15-inch terminal.
2. Mounting: Secure the terminal using heavy-duty mounting clips. Verify NEMA rating integrity after installation.
3. Power Connection: Connect 24V DC to the power input terminals. Verify power supply capacity for the terminal and any USB peripherals.
4. ControlNet Connection: Connect ControlNet coaxial cable to the BNC connectors. Configure node address per network plan.
5. Dual Input Configuration: Program both touchscreen and keypad functions in FactoryTalk View ME for optimal operator interaction.
6. Application Development: Use FactoryTalk View Machine Edition to develop HMI screens optimized for the 1024 × 768 XGA resolution.

FAQ

Q: What is the advantage of dual input (keypad + touch) on the 2711P-B15C15D1?
A: The touchscreen provides intuitive navigation, while the keypad enables precise data entry and operation while wearing gloves or in wet conditions.

Q: Can this terminal communicate over Ethernet?
A: This specific model (D1 suffix) features ControlNet. For Ethernet, select models with "D8" or similar Ethernet suffixes.

Q: Is the LED backlight replaceable in the field?
A: Yes. The LED backlight is field-replaceable, simplifying maintenance and reducing downtime.

Q: What resolution should I design HMI screens for?
A: Design for 1024 × 768 XGA resolution to fully utilize the 15-inch display area.

Selection Tips

• Verify ControlNet network infrastructure exists for deterministic communication
• Confirm 24V DC power supply has adequate capacity
• Ensure panel structure supports the large 15-inch terminal
• Consider dual input requirements—touchscreen-only models may be sufficient for some applications
• For Ethernet connectivity, evaluate 2711P-B15C15D8 or similar Ethernet variants
