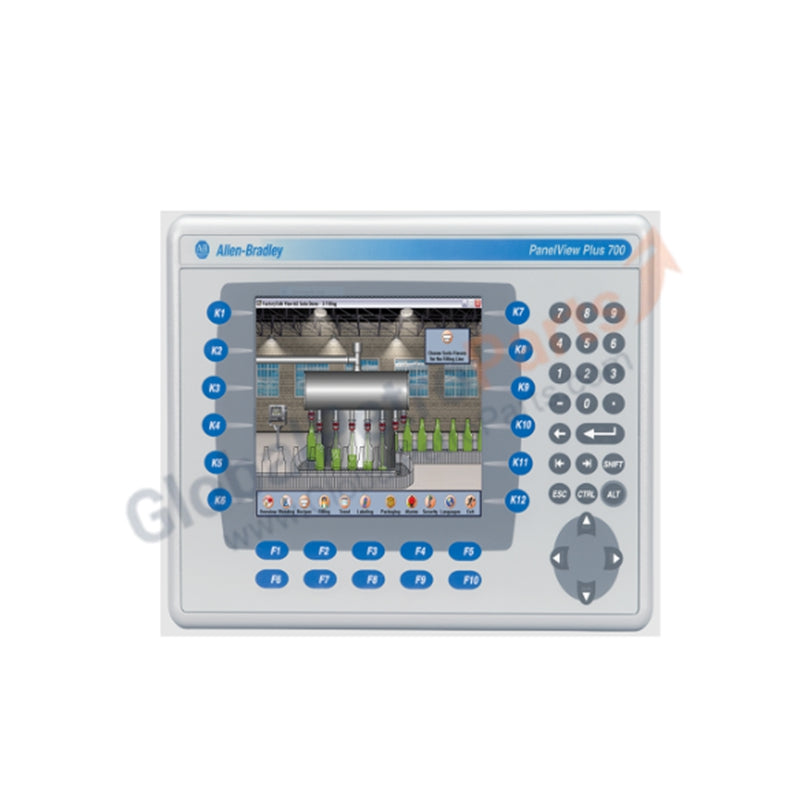

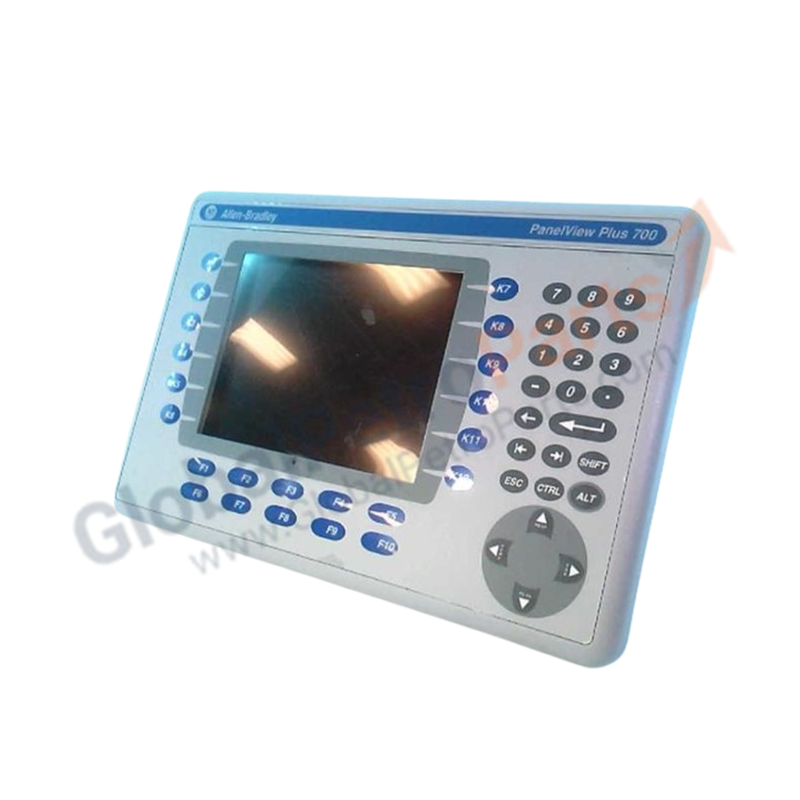

Allen-Bradley 2711P-B7C4A8 PanelView Plus 6 700 Keypad and Touchscreen Operator Interface Terminal

Product Overview

The Allen-Bradley 2711P-B7C4A8 operates as a high-density operator interface node within the PanelView Plus 6 700 series configuration. This dual-input hardware terminal combines a rugged mechanical keypad matrix with an analog resistive touchscreen layer, allowing facility operators to monitor complex machine state variables, adjust process setpoints, and manipulate live automation graphics. We supply this premium industrial workstation component exclusively in 100% brand new, original factory condition to eliminate input latency, prevent pixel degradation, and guarantee seamless communication across your control network.

Technical Specifications

Engineering Advantages

• Combines Tactile and Digitized Inputs: The dual Keypad & Touch architecture resolves a common factory floor issue where wet or heavily gloved hands struggle to actuate standard touchscreens. Operators use the physical dome-switch buttons for critical numeric variable logging and switch to the capacitive screen area for swift system menu navigation.

• Bypasses External Step-Down Transformers: The integrated universal power supply accepts raw AC lines from 100V up to 240V at 50/60 Hz directly. This broad voltage accommodation removes the cost and panel volume requirements of auxiliary 24V DC power converters inside the marshalling cabinet.

• Simplifies Multiple Peripheral Data Links: Dual onboard USB ports work alongside independent Ethernet and RS-232 serial channels. This native port cluster connects the terminal to old and new PLCs simultaneously, while allowing technicians to pull localized CSV data logs or attach external printers without breaking the network line.

• Maintains Sealing Under Vibration: The 3.79 lbs mechanical housing uses heavy-duty mounting clips that distribute uniform compression force across standard panel cutouts. This tight fit keeps the perimeter sealing gasket intact, protecting internal logic circuits from oil mist, washdown moisture, and airborne metal shavings.

FAQs

• Does this terminal run standard FactoryTalk View ME application projects?

  Yes. The 2711P-B7C4A8 features the native PanelView Plus 6 internal operating system environment, which executes compiled runtime (.MER) files. It handles standard animation, multi-state indicators, data trends, and active alarm banners configured in FactoryTalk View Studio.

• Is this HMI terminal a refurbished surplus unit or an actual factory-new assembly?

  We guarantee this product is 100% brand new, authentic, and completely unused original factory stock. It ships directly inside its original manufacturer box, containing intact protective screen films, factory-fresh mounting clips, and unblemished terminal connection paths.

• What installation guidelines keep the AC input wiring safe?

  Isolate the incoming AC feed line completely before attaching wires to the power terminal strip. Strip your single-conductor or stranded power lines according to factory depth metrics, tighten the terminal screws to secure a gas-tight contact, and separate the high-voltage AC run away from sensitive low-voltage RJ45 Ethernet communication lines.
