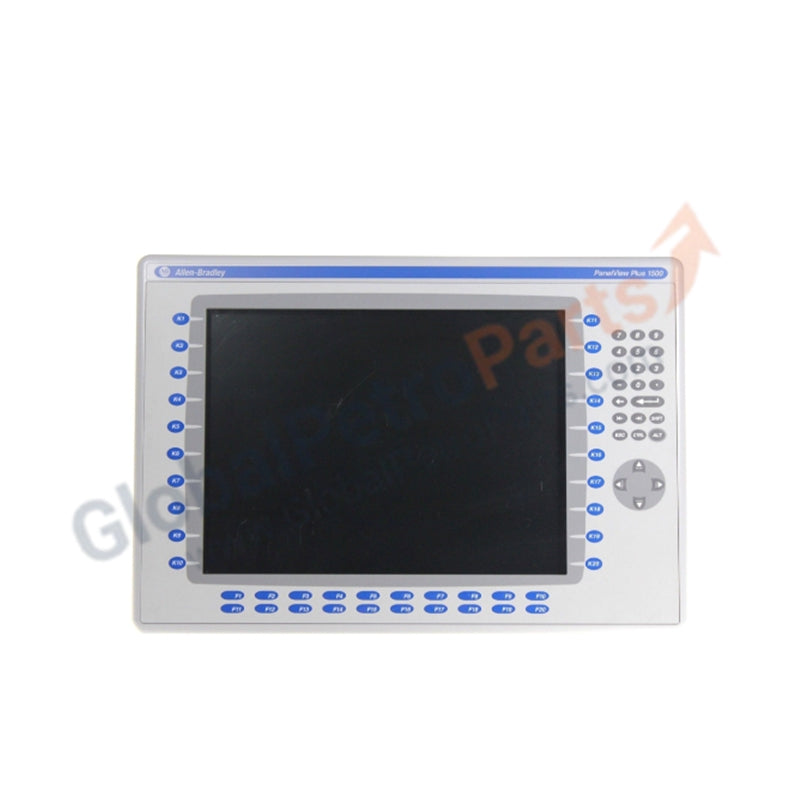

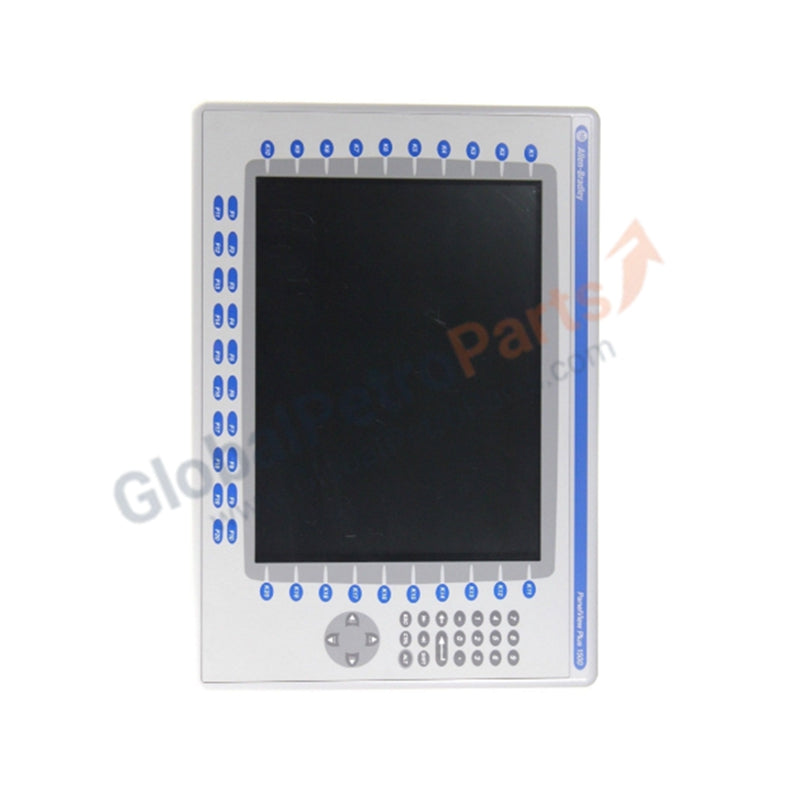

Allen Bradley 2711P-RDB15C PanelView Plus 1500 Operator Display Module

Product Overview

The Allen Bradley 2711P-RDB15C serves as a high-performance 15-inch replacement display module for the PanelView Plus 1500 operator terminal series. This heavy-duty unit bridges the gap between human operators and complex machinery by providing crisp visual feedback and dual-input control layout. It integrates a premium color TFT LCD alongside an analog resistive touchscreen and a physical keypad to handle demanding factory-floor environments. We guarantee this unit arrives in 100% brand new, original factory-sealed condition.

Technical Specifications

Engineering Advantages

• Redundant Dual-Input Flexibility: By combining an analog resistive touchscreen with a physical rugged keypad, this module solves a critical industrial pain point. Plant operators can navigate menus using touchscreen gestures, or switch to the physical keys when wearing heavy industrial work gloves that typically blind standard capacitive screens.

• Optimum Sunlight and Cabin Visibility: The high-luminance 300-nit TFT LCD screen outputs sharp 1024 x 768 resolution. This high contrast ratio ensures operators can read critical alarm data and graphical trends clearly from steep viewing angles and under harsh overhead factory lighting.

• Heavy Industrial Durability: The analog resistive touch surface withstands up to 1 million physical presses. It requires minimal operating force (10 to 110 g) while resisting damage from chemical splashes, dirt accumulation, and grease oil common in automotive and manufacturing plants.

• Modular Drop-In Field Replacement: The design allows engineering teams to separate the display module directly from the logic module. This layout isolates field-side screen wear from the actual controller logic, meaning you can swap out a cracked screen without reprogramming the application firmware or replacing the main CPU base.

FAQs

• Does this 2711P-RDB15C include the logic module or communication module? No. The 2711P-RDB15C represents the display assembly only (including the touch screen, keypad, and LCD panel). You must mount your existing PanelView Plus 1500 logic module and communication module to the back of this unit to form a complete operating terminal.

• Can technicians perform the replacement directly on the shop floor? Yes. The modular architecture enables quick field servicing. Ensure you disconnect all incoming power sources, remove the complete HMI terminal from the panel cutout, unscrew the logic module, and secure it onto the back of this brand new display module using the integrated slide-and-lock tabs.

• How does the resistive touchscreen handle airborne contaminants? Unlike consumer electronics, the analog resistive surface operates on physical pressure rather than electrical capacitance. Consequently, dust layers, humidity, airborne oil mist, or gloved hands will not cause false triggers or erratic cursor behavior.

• Is this product an authentic, brand new Allen Bradley unit? Absolutely. We supply this product as a 100% brand new, authentic factory item inside its original Rockwell Automation packaging, ensuring full service life and peak performance upon installation.
