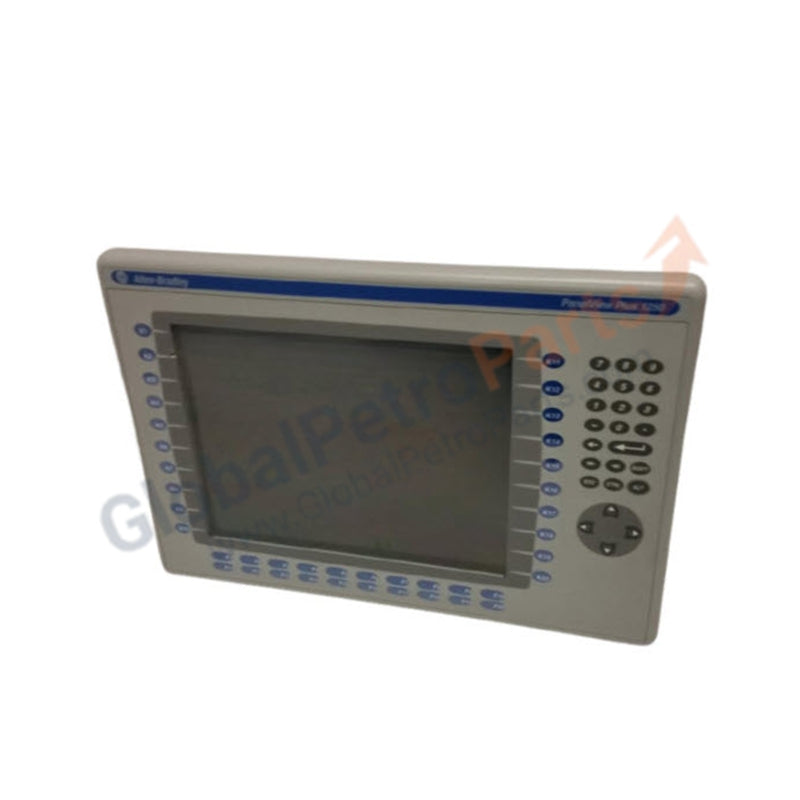

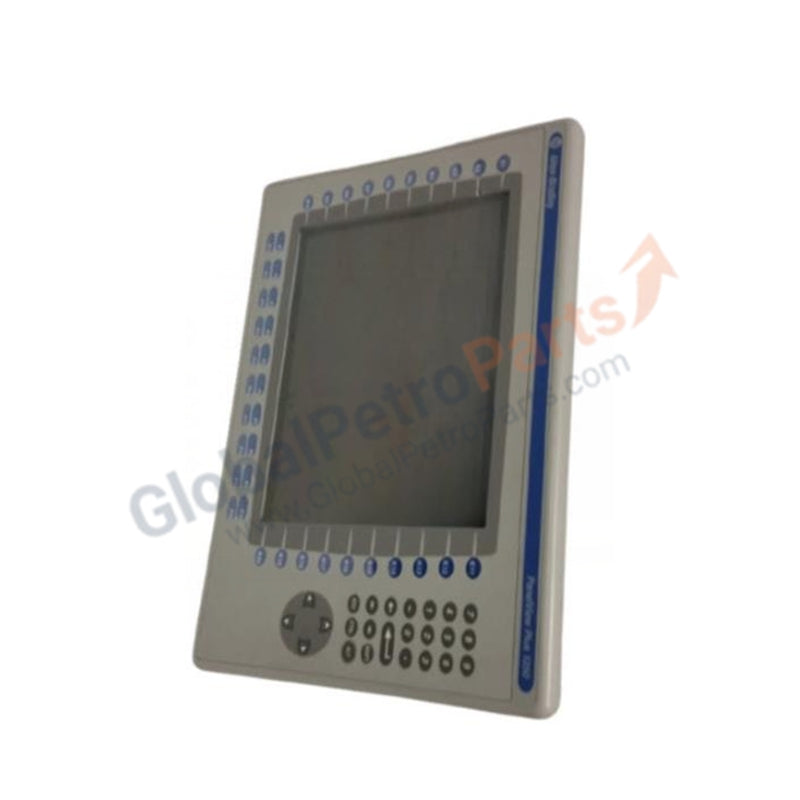

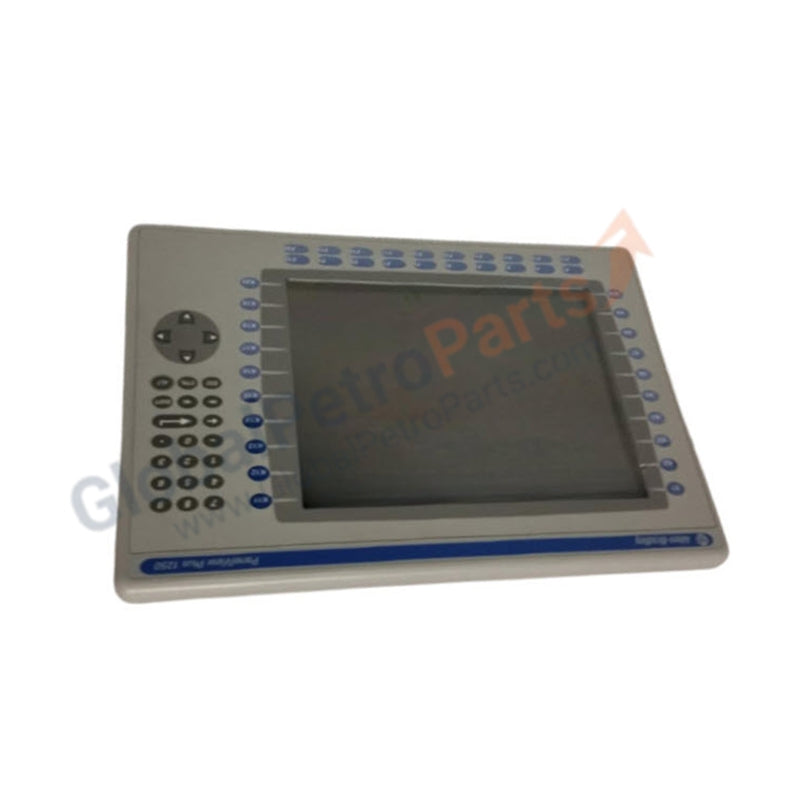

Allen-Bradley 2711P-RDB7C PanelView Plus 6 Operator Interface

The Allen-Bradley 2711P-RDB7C, also cataloged as the 2711P-RDB7C Operator Interface, operates as a dedicated hardware component for graphical visualization and process interaction within PanelView Plus 6 systems.

Hardware Specifications

I/O Density Scaling and Deterministic Communication

The 2711P-RDB7C hardware integrates with the PanelView Plus 6 logic module to provide I/O density scaling through customizable graphical interfaces. Communication protocols utilized for data acquisition from the controller are optimized for Profinet/EtherNet/IP deterministic networks, ensuring low-latency updates between the HMI and connected PLC hardware. Firmware flash compatibility is managed via the base logic module, allowing for system-wide updates to the operating environment while maintaining the integrity of the persistent display buffer. The hardware supports high-frequency screen updates, ensuring that critical process values are rendered with minimal visual lag.

Frequently Asked Questions

Q: Is the 2711P-RDB7C a complete HMI unit or a field-replaceable component?

A: The 2711P-RDB7C is a display module only. It requires a compatible PanelView Plus 6 logic module (CPU) to function and does not contain the internal processor for runtime application execution.

Q: Can the keypad and touch interface be utilized simultaneously?

A: Yes. The hardware architecture supports concurrent input through both the membrane keypad and the integrated touch-sensitive overlay, allowing for redundant operator input configurations within the HMI application.

Field Installation Guidelines

1. Gasket Sealing: Ensure the NEMA/IP-rated gasket is seated properly against the panel cutout. Improper seating may compromise the ingress protection rating of the cabinet.
2. Mounting Torque: Tighten the mounting clips in a cross-pattern to distribute clamping pressure evenly, preventing stress fractures on the bezel or display housing.
3. Display Protection: Keep the screen protective film in place until the commissioning phase to prevent scratches or chemical damage to the color display overlay during panel wiring.
4. Environment: Maintain ambient temperatures between 0 and 55 deg C to prevent liquid crystal response degradation and internal component thermal throttling.
