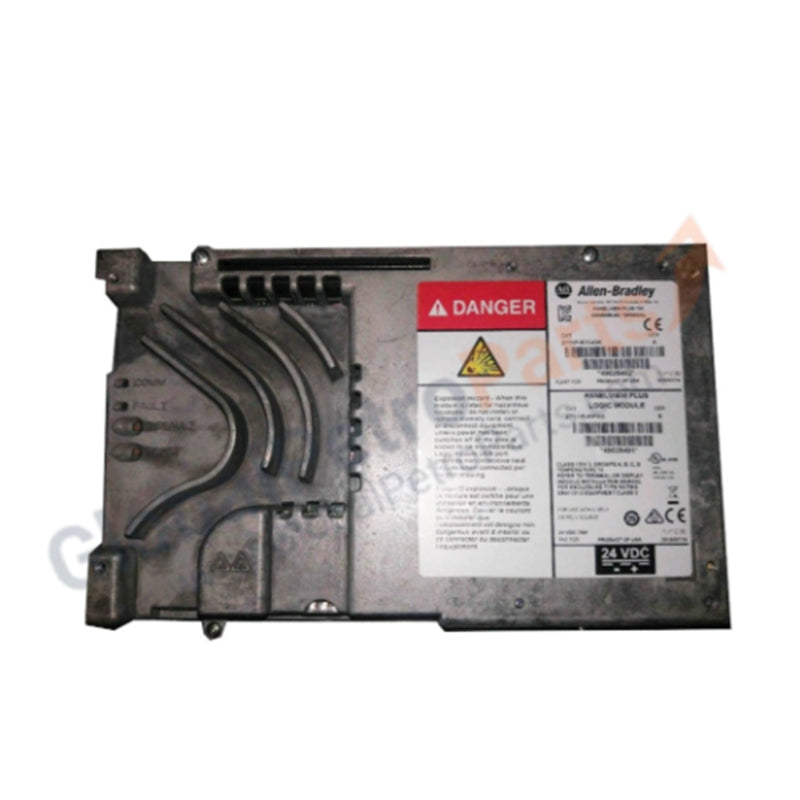

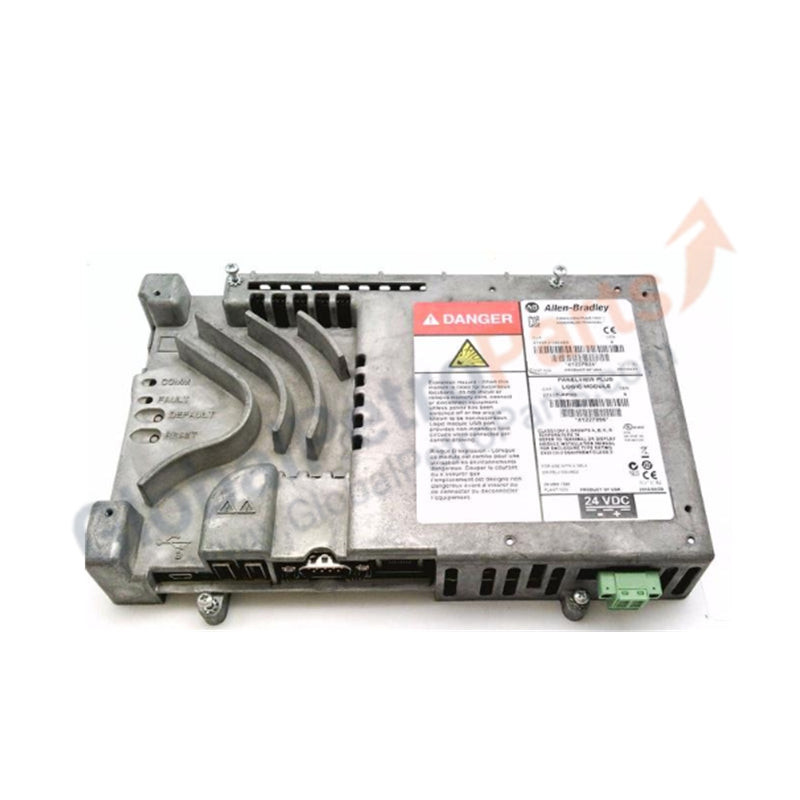

Allen-Bradley 2711P-RP8DK PanelView Plus 6 Logic Module

Configured for high-performance HMI application processing within PanelView Plus 6 display systems, the Allen-Bradley 2711P-RP8DK (2711P-RP8DK Logic Module) provides direct physical/electrical execution of graphical runtime environments and controller communications.

Hardware Specifications

PLC and Drives: Profinet / EtherNet/IP Deterministic Networks

The 2711P-RP8DK serves as the primary compute engine for the HMI, managing tag data exchange via EtherNet/IP protocols. The module's internal processor handles application logic and screen rendering, requiring synchronization with the controller's backplane bus communication velocity to minimize data update latency. The conformal-coated circuitry provides environmental resilience, while firmware flash compatibility ensures alignment with existing FactoryTalk View Studio project deployments. Proper configuration of the Ethernet port (Auto-MDI/MDI-X) allows for seamless integration into existing deterministic control networks.

Frequently Asked Questions (FAQ)

Q: What is the significance of the "K" suffix in the catalog code?

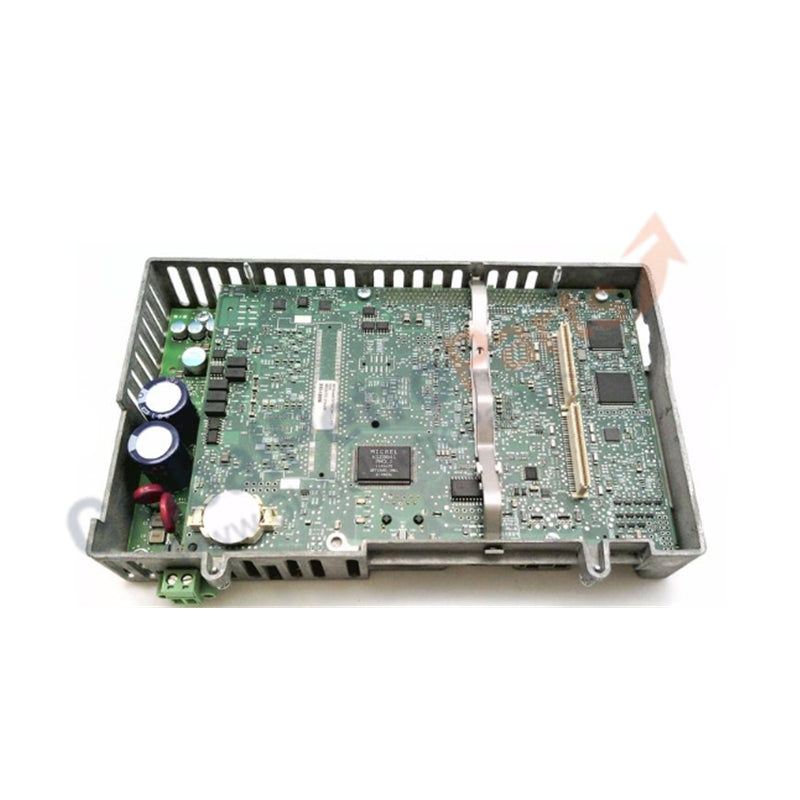

A: The "K" suffix denotes that the logic module printed circuit board assembly (PCBA) has been treated with a conformal coating. This provides additional protection against moisture, dust, and corrosive airborne contaminants in harsh industrial environments.

Q: Is this module compatible with all PanelView Plus 6 display units?

A: The module is designed for use with PanelView Plus 6 display modules ranging from 700 to 1500. Ensure the physical latching mechanism is fully engaged when embedding the module into the display slot to ensure reliable electrical contact with the internal interface pins.

Field Installation Guidelines

• Mounting: The module is embedded into the rear of the PanelView display unit. Ensure the area is free of debris before insertion. Do not force the module; it should seat firmly into the connector interface with light manual pressure.

• Power Supply: The module requires an isolated 24 V DC nominal input. Use a regulated power supply to protect against transient spikes. The design includes reverse polarity protection, but consistent adherence to positive/negative terminal polarity is required for proper operation.

• Grounding: Secure the chassis ground terminal to the system ground bus using a low-impedance copper strap or cable. This is vital for mitigating electromagnetic interference and electrostatic discharge (ESD) that could affect the sensitive Ethernet and RS-232 communication circuitry.

• Cable Management: Use shielded Ethernet cables for all network connections. Ensure that communication cabling is routed in dedicated conduits or trays separated from high-voltage AC lines to prevent signal induction and noise.
