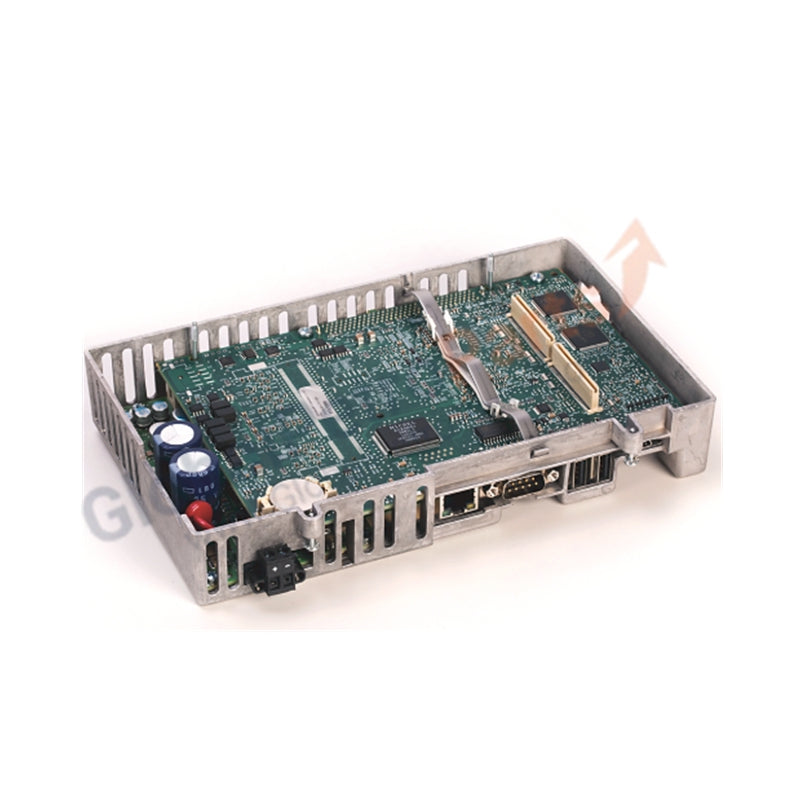

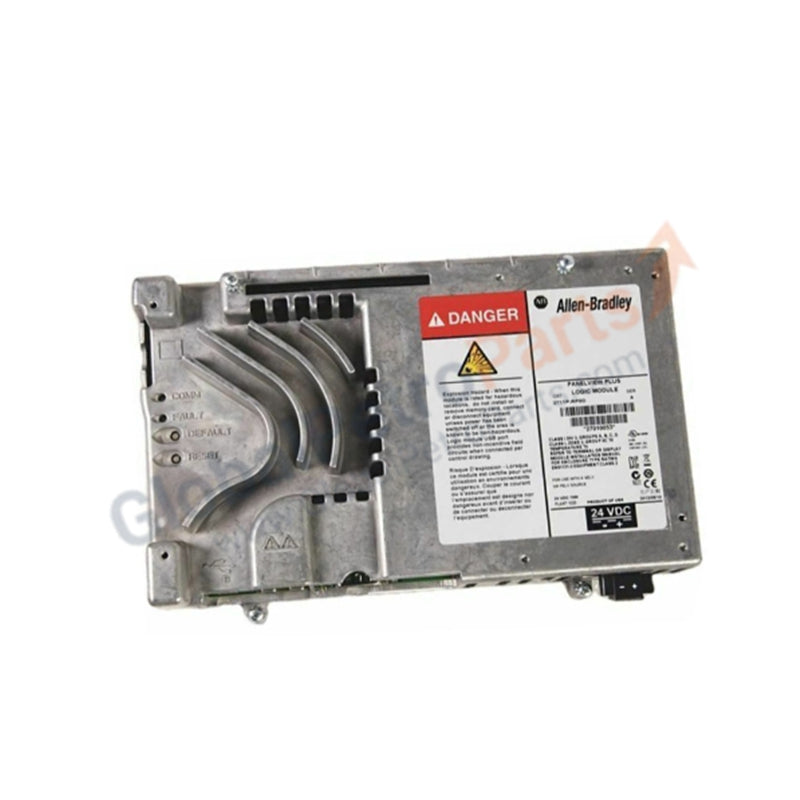

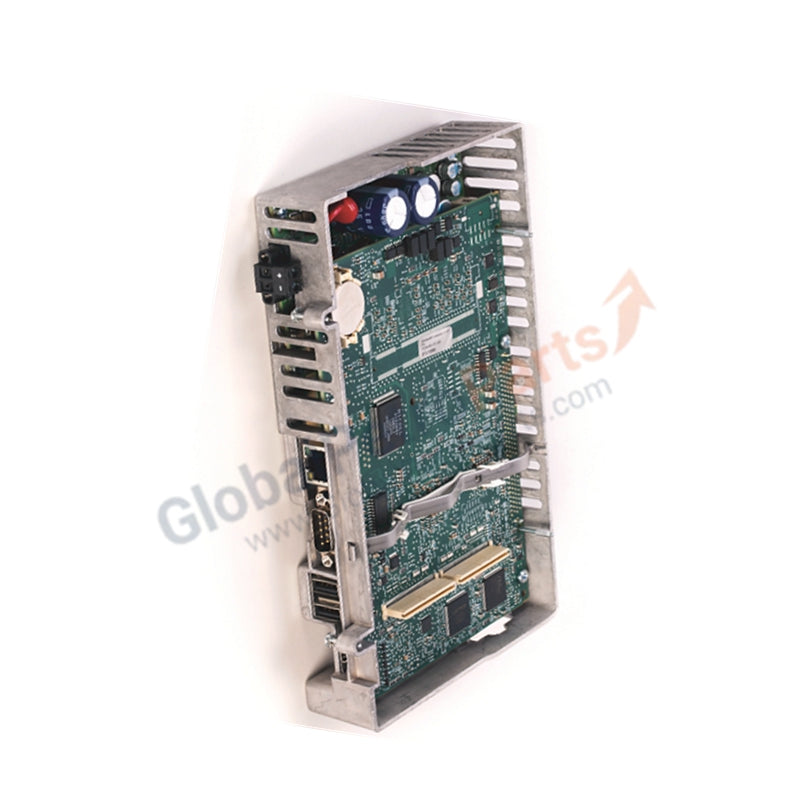

Allen-Bradley 2711P-RP9D PanelView Plus 6 Logic Module

Product Overview

The Allen-Bradley 2711P-RP9D acts as the primary computing engine for the PanelView Plus 6 (700 to 1500 series) operator terminals. This high-performance logic module executes the core HMI operating system, processes complex runtime data logs, and renders advanced vector graphics directly to the display display layer. We distribute this critical processing hub exclusively in 100% brand new, original factory condition to eliminate communication jitter, prevent runtime runtime crashes, and provide full processing power to upgraded factory floors.

Technical Specifications

Engineering Advantages

• Accelerates HMI Runtime Responsiveness: The embedded 1.0 GHz x86 architecture CPU pairs with a expanded 512 MB RAM footprint. This high-speed computing matrix speeds up screen refresh rates, updates dense trending graphs instantly, and executes localized macro scripts without lagging behind the host controller network.

• Survives Harsh Maritime Environments: Full Marine Certification ensures the internal circuitry withstands high-salinity air, moisture condensation, and continuous structural rolling. The specialized component layout isolates delicate electronics from the severe vibration profiles common on offshore drilling platforms and cargo ships.

• Expands Network Capabilities via PCI Interfacing: An integrated 32-bit PCI slot accepts specialty communication adapters directly into the logic frame. This slot allows field engineers to expand standard network ports and interface with legacy industrial data buses without buying external conversion gateways.

• Simplifies Drop-In HMI Remanufacturing: The module positions perfectly onto the backside of any PanelView Plus 6 700–1500 display component. Two alignment tracks guide the module into the native display mating sockets, allowing swift field upgrades while retaining the existing screen assembly and panel cutout dimensions.

FAQs

• Does this logic module arrive with a pre-configured FactoryTalk View ME license?

  The 2711P-RP9D contains the core factory Windows CE operating system and the foundational FactoryTalk View ME station runtime software. The hardware activates its internal user license automatically when you download your compiled application (.MER) file to the 512 MB flash storage.

• Is this product an authentic factory-fresh Allen-Bradley assembly or a refurbished pull?

  We guarantee this item is 100% brand new, authentic, and completely unused original factory stock. It arrives sealed in its native manufacturer anti-static packaging with uncompromised connector traces, intact quality seals, and original matching serialization labels.

• What installation steps protect the module during attachment to the display head?

  Disconnect all 24VDC input power lines from the station before beginning installation. Wear a verified, grounded static-elimination wrist strap, align the module's backplane pins with the screen connectors, press the 2.00 lbs hardware housing firmly into position, and tighten the structural retaining screws completely to prevent micro-arcing from machine vibrations.
