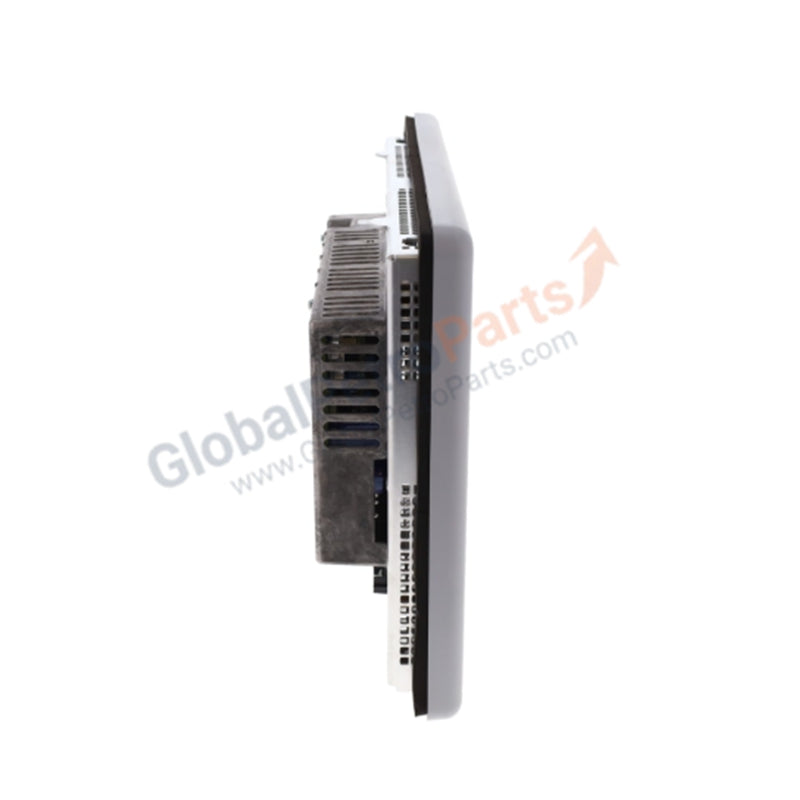

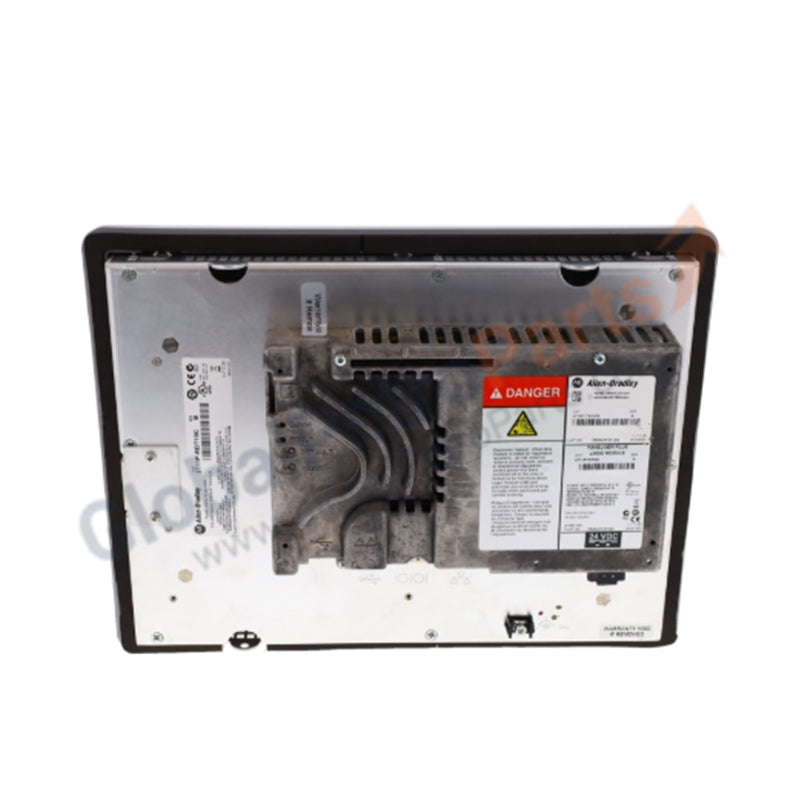

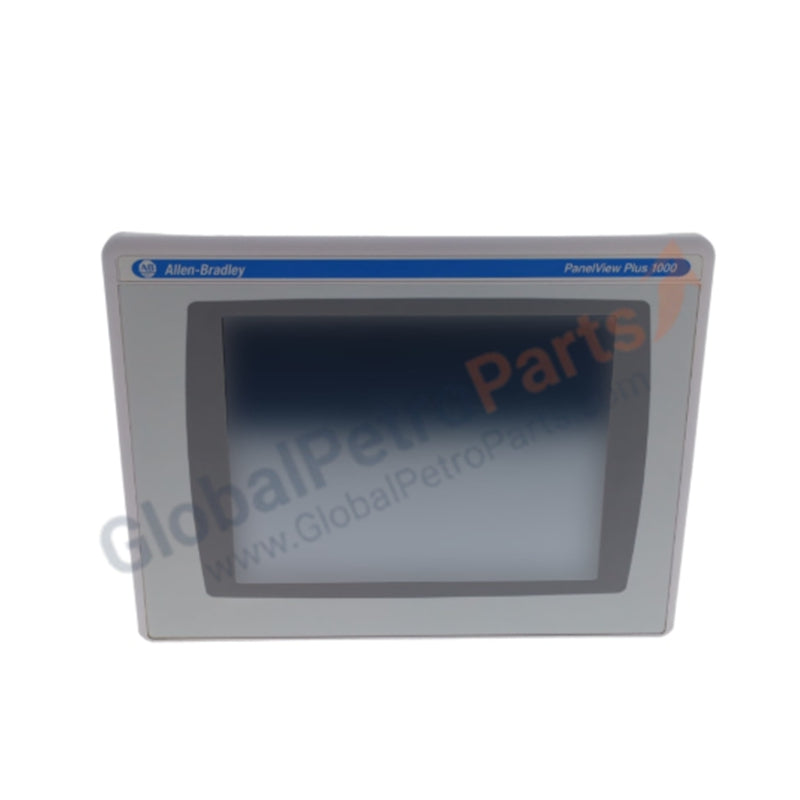

Allen-Bradley 2711P-T10C4D8 PanelView Plus 6 1000 Color Touch Screen HMI

Product Overview

The Allen-Bradley 2711P-T10C4D8 serves as the primary visualization hub for complex industrial automation environments. As part of the PanelView Plus 6 1000 series, this 100% brand new terminal offers high-speed processing and increased memory compared to legacy units. It translates machine-level data into actionable visual information, allowing operators to monitor and control processes through a vibrant 10.4-inch interface.

Technical Specifications

• Manufacturer: Allen-Bradley / Rockwell Automation

• Product Family: PanelView Plus 6 1000

• Input Method: Analog Resistive Touch Screen

• Display Size: 10.4-inch Color TFT

• Resolution: 640 x 480 VGA

• Input Voltage: 24V DC

• On-board Memory: 512 MB RAM / 512 MB Non-volatile Flash

• Communication Ports: 10/100 Ethernet, RS-232, and (2) USB Ports

• Power Dissipation: 70 Watts

• Weight: 6.00 lbs (approx. 2.72 kg)

Engineering Advantages

• Enhanced Processing Power: The PanelView Plus 6 architecture significantly improves screen transition speeds and data refresh rates. This ensures real-time responsiveness when managing high-tag-count applications.

• Versatile Connectivity: Integrated Ethernet and RS-232 ports support simultaneous communication with multiple controllers. The dual USB ports simplify peripheral connection for keyboards, mice, or external data logging.

• Industrial Grade Durability: The rugged touch interface withstands harsh factory floor conditions, including exposure to dust and vibration. The unit maintains consistent touch accuracy even in high-interference environments.

• Seamless Legacy Migration: This terminal provides a direct path for upgrading older PanelView systems. It utilizes existing FactoryTalk View Studio projects, which minimizes engineering time during system retrofits.

FAQs

• Is this 2711P-T10C4D8 unit a refurbished model?

  No, we supply only 100% brand new and original Allen-Bradley hardware in factory-sealed packaging.

• Does this model support external storage?

  Yes, the two USB ports and the internal SD card slot allow for easy firmware upgrades and log file storage.

• Can I use this terminal with both Ethernet and Serial networks?

  The hardware includes both an RJ-45 Ethernet port and a 9-pin RS-232 serial port, enabling connection to various PLC architectures simultaneously.

• What power source does this HMI require?

  The 2711P-T10C4D8 operates on a 24V DC power supply. Ensure your control cabinet provides stable DC voltage to prevent logic interruptions.
