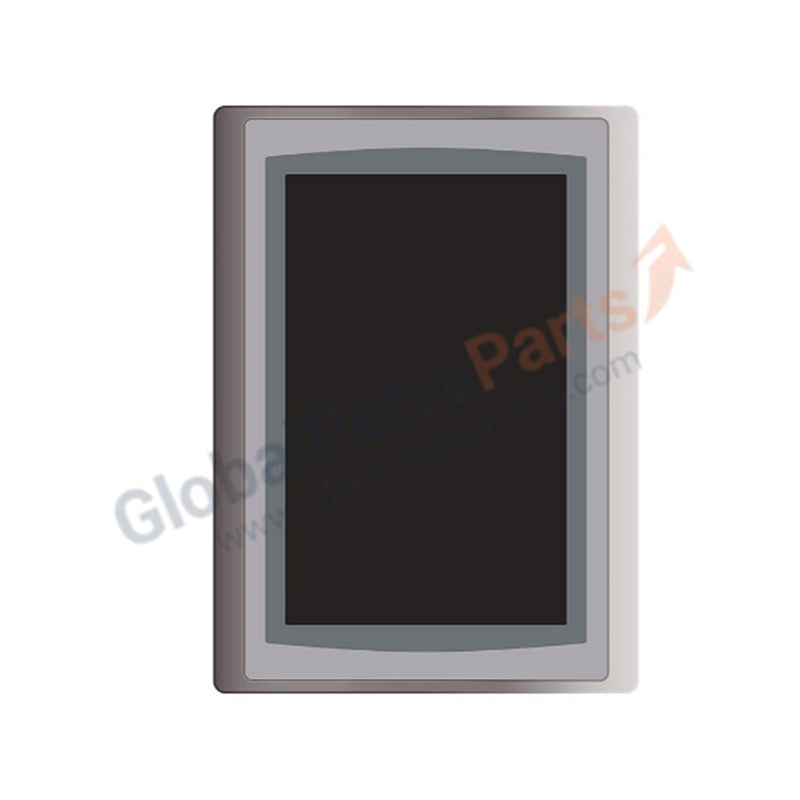

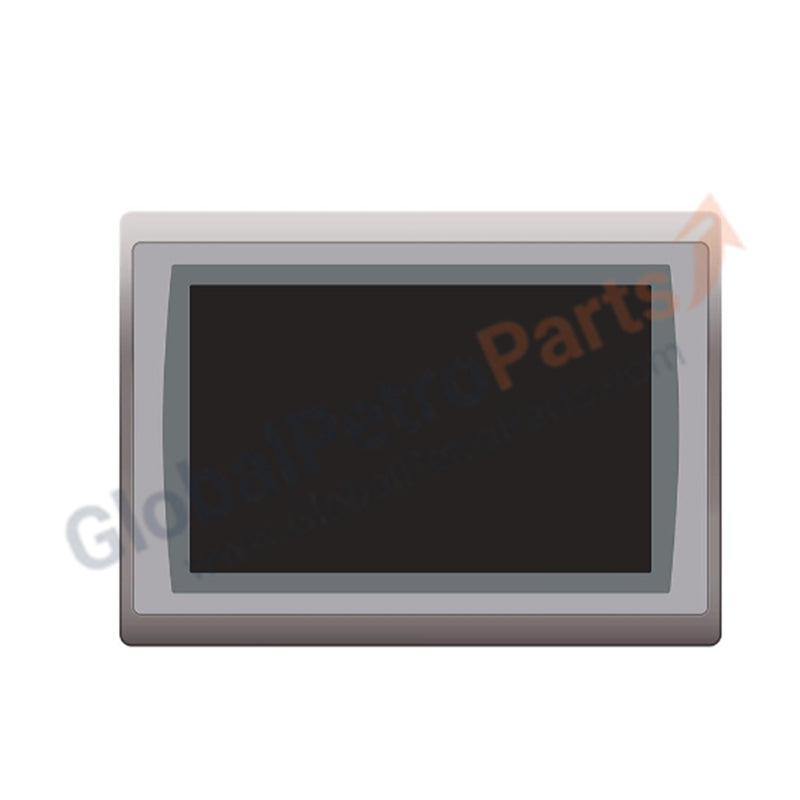

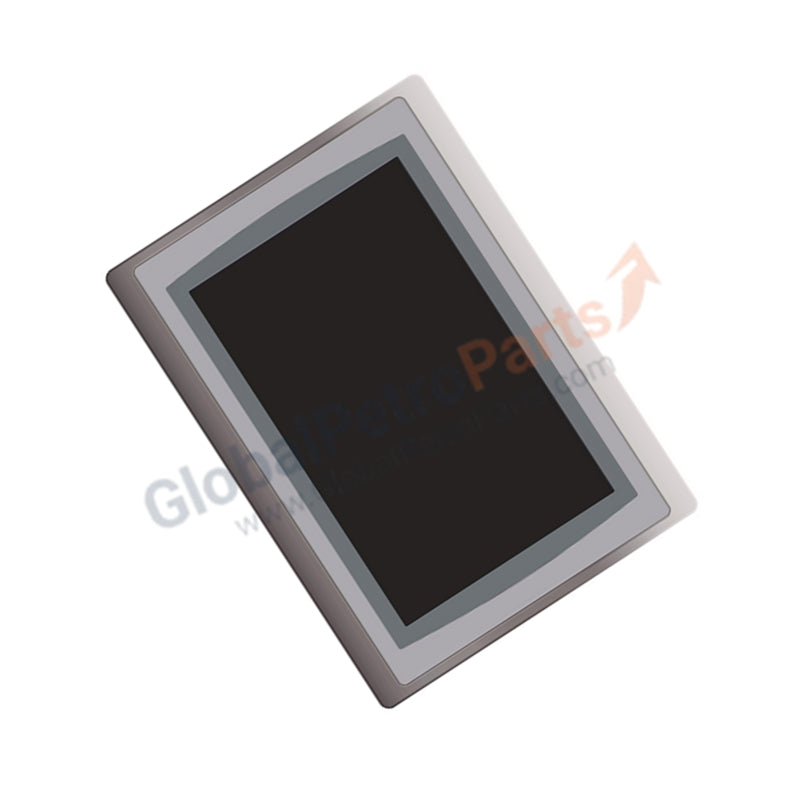

Allen-Bradley 2711P-T12W21D8S PanelView Plus 7 Standard Graphic Terminal

Product Overview

The Allen-Bradley 2711P-T12W21D8S serves as a high-definition visualization hub for the PanelView Plus 7 Standard series. Featuring a 12.1-inch WXGA widescreen display, this terminal provides superior screen real estate for complex process monitoring and machine-level control. It integrates seamlessly with Integrated Architecture, specifically optimized for CompactLogix and ControlLogix controllers using FactoryTalk View Machine Edition. We supply this terminal as 100% Brand New and Original, ensuring your industrial automation system benefits from the latest hardware revisions and pristine optical performance.

Technical Specifications

The 2711P-T12W21D8S utilizes an 18-bit color graphics engine to deliver crisp, clear process data visualization.

Engineering Advantages

• Optimized Widescreen Workspace: The 1280 x 800 WXGA resolution provides significantly more horizontal space than standard 4:3 displays. This allows engineers to place alarm banners, trending graphs, and navigation sidebars on a single screen without overlapping critical process graphics.

• Streamlined Maintenance with SD Storage: The integrated Secure Digital (SD) card slot facilitates rapid application transfer and log file storage. Maintenance teams can clone terminal configurations or update firmware without requiring a dedicated programming PC on the plant floor.

• Remote Diagnostic Capabilities: The built-in VNC client/server support enables remote viewing and control of the HMI from a central control room or mobile device. This functionality reduces the need for physical presence at the machine site during troubleshooting.

• Rugged Touch Reliability: The analog resistive touchscreen requires only 100 grams of actuation force and sustains up to 1 million presses. It maintains responsive operation even when operators wear thick industrial gloves or in environments prone to surface contaminants.

FAQs

• Does this model support more than one controller connection? The PanelView Plus 7 Standard series typically connects to a single controller. For applications requiring simultaneous communication with multiple PLCs or complex network topologies, consider the PanelView Plus 7 Performance series.

• How do I replace the Real-Time Clock (RTC) battery? The terminal uses a standard CR2032 lithium coin cell. You can access the battery compartment on the rear of the unit. The battery typically lasts at least 4 years at 25 °C, but we recommend periodic checks to ensure timestamp accuracy for alarm logs.

• Is the 2711P-T12W21D8S compatible with older PanelView Plus 6 applications? Yes. You can migrate FactoryTalk View ME applications from PanelView Plus 6 to PanelView Plus 7. However, you must update the project resolution to 1280 x 800 in the software to take full advantage of the widescreen display.

• What mounting precautions should I take during installation? Always use the provided mounting levers to secure the terminal into the panel cutout. Ensure the mounting gasket seats flat against the panel to maintain the enclosure's environmental rating and prevent the ingress of dust or liquids.
