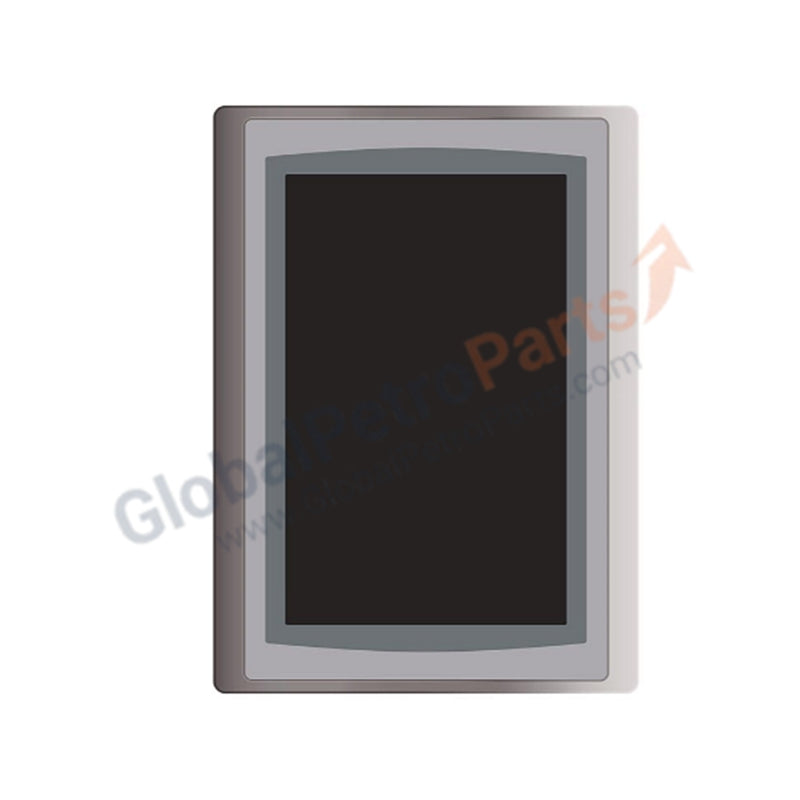

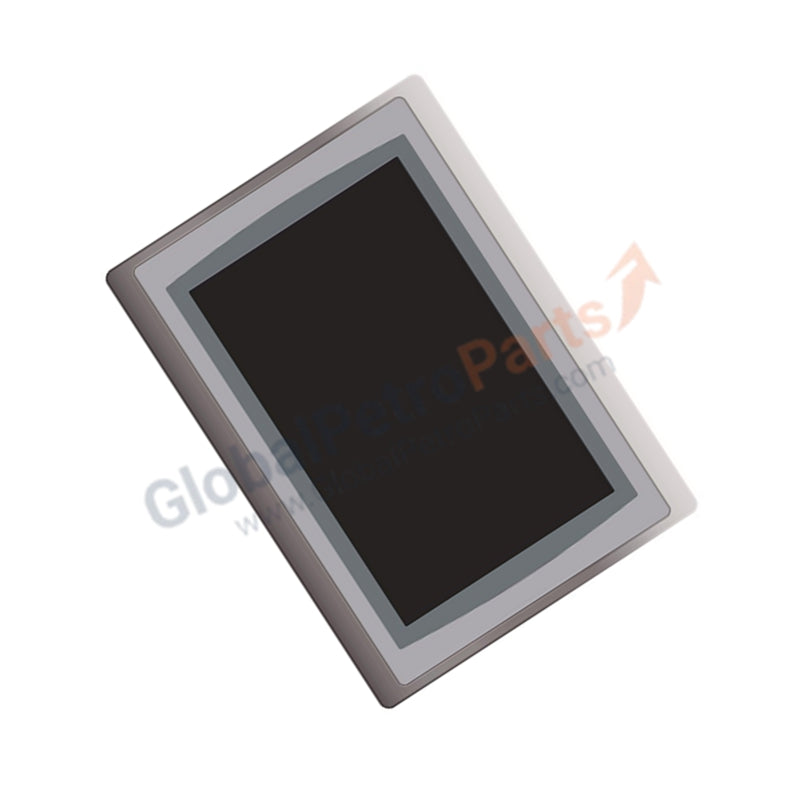

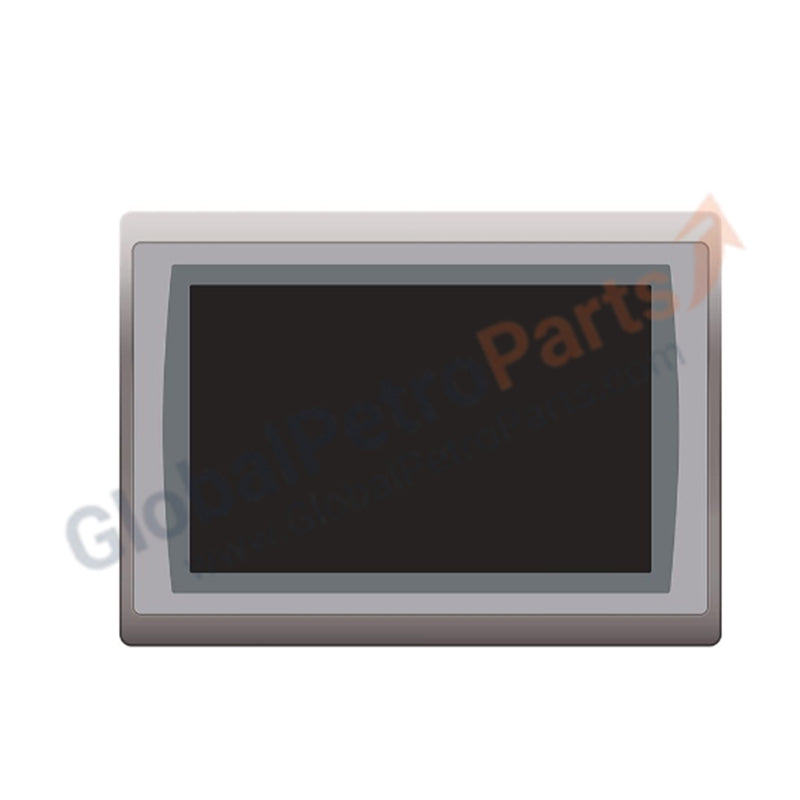

Allen Bradley 2711P-T12W22D9P PanelView Plus 7 Performance Terminal

Product Overview

The Allen Bradley 2711P-T12W22D9P functions as a premier human-machine interface (HMI) for high-demand industrial automation environments. Part of the PanelView Plus 7 Performance series, this 12.1-inch widescreen terminal provides advanced visualization for complex machinery and large-scale plant applications. We offer this unit as 100% Brand New and original factory sealed, ensuring peak processing power and modern connectivity for your control architecture.

Technical Specifications

The 2711P-T12W22D9P features high-definition graphics and a robust hardware profile:

Engineering Advantages

• Enhanced Data Visibility: The 1280 x 800 WXGA widescreen display provides significantly more real estate than standard 4:3 screens. This allows engineers to consolidate multiple diagnostic screens into a single view, improving operator situational awareness and reducing navigation time.

• Dual-Port Network Resilience: Two independent Ethernet ports support Device Level Ring (DLR) and linear topologies. This configuration ensures that the HMI maintains communication even if a single cable breaks, solving the critical industrial pain point of network downtime.

• Industrial-Grade Durability: The touchscreen requires a 100-gram operating force and carries a rating for 1 million presses. This rugged construction withstands heavy-handed use in harsh environments where operators may wear gloves or work with contaminants.

• Efficient System Integration: The Performance series hardware handles data-intensive FactoryTalk View Machine Edition (ME) applications with ease. The 512MB RAM eliminates lag during screen transitions and complex alarm processing, ensuring real-time feedback for critical system parameters.

FAQs

Q: Can the 2711P-T12W22D9P operate in a Device Level Ring (DLR) network?

A: Yes. The dual Ethernet ports allow the terminal to function as a node in a DLR topology. This setup provides a fault-tolerant network path, maintaining communication if a network segment fails.

Q: What software does this terminal require for application development?

A: Engineers use FactoryTalk View Machine Edition (ME) software to design and deploy HMI applications to the 2711P-T12W22D9P. The module supports version 8.0 and higher.

Q: How does the "W" in the part number affect the cutout dimensions?

A: The "W" signifies a Widescreen aspect ratio. If you are replacing a standard 12-inch 4:3 terminal, you will need to modify the panel cutout. This widescreen format offers superior modern graphics but requires a wider horizontal mounting space.

Q: Is this module suitable for 120V AC power environments?

A: No. This specific model (D9P) operates strictly on 18 to 30V DC. If only AC power is available in your cabinet, you must install a regulated 24V DC power supply, such as an Allen Bradley 1606 series module.
