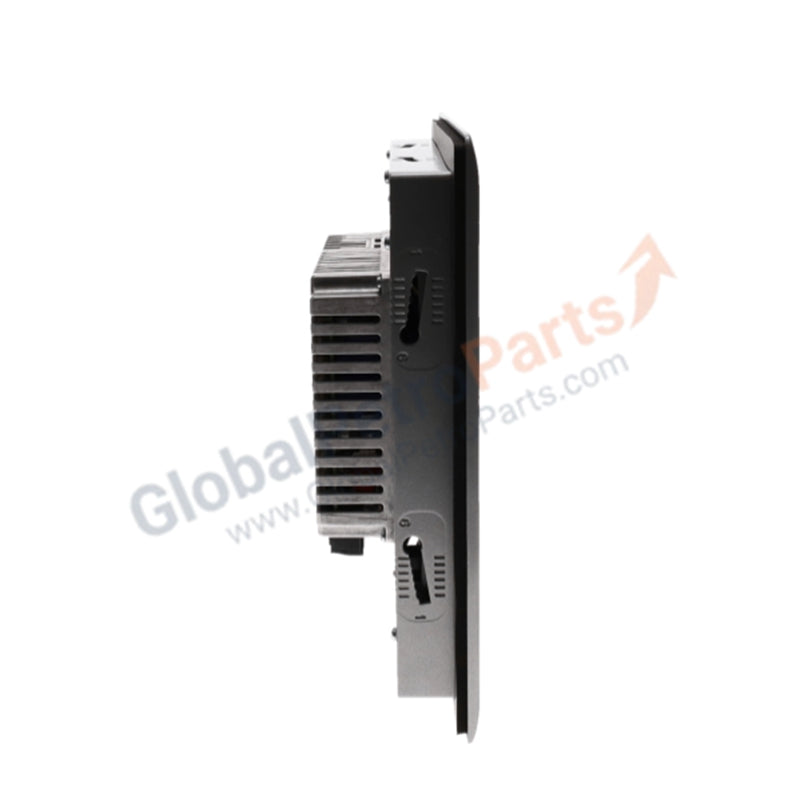

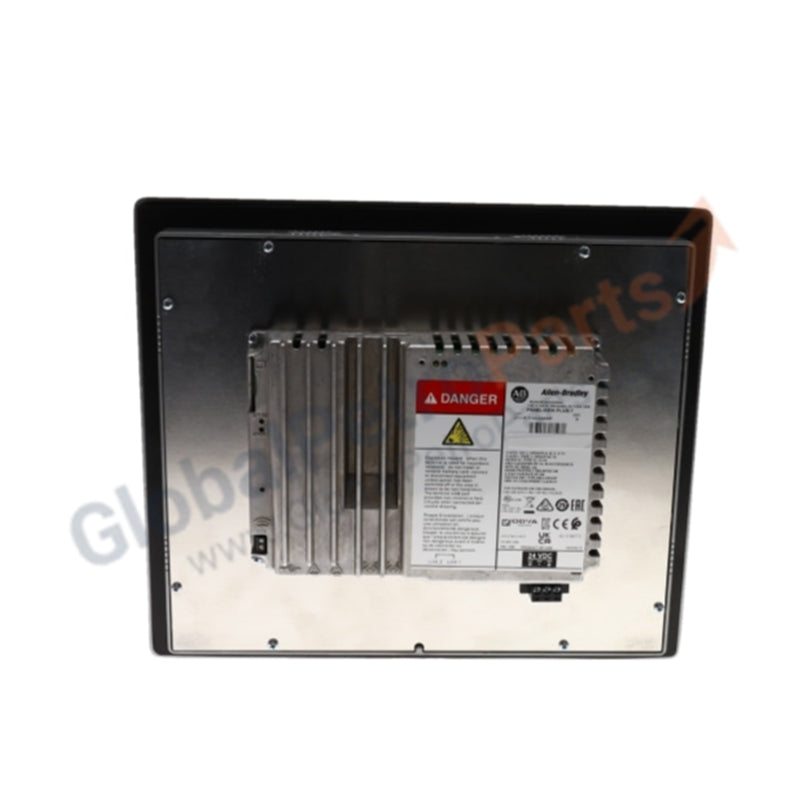

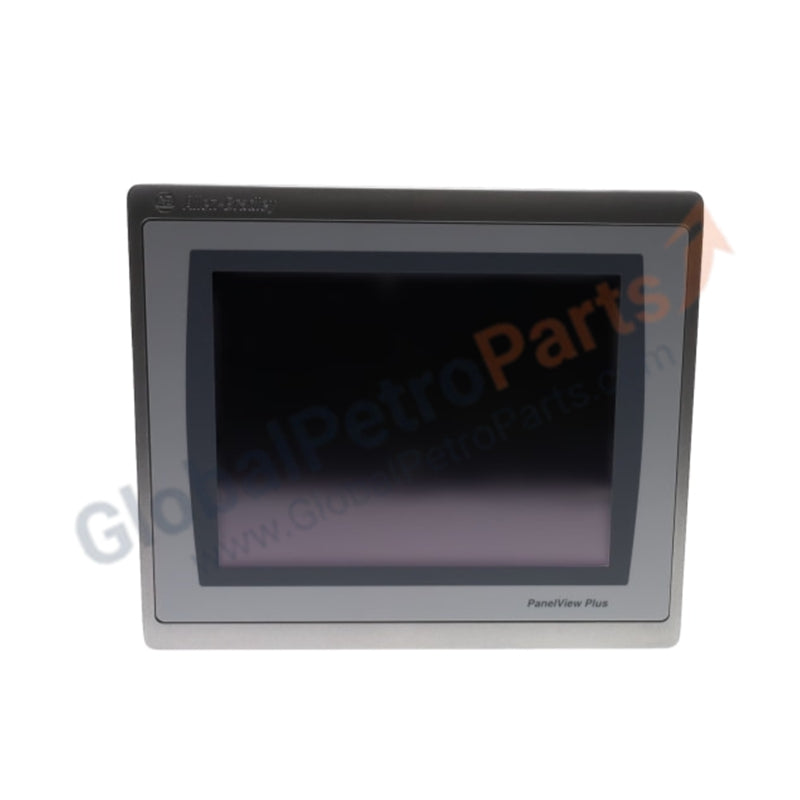

Allen Bradley 2711P-T15C22D9P PanelView Plus 7 Performance Operator Terminal

Product Overview

The Allen Bradley 2711P-T15C22D9P stands as a premier visualization solution within the PanelView Plus 7 Performance series. Designed for complex, data-intensive industrial applications, this 15-inch terminal provides high-resolution monitoring and control over extensive automated processes. It serves as the primary gateway for operators to interact with Logix-based control systems, offering robust hardware for 24/7 manufacturing environments. We supply this unit as 100% Brand New, arriving in original factory packaging to guarantee peak operational integrity.

Technical Specifications

Engineering Advantages

• High-Definition Process Visualization: The 1024 x 768 XGA resolution provides sharp, clear graphics that allow operators to distinguish intricate process details and complex alarm indicators at a glance. The 18-bit color depth ensures accurate rendering of HMI faceplates and trending charts.

• Streamlined Network Resilience: As a Performance-tier model, this unit features dual Ethernet ports. These ports support Device Level Ring (DLR) topologies, which maintain system connectivity even if a cable breaks, preventing costly downtime and improving network fault tolerance.

• Responsive Command Execution: The 512 MB RAM architecture minimizes screen transition latency. Even when hosting heavy graphical objects or extensive tag databases, the terminal processes commands instantly, ensuring the HMI keeps pace with high-speed PLC logic.

• Rugged Field Reliability: The touchscreen utilizes analog resistive technology, which allows operators to interact with the terminal while wearing industrial gloves. The wide 18 to 30V DC input range accommodates the typical voltage fluctuations found in heavy industrial power grids.

FAQs

• Is this 2711P-T15C22D9P unit a brand new product?

  Yes. We only sell 100% Brand New hardware. Every unit ships in its original, factory-sealed Allen Bradley box, ensuring you receive a product with zero previous runtime hours and full factory specifications.

• Can this terminal replace older PanelView Plus 6 models?

  Yes, this terminal serves as an upgrade path for legacy systems. However, ensure you verify the panel cutout dimensions, as the Plus 7 series may require a different mounting clearance or an adapter plate compared to older 1500-series units.

• What are the specific power requirements for this HMI?

  The unit requires a 24V DC power source. It draws approximately 2.1 Amps at 24V DC. Always use a dedicated, noise-filtered industrial power supply to ensure long-term stability and prevent electrical interference with the sensitive TFT display.

• Does this model support external peripherals?

  Yes. The Performance series includes USB host ports that allow you to connect external keyboards, mice, or flash drives for simplified data entry and historical log extraction.
