Allen-Bradley 2711P-T7C21D8S PanelView Plus 7 Standard 7-Inch Color HMI

Product Description

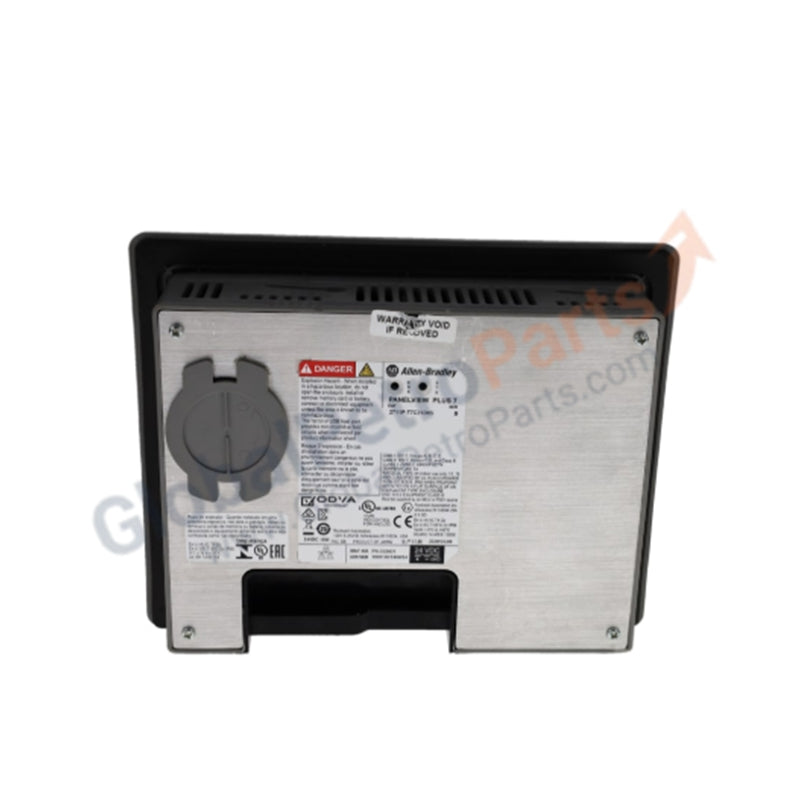

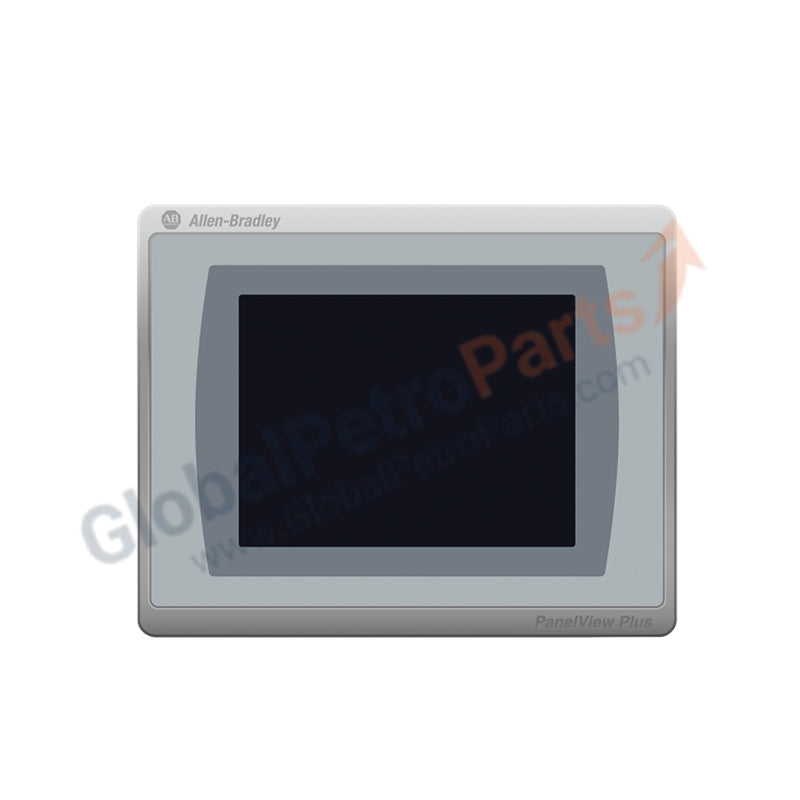

The 2711P-T7C21D8S is a high-definition operator interface terminal belonging to the Allen-Bradley PanelView Plus 7 Standard series. This model features a 7-inch wide-screen TFT color display, providing vibrant visualization and precise touch control for machine-level applications. It is engineered to streamline monitoring and data management within the FactoryTalk View Machine Edition (ME) ecosystem.

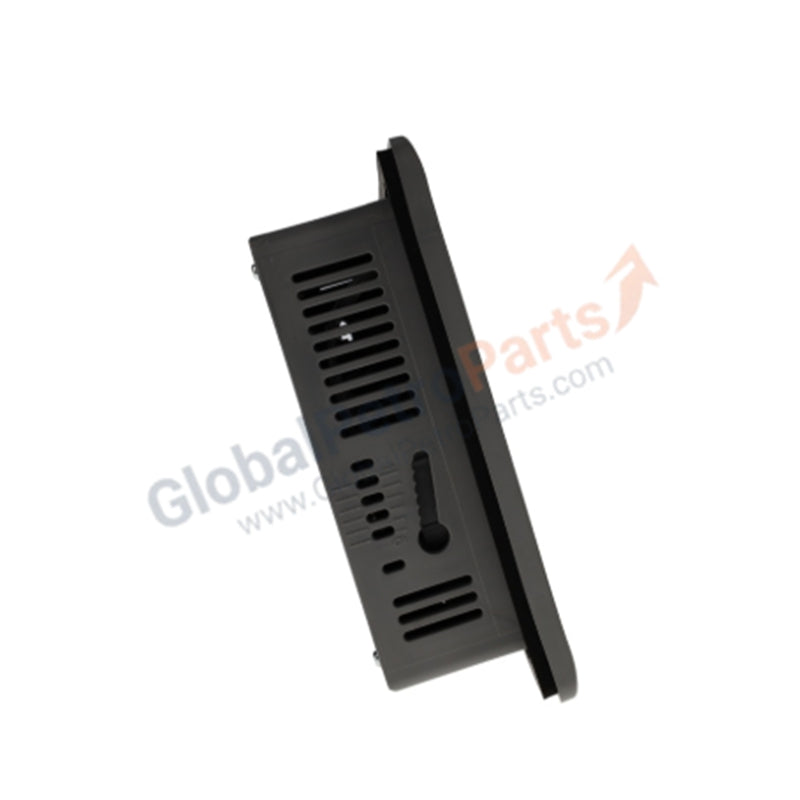

Designed for modern automation environments, the 2711P-T7C21D8S (Series A/B) includes an integrated Ethernet port that supports linear network topologies. Its slim, space-saving design allows for easy installation in shallow control cabinets, while the high-resolution screen supports complex graphics, alarm history, and real-time trending. This terminal is a reliable solution for OEMs and end-users requiring a professional, scalable interface for Logix-based control systems.

Detailed Technical Specifications

• Model Number: 2711P-T7C21D8S

• Brand: Allen-Bradley / Rockwell Automation

• Display Size: 7-inch Widescreen

• Display Type: Color Transflective TFT LCD

• Resolution: 800 x 480 WVGA

• Aspect Ratio: 5:3

• Operator Input: Analog Resistive Touchscreen

• Input Voltage: 18–30V DC (24V DC nominal)

• Power Consumption: 35 Watts (maximum)

• Memory: 512 MB RAM / 512 MB Storage

• Communication Port: 1 x RJ45 10/100 MB Ethernet

• USB Ports: 1 x USB Host, 1 x USB Device

• External Storage: SD Card Slot

• Operating Temperature: 0 to 55 degrees Celsius (32 to 131 degrees Fahrenheit)

• Enclosure Rating: NEMA 4X, IP66 (indoor use only)

• Net Weight: 0.79 kg (1.74 lbs)

Industrial Application Scenarios

The 2711P-T7C21D8S is ideal for medium-sized standalone machines such as palletizers, industrial ovens, and chemical dosing systems. Its widescreen format allows for more data to be displayed simultaneously, making it highly effective for process overview screens where multiple parameters like pressure, flow, and temperature must be monitored at once.

Professional FAQ

• Does the PanelView Plus 7 Standard support DLR (Device Level Ring)?

  The 2711P-T7C21D8S features a single Ethernet port and does not support DLR. For ring topology support, the PanelView Plus 7 Performance series is required.

• How many controllers can this terminal connect to?

  As a "Standard" model, the 2711P-T7C21D8S is designed to communicate with a single controller and supports a maximum of 100 screens and 500 alarms.
