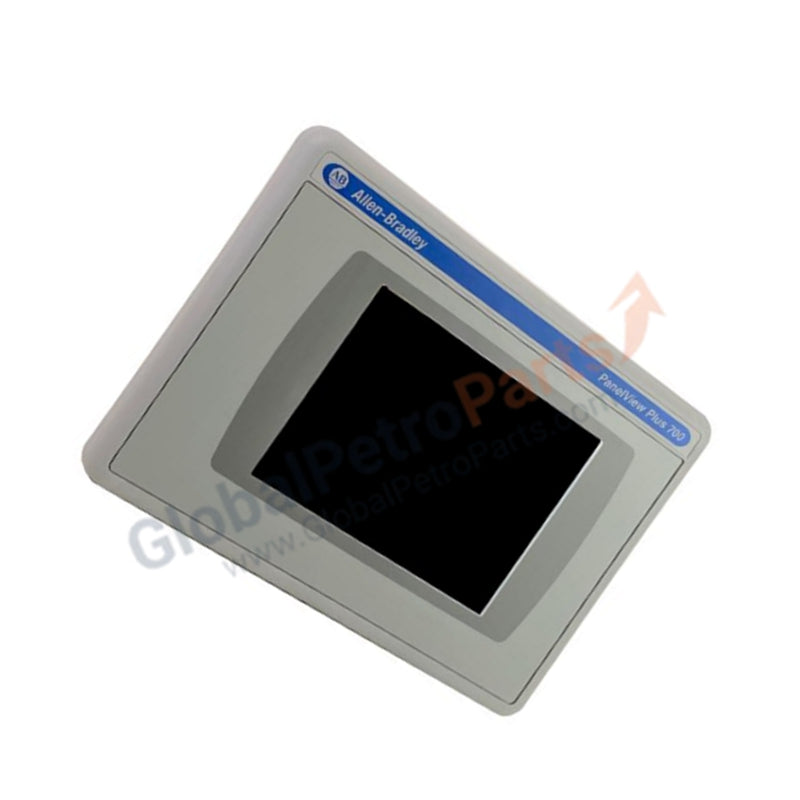

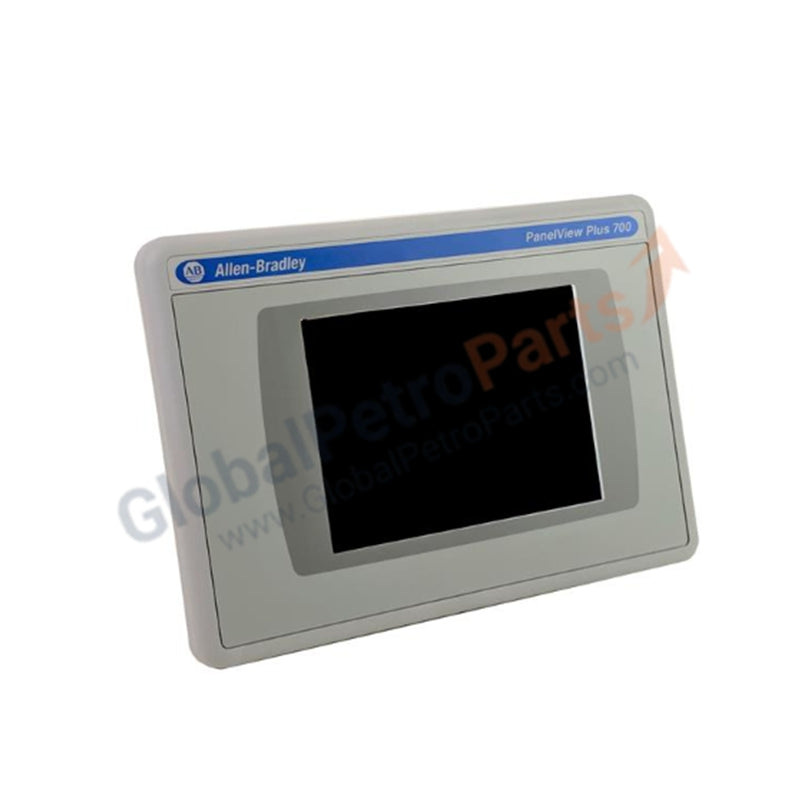

Allen-Bradley 2711P-T7C4D1 PanelView Plus 700 Touchscreen Color Operator Terminal

Product Overview

The Allen-Bradley 2711P-T7C4D1 serves as a high-integrity Human-Machine Interface (HMI) visualization node within the PanelView Plus 700 platform. This compact operator terminal processes real-time process data vectors and displays machine status schematics, giving floor technicians comprehensive, interactive control over localized manufacturing loops. We supply this premium industrial terminal exclusively in 100% brand new, original factory condition to eliminate touchscreen dead zones, avoid display degradation, and ensure immediate connection to active plant networks.

Technical Specifications

Engineering Advantages

• Maintains Touch Sensitivity Under Contamination: The rugged 6.5-inch resistive touchscreen matrix registers user inputs through pressure alone. This hardware layer enables operators to inputs variables, trigger macros, and clear system alarms accurately while wearing heavy leather or nitrile work gloves, even when grease, moisture, or dust coats the screen surface.

• Neutralizes Industrial High-Impact Shocks: The durable structural chassis absorbs severe floor vibrations and mechanical shocks up to 15 G over 11 ms. This extreme mechanical resistance prevents display driver disconnects and internal logic resets when mounting the terminal directly onto high-vibration equipment like rock crushers, stamping presses, and reciprocating compressors.

• Accommodates Drastic Voltage Fluctuations: The internal DC-to-DC power regulator accepts a wide input window stretching from 18V to 32V DC. This robust voltage tolerance shields the processing core from heavy brownouts, inductive switching surges, and battery-bank dropouts common on overloaded automation lines.

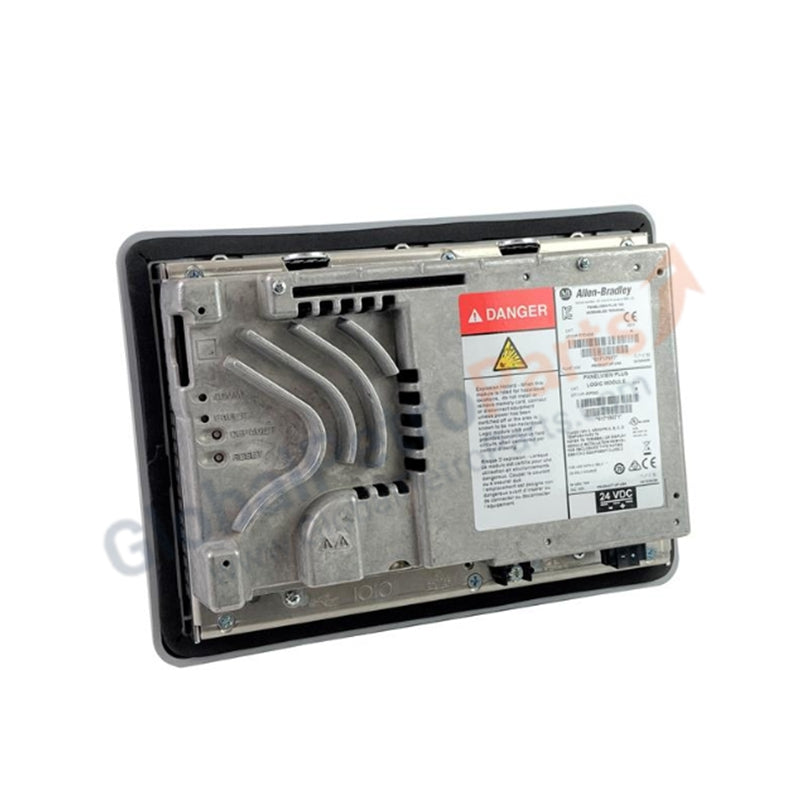

• Enables Quick Drop-In Cutout Retrofits: The 4.00 lbs hardware housing features a standard rear-clamp locking mechanism. Installers slide the unit directly into the existing PanelView 700 panel cutout, tighten the peripheral locking screws to compress the NEMA-rated sealing gasket, and reattach the native Ethernet or RS-232 cabling without modifying the cabinet steel layout.

FAQs

• Can I connect external peripheral devices directly to this HMI terminal?

  Yes. The 2711P-T7C4D1 includes two built-in USB host ports on the rear panel. These ports accept standard industrial USB keyboards, mice, and external flash drives, allowing field personnel to log process data matrices or transfer application files locally without opening a network connection.

• Is this HMI unit an official, factory-fresh Allen-Bradley product or a surplus rebuild?

  We guarantee this item is a 100% brand new, authentic factory-original piece. It ships directly inside its original manufacturer box with unblemished rear terminal pins, clear protective screen liners, and intact factory quality-assurance labels and serial numbers.

• What measures protect the 2711P-T7C4D1 from overheating inside enclosed panels?

  Mount the terminal vertically to allow natural convection currents to flow freely through the integrated chassis slots. Maintain at least 50 mm (2 inches) of clearance around all sides of the HMI housing, and verify that the ambient temperature inside the cabinet stays below the 55°C operational ceiling during peak summer cycles.
