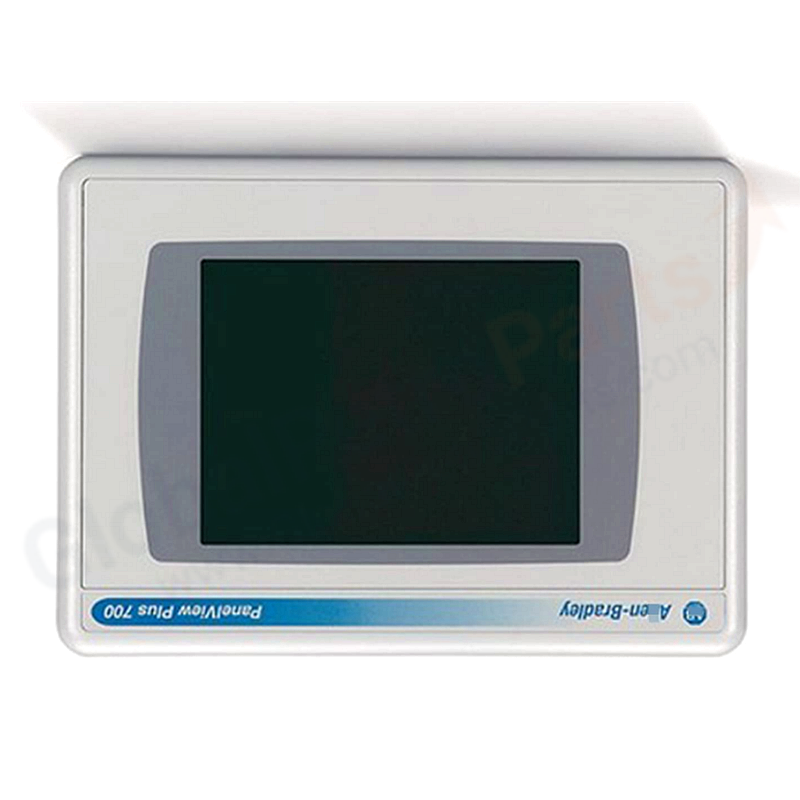

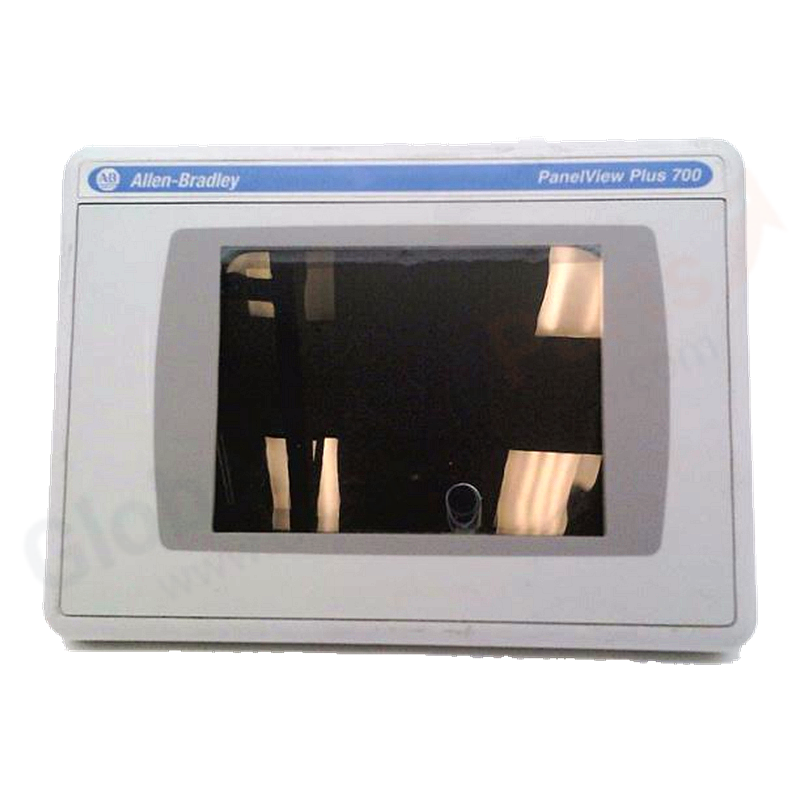

Allen-Bradley 2711P-T7C4D9 PanelView Plus 6 700, Color, Touch, Std

Product Overview

The Allen-Bradley 2711P-T7C4D9 is a PanelView Plus 6 700 operator terminal featuring a 7-inch color TFT touchscreen display with 640 × 480 VGA resolution. It provides EtherNet/IP and RS-232 communication, runs Windows CE 6.0 with Extended Features, and operates on 18–32V DC power for advanced HMI applications in industrial environments.

Key Specifications

• Product Family: PanelView Plus 6
• Model: PVP6 Standard Edition (Extended Features)
• Display Size: 7 inches (6.5 in. actual)
• Display Type: Color active-matrix TFT
• Resolution: 640 × 480 pixels (VGA), 18-bit color graphics
• Display Area: 132 × 99 mm (5.2 × 3.9 in)
• Input Type: Touchscreen (8-wire analog resistive)
• Touch Technology: Resistive touch, 1 million presses, 10–110 g operating force
• Communication: Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232
• USB Ports: 2 USB host ports (hot-swappable)
• SD Card Slot: Hot-swappable, supports 1784-SDx and 1784-SDHCx
• Power Input: 18–32V DC (24V DC nominal)
• Power Consumption: 70W max (2.9A @ 24V DC), 39W typical (1.6A @ 24V DC)
• Operating System: Windows CE 6.0 with Extended Features and Microsoft Office File Viewers
• Memory: 512 MB RAM, 512 MB nonvolatile memory (approx. 79 MB free user memory)
• Keypad Function Keys: 22 function keys (F1–F10, K1–K12) — on keypad/touch models
• Backlight: CCFL, 50,000 hr minimum at 25 °C, field replaceable
• Battery: CR2032 coin-cell lithium, 4-year minimum life, field replaceable
• Display Luminance: 300 cd/m²
• Enclosure Rating: NEMA 4X, 12, 13; IP54, IP65
• Operating Temperature: 0–55 °C (32–131 °F)
• Front Dimensions: 246 × 179 mm
• Depth: 55 mm
• Cutout Dimensions: 154 × 220 mm (6.08 × 8.67 in)
• Weight: Approx. 1.7 kg
• Shock: 15G operating, 30G non-operating @ 11 ms
• Vibration: 10–57 Hz (0.012" p-p), 57–500 Hz (2G peak)
• Altitude: 2000 m operating
• Software: FactoryTalk View Machine Edition (version 6.0+), FactoryTalk ViewPoint (version 1.2+)

Features & Benefits

• 7" Color TFT Display: VGA resolution with 18-bit color provides crisp, detailed process visualization
• Windows CE 6.0 Extended: Includes Internet Explorer, remote desktop, media player, and Office file viewers
• EtherNet/IP Integration: 10/100 Mbps Ethernet with Auto-MDI/MDI-X for seamless ControlLogix/CompactLogix connectivity
• Dual USB Host Ports: Hot-swappable connections for keyboards, mice, printers, and USB flash drives
• Hot-Swappable SD Card: Easy application backup, firmware updates, and data logging without downtime
• Field-Replaceable Backlight: 50,000-hour CCFL backlight minimizes maintenance costs
• Robust Environmental Design: NEMA 4X/IP65 front panel, 15G shock rating for harsh industrial conditions

Applications

• Machine control HMI panels
• Process visualization and monitoring
• Production line operator interfaces
• Batch control systems
• Remote equipment monitoring via FactoryTalk ViewPoint
• Water/wastewater treatment SCADA

Installation Guide

1. Panel Cutout: Prepare panel cutout of 154 × 220 mm (6.08 × 8.67 in) per the installation template.
2. Mounting: Secure terminal to panel using mounting clips. Torque to specification for NEMA 4X seal integrity.
3. Power Connection: Connect 24V DC (18–32V DC range). Maximum draw is 2.9A @ 24V DC (70W). Size wire and power supply accordingly.
4. Ethernet Setup: Connect Cat5e/Cat6 cable to the RJ45 port for EtherNet/IP communication and remote access.
5. RS-232 Configuration: Use the RS-232 port for DF1 serial, DH-485, or printer connections.
6. USB/SD Setup: Connect USB peripherals or insert SD card for application transfer and data logging.
7. Software Loading: Develop HMI application using FactoryTalk View Machine Edition (v6.0+) and download via Ethernet or removable media.
8. Remote Access: Configure FactoryTalk ViewPoint for web-based remote monitoring via standard browsers.

FAQ

Q: What is the difference between 2711P-T7C4D9 and 2711P-T7C4D8?
A: The "9" suffix indicates Windows CE 6.0 with Extended Features (includes Office viewers, IE, RDP). The "8" suffix indicates standard Windows CE 6.0 without extended features.

Q: Can I replace the backlight myself?
A: Yes. The CCFL backlight is field-replaceable. Refer to the maintenance manual for replacement procedure.

Q: What is the maximum power consumption?
A: Maximum power consumption is 70W (2.9A @ 24V DC). Typical operation draws 39W (1.6A @ 24V DC).

Q: Does this terminal support VNC server?
A: Yes. FactoryTalk ViewPoint software enables remote access to terminal displays via standard web browsers.

Selection Tips

• Verify panel cutout dimensions (154 × 220 mm) before ordering
• Size DC power supply for 2.9A maximum current draw at 24V
• Ensure EtherNet/IP network infrastructure is available
• Order FactoryTalk View Machine Edition (v6.0+) for application development
• Consider SD card (1784-SDx) for application backup and data logging
• For applications requiring keypad input, select 2711P-B7C4D9 instead
