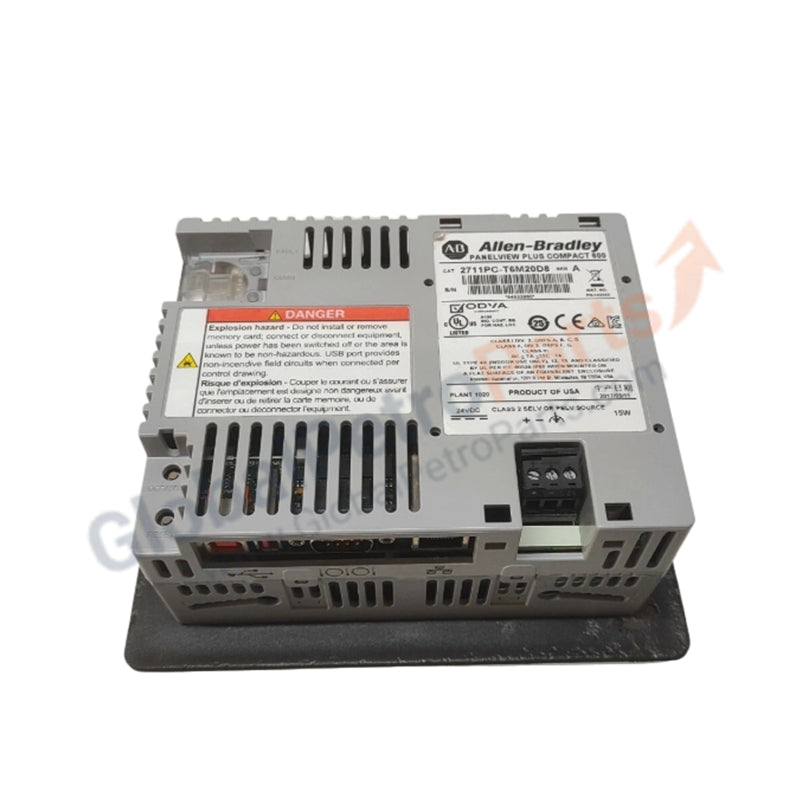

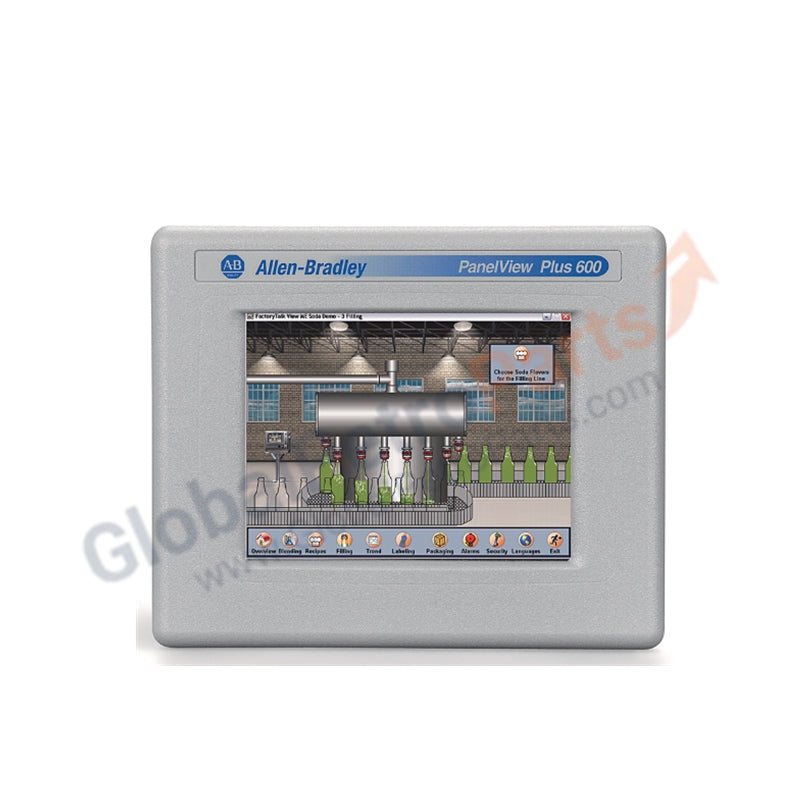

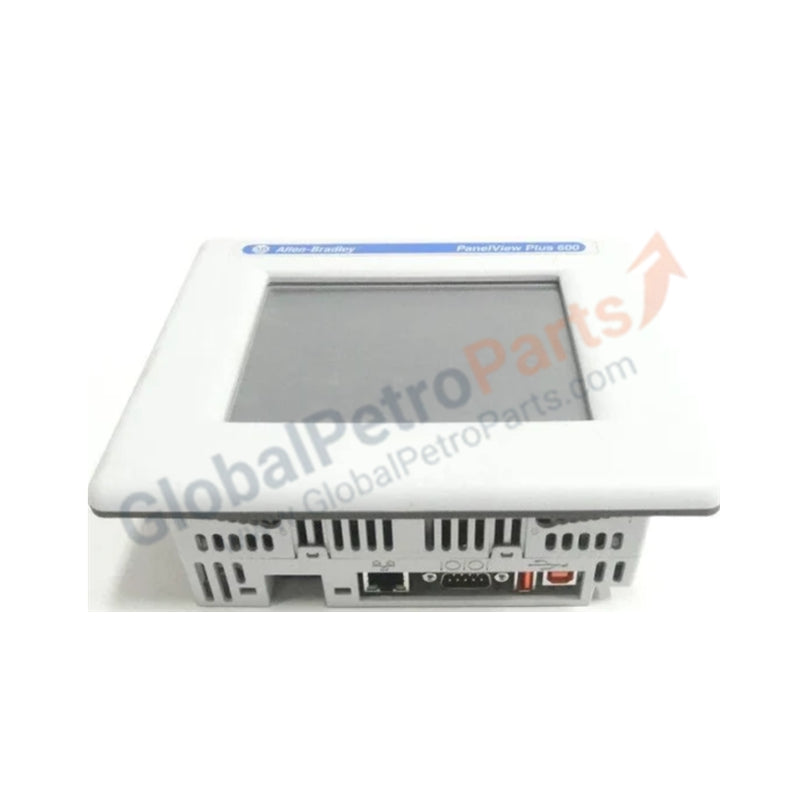

Allen-Bradley 2711PC-T6M20D Compact Graphic Terminal | PanelView Plus 6

Product Overview

The Allen-Bradley 2711PC-T6M20D serves as a specialized Human-Machine Interface (HMI) within the PanelView Plus 6 Compact series. This terminal targets mid-range applications that require robust visualization in a space-saving form factor. It utilizes a 5.5-inch grayscale passive matrix FSTN display, providing high-contrast text and graphics for industrial monitoring. We supply this unit as 100% Brand New, ensuring factory-sealed integrity for critical machine-level control.

Technical Specifications

The 2711PC-T6M20D integrates powerful processing with a rugged hardware profile:

Engineering Advantages

• Optimized for Harsh Environments: The IP66 and NEMA 4X ratings ensure the terminal withstands dust, debris, and high-pressure washdowns. This makes the 2711PC-T6M20D ideal for indoor industrial environments such as food processing or wastewater treatment.

• Responsive Touch Interface: The analog resistive touchscreen registers inputs with an operating force of only 10–110 g. This high sensitivity allows operators to interact with the system effectively while wearing industrial gloves, supporting over 1 million actuations.

• Dual Communication Channels: Integrated Ethernet and RS-232 ports allow the terminal to communicate simultaneously with various controllers. Use the Ethernet port for high-speed plant-wide networking and the RS-232 port for direct point-to-point connection to legacy SLC 500 or MicroLogix systems.

• Simplified Integration: The compact dimensions (6.0 x 7.28 x 2.86 in.) allow for installation in shallow control cabinets where standard HMIs fail to fit. The 24V DC input simplifies wiring by utilizing the same power bus as most industrial control circuits.

FAQs

• Q: Does this unit support color graphics?

• A: No. The 2711PC-T6M20D features a monochrome (grayscale) FSTN display. If your application requires color, you must select the "C" version (e.g., 2711PC-T6C20D).

• Q: Can I expand the number of displays beyond the factory limit?

• A: This "Compact" model restricts the application size to 25 displays and 200 alarm messages. For larger projects, we recommend the standard PanelView Plus 6 series.

• Q: Is the internal memory sufficient for modern FactoryTalk View ME projects?

• A: Yes. The 512 MB of nonvolatile memory and 256 MB of RAM provide ample overhead for complex grayscale graphics and logged data within the 25-display application limit.

• Q: How does the unit handle power fluctuations?

• A: The terminal accepts a wide input range of 18–30V DC. This tolerance ensures stable operation during common industrial voltage drops or battery-backed system discharges.
