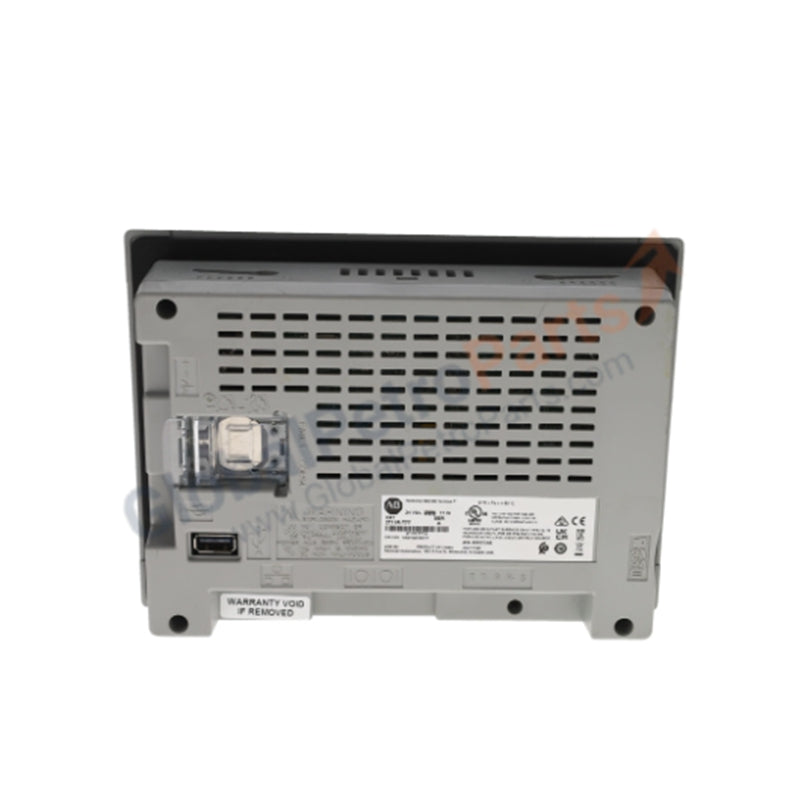

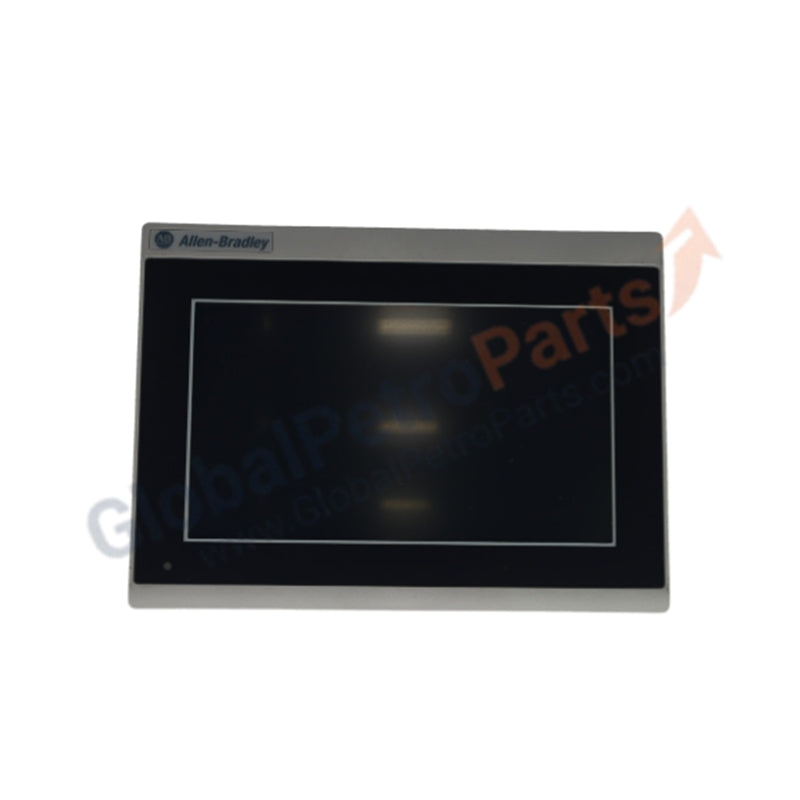

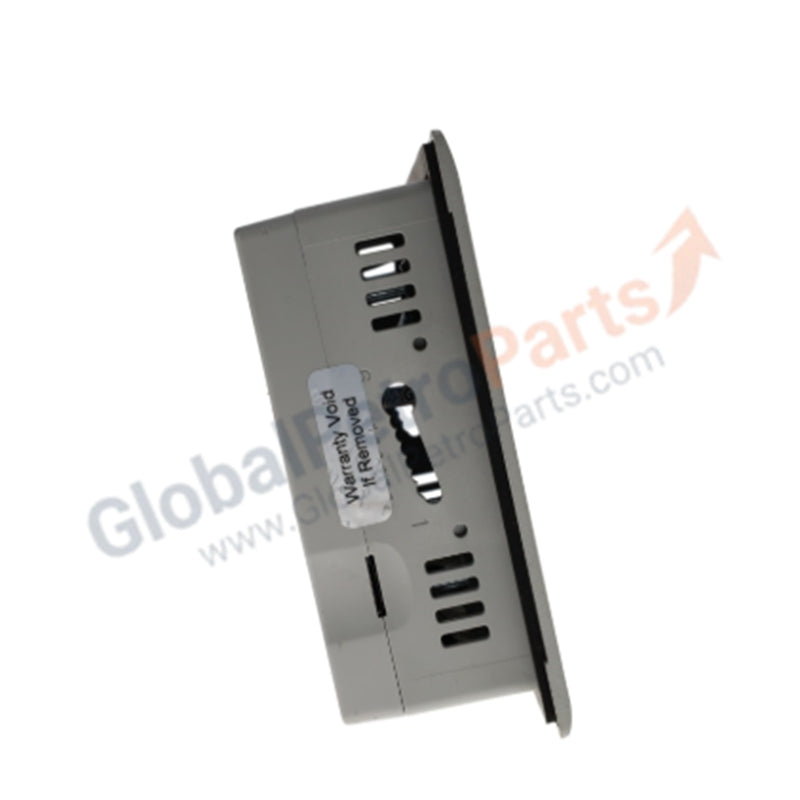

Allen-Bradley 2711R-T7T PanelView 800 7-Inch HMI Terminal

Product Description

The Allen-Bradley 2711R-T7T is a 7-inch Human-Machine Interface (HMI) terminal from the PanelView 800 series, designed for compact visualization and operator control in industrial automation systems. Featuring a widescreen TFT LCD display with long backlight life, Ethernet connectivity, and robust DC power input, it provides reliable monitoring and control in distributed applications.

Key Features

• Manufacturer: Rockwell Automation

• Brand: Allen-Bradley

• Model Number: 2711R-T7T

• Series: PanelView 800

• Type: HMI Terminal

• Display: 7-inch color transmissive TFT active matrix LCD, widescreen format

• Resolution: 480 × 272 pixels

• Backlight Life: Minimum 40,000 hours

• Programming Interface: Ethernet port

• Battery Life: Minimum 5 years at 25 °C (77 °F)

• Input Voltage Range: 18–32 VDC (nominal 24 VDC)

• Mounting: Panel installation

• Weight: 0.33 kg

Application Scenarios

• Operator Interfaces: Provides real-time visualization and control for machine operators

• Compact Systems: Ideal for small to mid-sized automation projects requiring efficient HMI solutions

• Legacy Integration: Compatible with PanelView 800 series for distributed control environments

• Energy-Saving Installations: Long backlight lifespan reduces maintenance requirements

FAQ

Q: What is the display resolution of the 2711R-T7T?  A: 480 × 272 pixels.

Q: How long is the backlight rated for?  A: At least 40,000 hours of operation.

Q: What is the input voltage range?  A: 18–32 VDC, with 24 VDC nominal.

Q: How does it compare to the 2711R-T10T model?  A: The 2711R-T7T has a 7-inch display, while the 2711R-T10T offers a larger 10-inch screen with higher resolution, making it better suited for applications requiring more detailed visualization.
