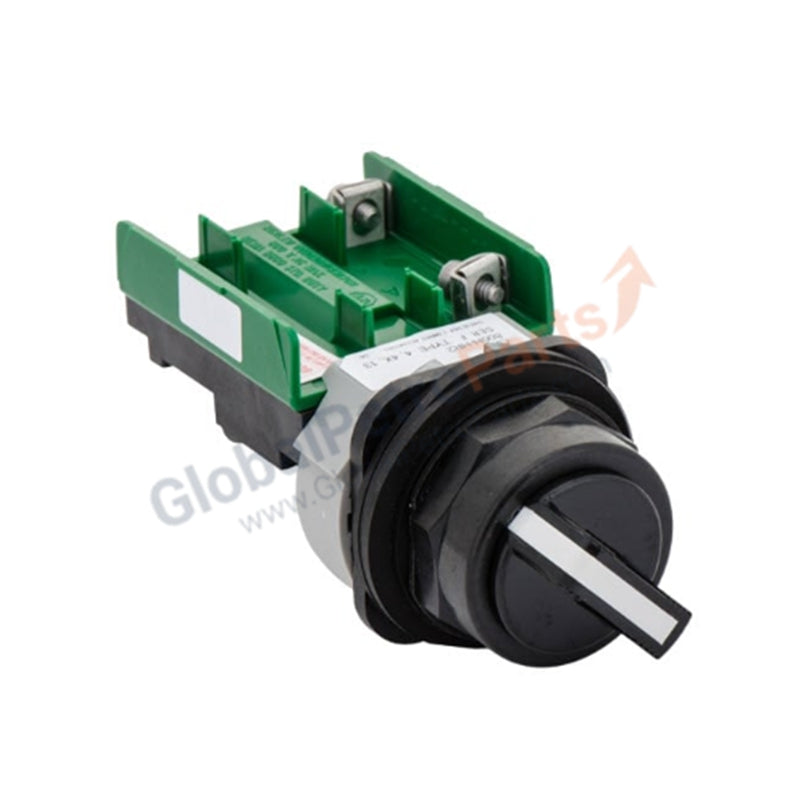

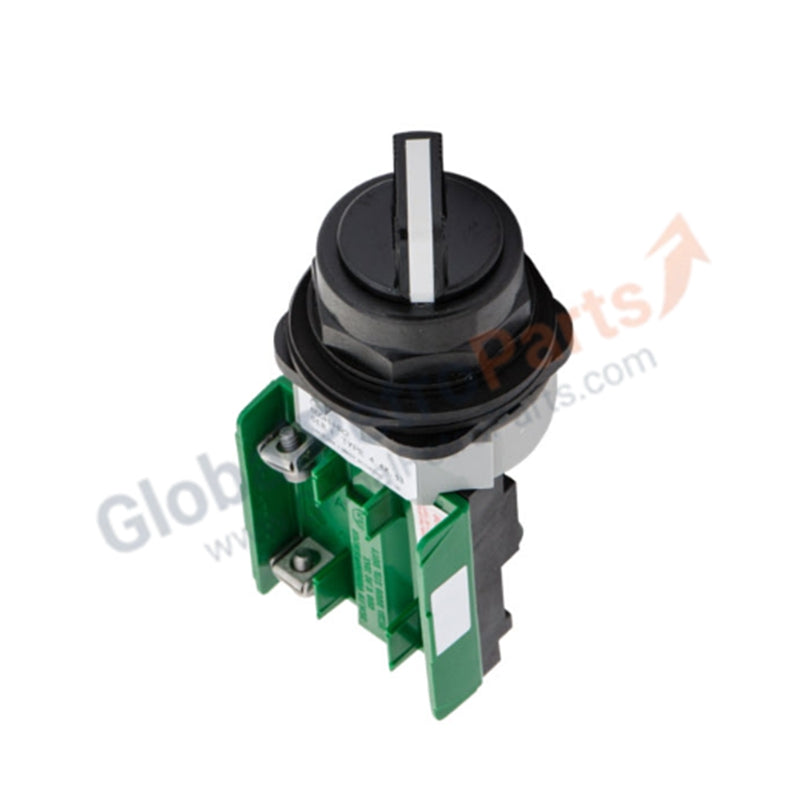

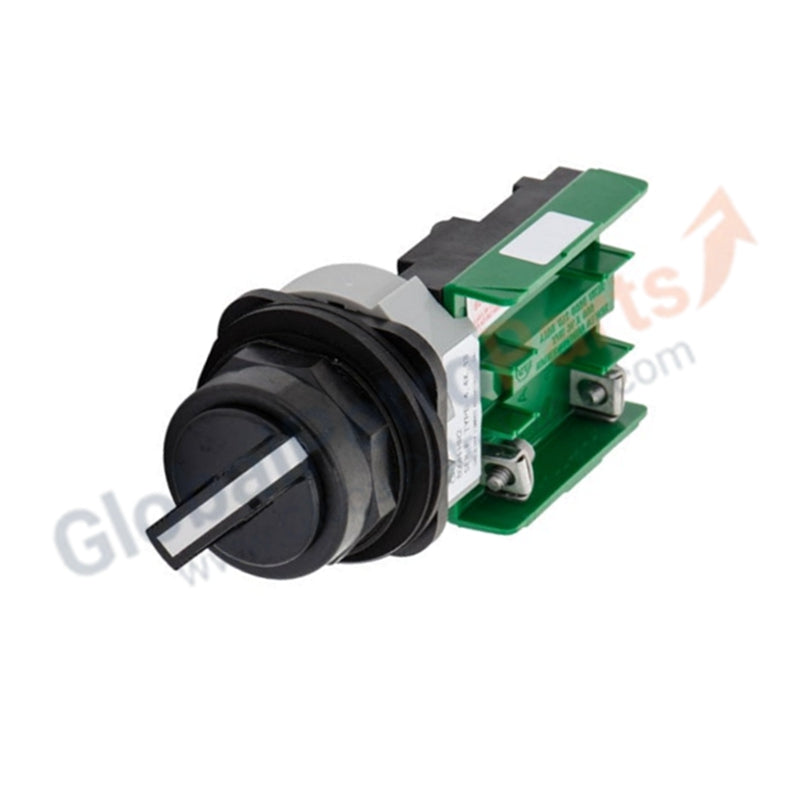

Allen Bradley 800H-HR2AP 800H Series 30.5mm 2-Position Selector Switch

Product Overview

The Allen Bradley 800H-HR2AP serves as a specialized, 30.5 mm non-illuminated selector switch engineered for high-reliability in corrosive or hazardous environments. This 2-position operator utilizes a maintained function, locking the switch into the chosen state until manually toggled by the operator. Built with a high-durability plastic housing, this unit withstands aggressive chemical exposure better than standard metal alternatives. We provide this component in 100% Brand New original condition, featuring a high-performance sealed contact block (1 NO 1 NC) for maximum circuit protection.

Technical Specifications

This selector switch integrates a heavy-duty thermoplastic build with sealed switching logic to prevent environmental ingress.

Engineering Advantages

• Sealed Contact Integrity: The "AP" suffix indicates a sealed contact block. This design prevents industrial dust, oil, and moisture from penetrating the contact surfaces. It ensures reliable electrical continuity even in atmospheres where airborne contaminants typically cause standard open-contact oxidation.

• Corrosion-Proof Construction: The 800H series utilizes reinforced plastic instead of metal. This material effectively handles salt spray, chemical washdowns, and humid environments, meeting stringent Type 4X and Type 13 requirements without the risk of rust or pitting.

• Maintained Position Stability: The internal mechanical detent maintains the selected position against severe machine vibration. This ensures your control logic remains stable and prevents accidental state changes caused by mechanical shock.

• High-Visibility White Insert: The white knob insert provides a sharp visual contrast against the black operator body. This allows plant personnel to verify the switch position from a distance, enhancing operational safety and efficiency.

FAQs

• What makes the "Sealed Switch" better than a standard contact block?

  The sealed switch within the 800H-HR2AP protects the gold or silver contacts from the external environment. This significantly reduces the risk of high-resistance faults caused by chemical vapors or conductive dust, making it the superior choice for critical process control.

• Can I install this switch in a standard 800T (metal) 30.5 mm hole?

  Yes. The 800H-HR2AP uses the standard 30.5 mm mounting diameter. It retrofits directly into existing control panels that currently house 800T metal operators, allowing for an immediate upgrade to corrosion-resistant hardware.

• How does this module handle wet environments?

  The plastic housing and internal gaskets carry a Type 4/4X rating. This means the unit withstands direct water hosedowns and remains functional in outdoor or high-moisture processing areas.

• Is this a Brand New unit?

  Absolutely. Although the manufacturer has shifted the lifecycle status of this specific model, we supply this unit as 100% Brand New original stock. This ensures you receive a factory-fresh operator with zero mechanical wear and pristine contact integrity.
