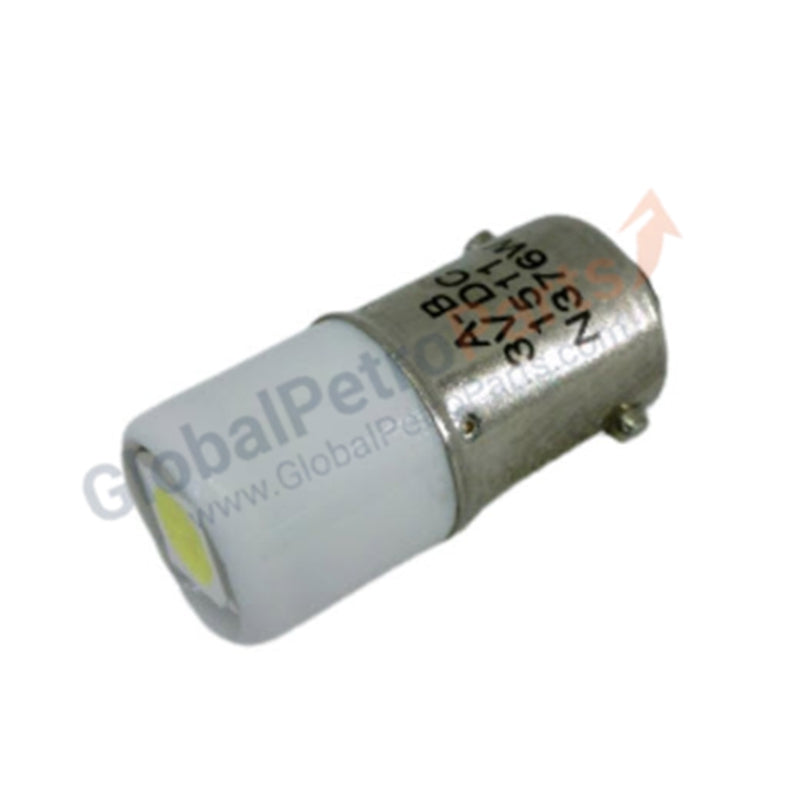

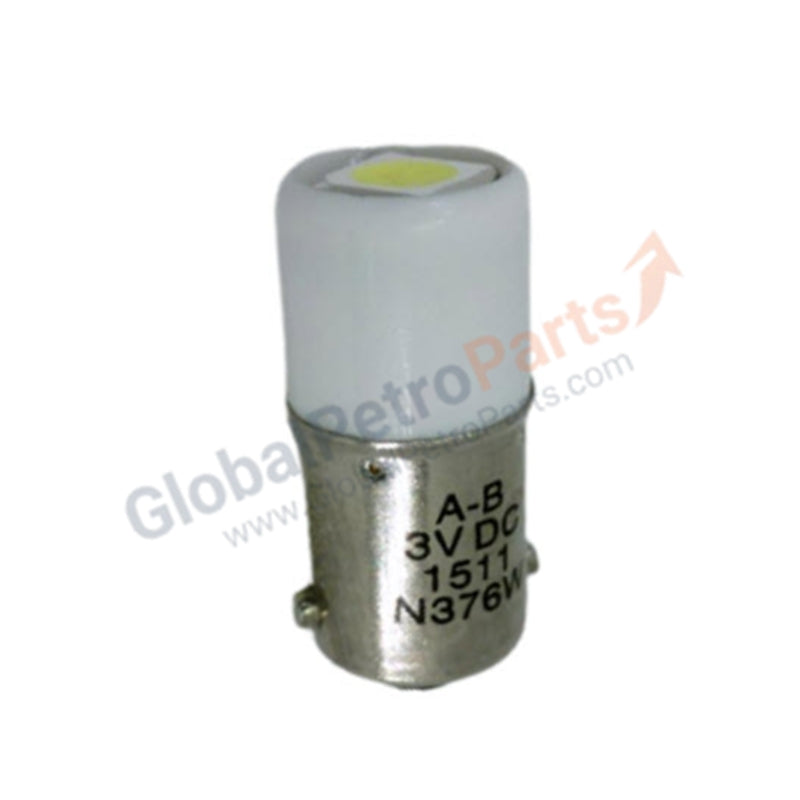

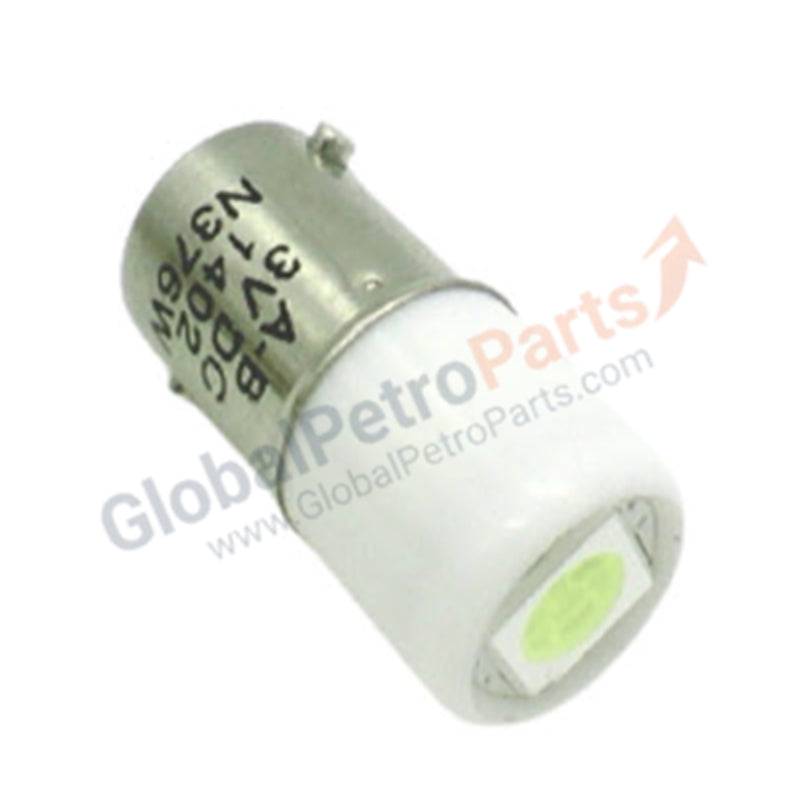

Allen Bradley 800T-N376W Miniature LED Replacement Lamp | 800T Series

Product Overview

The Allen Bradley 800T-N376W serves as a high-efficiency miniature LED replacement lamp specifically engineered for the 800T and 800H 30mm product lines. This 3V DC indicator provides high-visibility illumination for pilot lights, illuminated push buttons, and selector switches. We supply this component in 100% Brand New original condition to ensure maximum service life and consistent brightness across your industrial control panels.

Technical Specifications

This LED lamp replaces traditional incandescent bulbs to reduce power consumption and heat generation within the operator interface.

Engineering Advantages

• Solid-State Durability: The LED architecture withstands heavy industrial vibration and mechanical shock that frequently cause traditional filament bulbs to fail. This ensures continuous status indication on high-impact machinery.

• Low Thermal Emission: This lamp generates minimal heat compared to incandescent versions. This protects the plastic lenses of pilot lights from heat-induced discoloration or warping over extended operational periods.

• Reduced Power Consumption: The low current draw (max 0.13 A) reduces the overall load on control transformers, allowing for higher densities of illuminated devices within a single control circuit.

• Optimized Visibility: The "W" designation typically signifies a white output, which provides clear, crisp illumination through various colored lenses (Red, Green, Amber, Blue) without distorting the intended signal color.

FAQs

• Can I use the 800T-N376W in older 800T 30mm pilot lights?

  Yes. This lamp serves as a direct replacement for miniature bayonet-style bulbs used in the Allen Bradley 800T and 800H series. It retrofits easily into existing sockets without requiring circuit modifications.

• Does this LED require a specific polarity for installation?

  As a DC component, correct orientation ensures proper operation. If the lamp fails to illuminate upon installation, rotate the bulb 180 degrees in the socket to align the polarity with your 3V DC supply.

• How does this lamp improve maintenance cycles?

  LEDs last significantly longer than incandescent bulbs. Installing a Brand New 800T-N376W reduces the frequency of "lamp out" events, minimizing downtime and labor costs associated with routine bulb replacement.

• What is the correct way to handle the lamp during installation?

  Ensure you isolate the power to the pilot device before replacement. Use a small rubber bulb puller or a soft cloth to seat the lamp firmly into the bayonet base, preventing oily residues from accumulating on the LED surface.
