Allen Bradley 80190-580-01-R Drive Processor Control Module

Product Overview

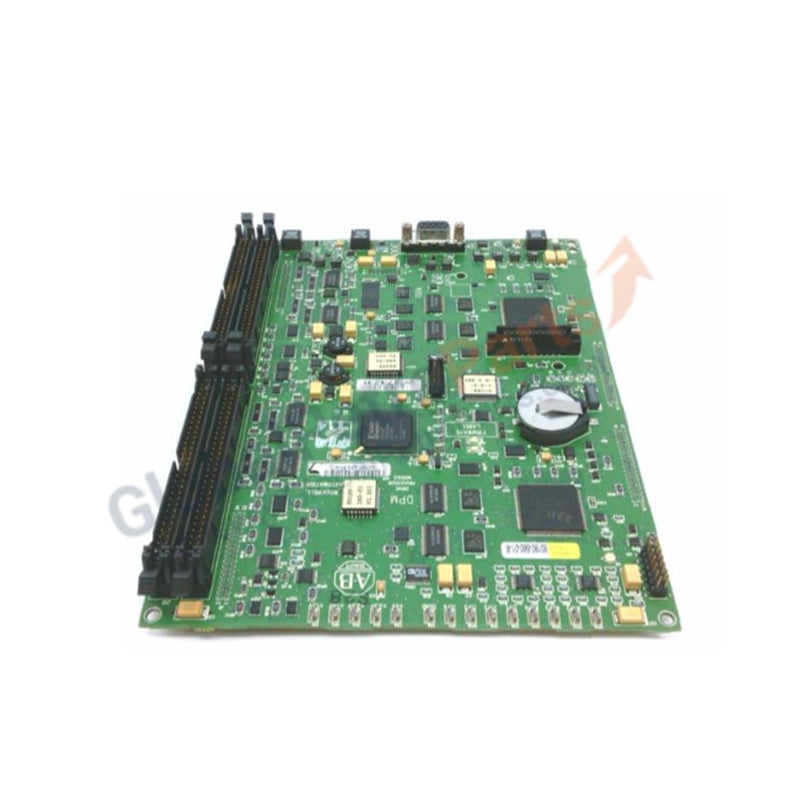

The Allen Bradley 80190-580-01-R serves as a high-performance Drive Processor Module designed for advanced logic execution and signal regulation in industrial machine control environments. This control board orchestrates complex drive parameters and manages real-time data flow between the central CPU and peripheral I/O ports. We supply this unit as 100% Brand New and Factory Original, ensuring your automated systems benefit from peak computational accuracy and the full lifecycle of a zero-hour electronic assembly.

Technical Specifications

The 80190-580-01-R utilizes a high-density PCB architecture to maintain signal integrity across critical control loops:

Engineering Advantages

• High-Speed Logic Processing: The 80190-580-01-R executes drive-specific algorithms at microsecond intervals. This rapid processing ensures the system responds instantly to load variations, maintaining precise motor speed and torque regulation.

• Robust Interface Connectivity: The four integrated male connectors and 14-pin header provide secure, vibration-resistant attachment points for ribbon cables and wiring harnesses. This mechanical stability prevents intermittent signal loss in high-vibration manufacturing zones.

• EMI/RFI Noise Suppression: The multi-layer PCB design incorporates dedicated grounding planes. These planes shield the sensitive processor logic from the high-frequency electromagnetic interference typically generated by nearby high-power switching components in drive cabinets.

• Direct Chassis Mounting: The open-style, mountable architecture facilitates easy installation into existing control racks or customized enclosures. The pre-drilled mounting holes allow for rigid attachment, ensuring optimal thermal dissipation through the chassis frame.

• Seamless Integration: This module matches the exact electrical specifications of the base 8019058001 series. It functions as a drop-in replacement, requiring no hardware modifications to existing PLC racks or control assemblies.

FAQs

• Is the 80190-580-01-R I receive truly Brand New?

  Yes. We guarantee that this processor module is 100% Brand New and arrives in its original factory anti-static packaging. It has never been installed, commissioned, or repaired, ensuring maximum MTBF (Mean Time Between Failures).

• What is the function of the 14-pin header?

  The 14-pin header facilitates the transmission of low-level logic signals and diagnostic data between the processor board and external monitoring interfaces or auxiliary control modules.

• Does this module require specific ESD precautions during installation?

  Absolutely. Always wear a grounded ESD wrist strap and handle the board only by its edges. The on-board CMOS components remain highly sensitive to electrostatic discharge, which can cause latent failures if handled improperly.

• Can this board replace an older 8019058001 model?

  Yes. The "R" suffix typically denotes a revised or RoHS-compliant version that maintains 100% backward compatibility with the original non-R part numbers, allowing for a seamless hardware upgrade.
